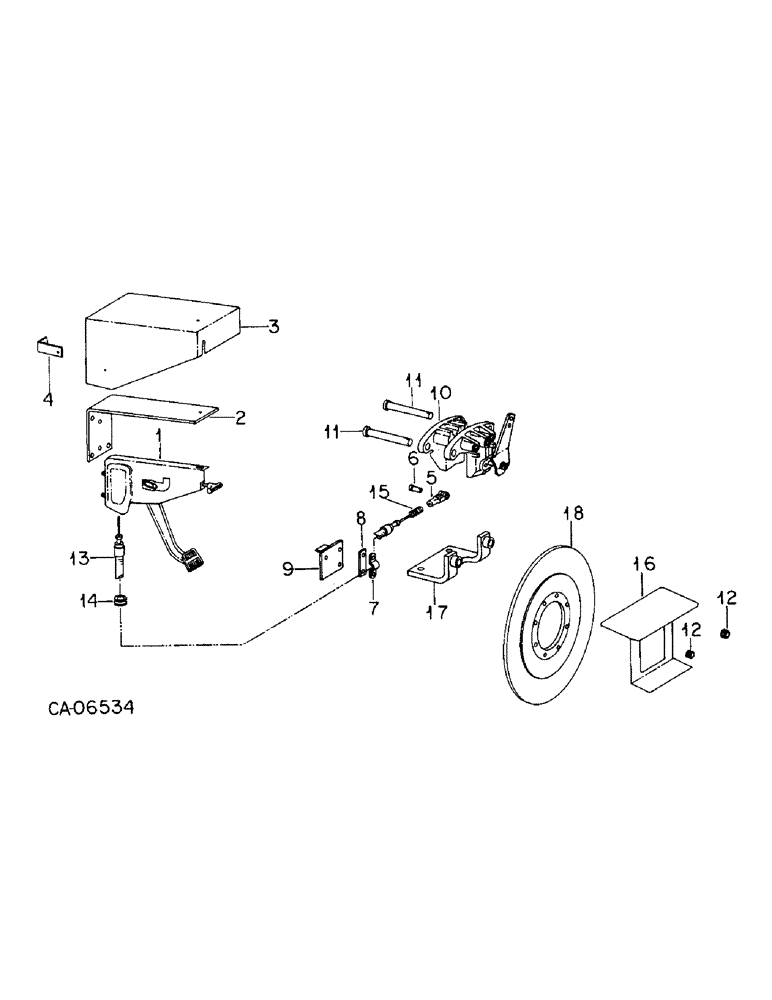

Запчасти Case IH 4586 (04-08) - BRAKES, PARKING BRAKE, 4586 TRACTORS WITH SERIAL NO. 1501 AND ABOVE (5.1) - BRAKES

1

357445C92

LEVER

PEDAL ASSY, brake

1шт.

148151

COTTER PIN,Hairpin, 716"

CLIP, retainer

1шт.

2

135855C1

SUPPORT

park brake pedal

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 flange lock

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

3

142086C92

COVER ASSY, w/product graphic, park brake, Replaces 135856C1

1шт.

111480C3

DECAL

PRODUCT GRAPHIC, caution general safety

1шт.

4

135865C1

SUPPORT

cover

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 flange lock

2шт.

5

144243

CLEVIS

3/8-24 C-Z adj rod end

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

6

138078

PIN, 3/8 x 1.060 undn clevis

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

7

101763R1

CLAMP

park brake cable

1шт.

8

134613C1

BAR

cable clamp

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

2шт.

9

138810C1

LARGE PLATE

BAR ASSY, cable anchor

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

10

146909C91

CALIPER

ASSY, hand brake, Replaces 69896C95, For components see list of parts under detail of hand brake caliper this group

1шт.

11

25128R1

PIN,5/8" x 3 3/4"

PIN, 5/8 x 3-3/4 znd hd

2шт.

131016

WASHER

.656 x 1.312 x .074

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

12

110497C1

GROMMET

1/2 rubber

2шт.

13

129135C91

CABLE ASSY.

CABLE ASSY, park brake

1шт.

14

41351V

GROMMET, brake cable

1шт.

15

70221C1

SPRING

brake return

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

16

NOT REQUIRED THIS APPLICATION

1шт.

17

104984C1

SUPPORT

ASSY, park brake

1шт.

18

114333C1

DISC

PLATE, brake disc

1шт.

80594R1

BOLT,Hex, 3/8" - 24 x 1", Gr 8

3/8-NF x 1 type 8

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.
