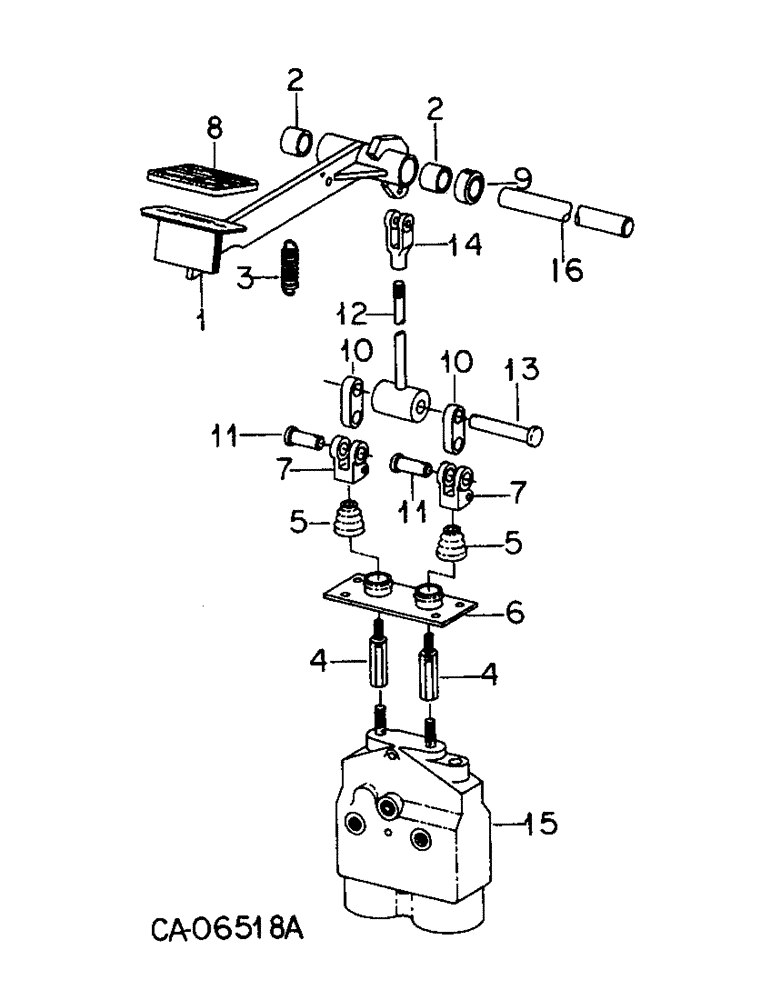

Запчасти Case IH 4586 (04-06) - BRAKES, MASTER BRAKE CONTROLS, 4586 TRACTORS WITH SERIAL NO. 1501 AND ABOVE (5.1) - BRAKES

1

134577C91

PEDAL ASSY.

PEDAL ASSY, brake w/brg, Includes ref. no. 2

1шт.

28190R1

BOLT

3/8 x 2-1/4 phc type 5

1шт.

28191R1

NUT

3/8 phc jam type 5

1шт.

2

124658C1

BUSHING

brake pedal

2шт.

3

134581C1

SPRING

pedal return

1шт.

4

134572C1

BOLT,Extension, Hex, 7/16" - 20

7/16-20 hex-extension

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

120395

WASHER

.469 x .922 x .051

2шт.

5

393071R2

BELLOWS

BOOT, brake valve

2шт.

6

134867C1

PLATE

ASSY, brake linkage boot

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4 type 5

4шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

7

384083R2

YOKE

YOKE, brake operation

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

109656C1

BRAKE PAD

PAD, pedal

1шт.

9

610513R1

COLLAR

COLLAR

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 pln c/pt hdl/hs set

1шт.

10

384082R1

LINK

brake operating

2шт.

11

21263R1

CLEVIS PIN,1/2" x 1 11/16'"

PIN, 1/2 x 1.688 clevis

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

12

134570C1

ROD

ASSY, brake control

1шт.

13

21994R1

HEADED PIN,1/2" x 3 1/4"

PIN, 1/2 x 3.250 hd type 1

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

14

144243

CLEVIS

3/8-24 znd adj rod end

1шт.

120369

NUT,3/8"-24, G5

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1.060 clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

15

72807C93

VALVE

PACKAGE, power brake valve, Also order orifice plate, 384501R1, For list of serviceable parts see hyd power brake valve group 10

1шт.

384501R1

PLATE

orifice

1шт.

16

124660C1

SHAFT

clutch & brake pedal support

1шт.
