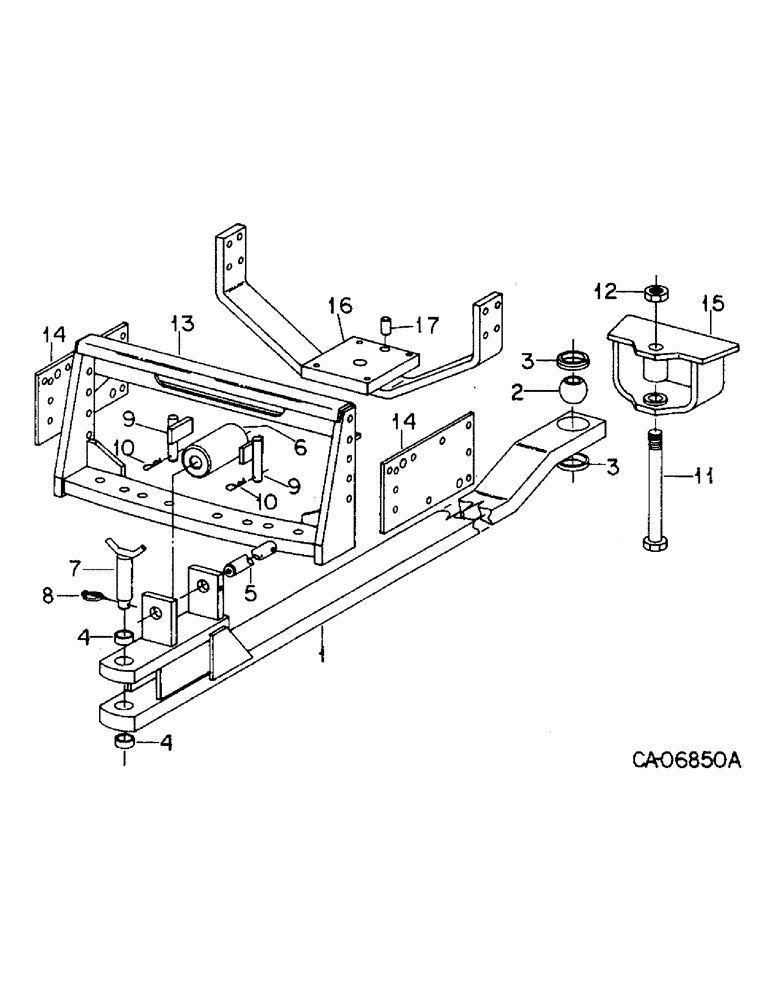

Запчасти Case IH 4586 (09-06) - FRAME, ARTICULATION PIVOT DRAWBAR ATTACHMENT, 4586 TRACTORS WITH SERIAL NO. 2501 AND ABOVE (12) - FRAME

1

138074C91

BAR

ASSY, drawbar, Includes ref. no. 2, 3 &4

1шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

142522C1

BALL

uniball

1шт.

3

142524C1

HOUSING

uniball

2шт.

4

114124C1

BUSHING

drawbar

2шт.

5

138078C1

PIN

roller

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8-27 pft str lub

1шт.

6

138079C1

DRAWBAR

ROLLER, drawbar

1шт.

7

140630C1

PIN ASSY.

PIN ASSY, drawbar rear

1шт.

8

621006C1

PIN

ASSY, klik

1шт.

9

138080C1

PIN ASSY.

PIN ASSY, drawbar stop

2шт.

10

520175R1

CLIP

PIN, quick attachable cot

2шт.

11

138088C1

BOLT,1 3/4" - 12 x 358mm, W/ Nut

BOLT, drawbar frt pivot

1шт.

12

68603C1

NUT

1-3/4-12 pivot pin

1шт.

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

Cup point Hex Soc, 1/4"-20 x 3/8"

1шт.

13

138083C1

SUPPORT

ASSY, drawbar

1шт.

14

114170C2

LARGE PLATE

PLATE, mounting

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

6шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

12шт.

280954

NUT,3/4"-10, G5

22шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

44шт.

15

138075C1

LARGE PLATE

PLATE ASSY, drawbar frt pivot

1шт.

16

145310C1

SUPPORT

ASSY, rear axle

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

8шт.

17

68589C1

PIN

., 1 x 1-7/8 dowel

1шт.
