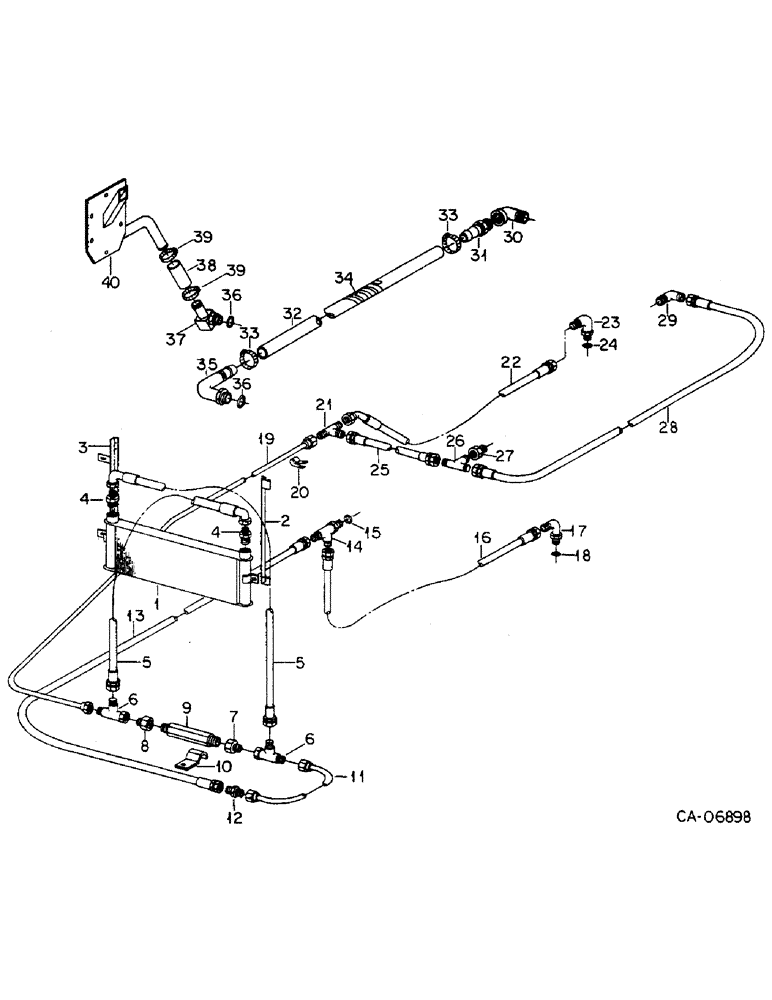

Запчасти Case IH 4586 (10-14) - HYDRAULICS, OIL COOLER AND TRANSMISSION CONNECTIONS, 4586 TRACTORS WITH SERIAL NO. 1501 AND ABOVE (07) - HYDRAULICS

1

71903C1

COOLER

ASSY, hydraulic oil

1шт.

2

118820C1

ANGLE

ASSY, oil cooler LH

1шт.

3

118823C1

ANGLE

ASSY, oil cooler RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

4

343804R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 1-1/16-12 37 deg hyd flared tube reducer

2шт.

5

116663C1

HOSE ASSY.

HOSE ASSY, oil cooler

2шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, tie

2шт.

6

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14 three way 37 deg hyd flared tube

2шт.

7

483594R2

UNION

reducer 1.0 to 5/8 oil cooler by-pass valve

1шт.

8

1304639C1

REDUCER

UNION, reducer 3/4 to 5/8 oil cooler by-pass valve, Replaces 118913C1

1шт.

9

110578C91

VALVE

ASSY, oil cooler relief

1шт.

10

116687C1

BRACKET

CLAMP, oil cooler relief valve

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

11

132727C1

TUBE

ASSY, brake regulator to oil cooler

1шт.

12

9402788

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8-14 37 deg hyd fld tube brake regulator hose to oil cooler tube

1шт.

13

132726C2

HOSE

ASSY, Brake Regulator to Oil Cooler Tube "A"

1шт.

14

1250268C1

TEE ASSY, lube and metering, str thd 90 deg brake regulator

1шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

16

116667C1

HOSE

ASSY, brake, Serial Range: regulator-dump

1шт.

17

119054C1

ELBOW

ASSY, lub & metering front axle top cover

1шт.

17

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube

1шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

19

124947C1

TUBE

ASSY, oil cooler by-pass to transmission secondary tee

1шт.

20

299410C1

CLAMP,5/8", Insul, 1/4" Bolt

5/8 closed tube

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

21

9420983

TEE, 7/8-14 37 deg hyd flared tube three way transmission secondary

1шт.

22

129198C1

HOSE ASSY.

HOSE ASSY, transmission secondary tee to frt axle top cover rear port

1шт.

23

119054C1

ELBOW

ASSY, lub & metering front axle top cover

1шт.

24

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

25

114366C1

HOSE ASSY.

HOSE ASSY, transmission primary to secondary tees

1шт.

26

9403022

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

transmission primary

1шт.

27

74886C1

ADAPTER

orifice

1шт.

28

105100C1

HOSE ASSY.

HOSE ASSY, transmission primary tee to transfer case

1шт.

29

114305C1

ELBOW

ASSY, lub & metering

1шт.

30

134934C1

ELBOW

1-1/2 npt side outlet transfer case RH side, Replaces 218202

1шт.

216341

LUBE NIPPLE

NIPPLE, 1-1/2 x 1-3/4 pipe

1шт.

20971R1

PLUG

1-1/2 sq-hd pipe

1шт.

31

127651C1

PIPE

FITTING, 1-1/2 x 1.50 dia. hose

1шт.

32

132877C2

HOSE,1.50" ID x 36.50"

Transfer Case to Front Axle Side Cover Center Port 1.50" ID x 36.50"

1шт.

33

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP, 2.50 hose

2шт.

34

132878C1

GUARD

transfer case to front axle hose

1шт.

35

124955C1

ELBOW, hose adapter

1шт.

36

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1.720 ID x .118

2шт.

37

114267C1

ELBOW,90 Degree, 1 1/2" Hose x 1 7/8"-12 ORB Beaded

1-1/2 in. hose adapter

1шт.

38

142005C1

HOSE

transmission drain, Replaces 116708C2

1шт.

39

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP, 2.50 hose

2шт.

40

129260C1

PLUG, DRAIN,7.46" Length

TUBE ASSY, transmission drain

1шт.

1250293C1

GASKET

transmission tube plate

1шт.
