Запчасти Case IH 4568 (10-22) - HYDRAULICS, OIL COOLER BY-PASS VALVE (07) - HYDRAULICS

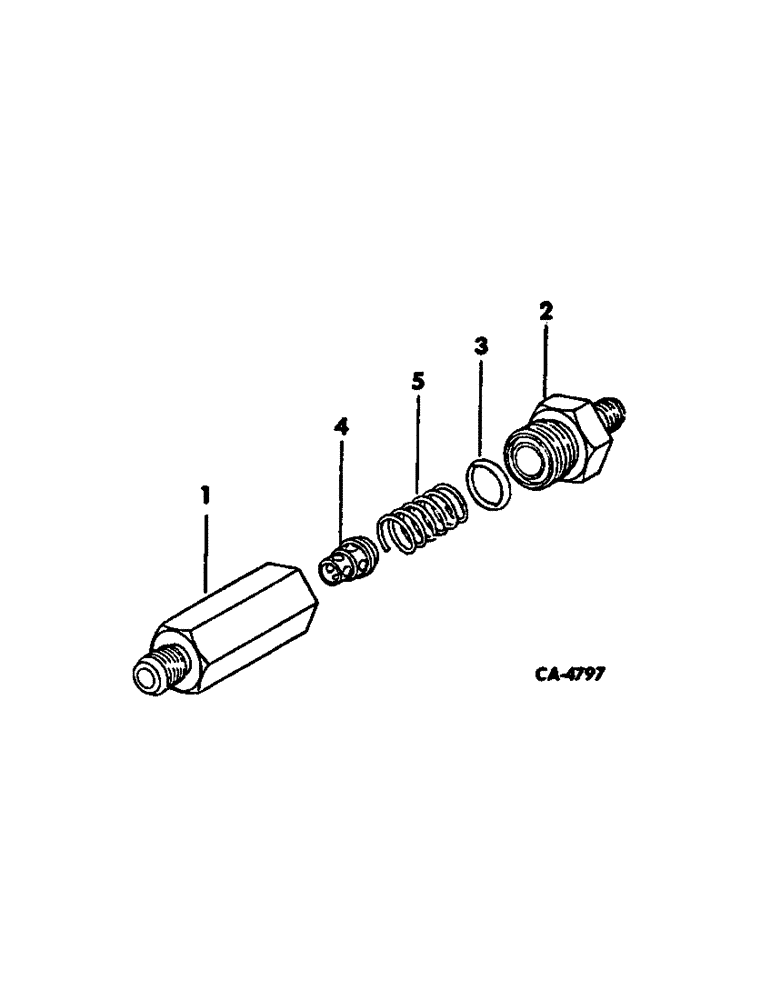

Схема запчастей Case IH 4568 - (10-22) - HYDRAULICS, OIL COOLER BY-PASS VALVE (07) - HYDRAULICS
1
2
4
5
3

Артикул

Название

Примечание

Количество

110578C91

VALVE

ASSY, oil cooler by-pass

1шт.

1

BODY, oil cooler by-pass valve, Not serviced separately, Order valve assy

1шт.

2

380633R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-1/16-12 37 deg flared tube short reducer

1шт.

3

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube

1шт.

4

POPPET, oil cooler by-pass, Order valve assy, 110578C91

1шт.

5

SPRING, oil cooler by-pass, Order valve assy, 110578C91

1шт.

128115C91

VALVE

ASSY, regulator

1шт.

Выбрано товаров: 7
