Запчасти Case IH 4568 (10-22[A]) - HYDRAULICS, REGULATOR VALVE (07) - HYDRAULICS

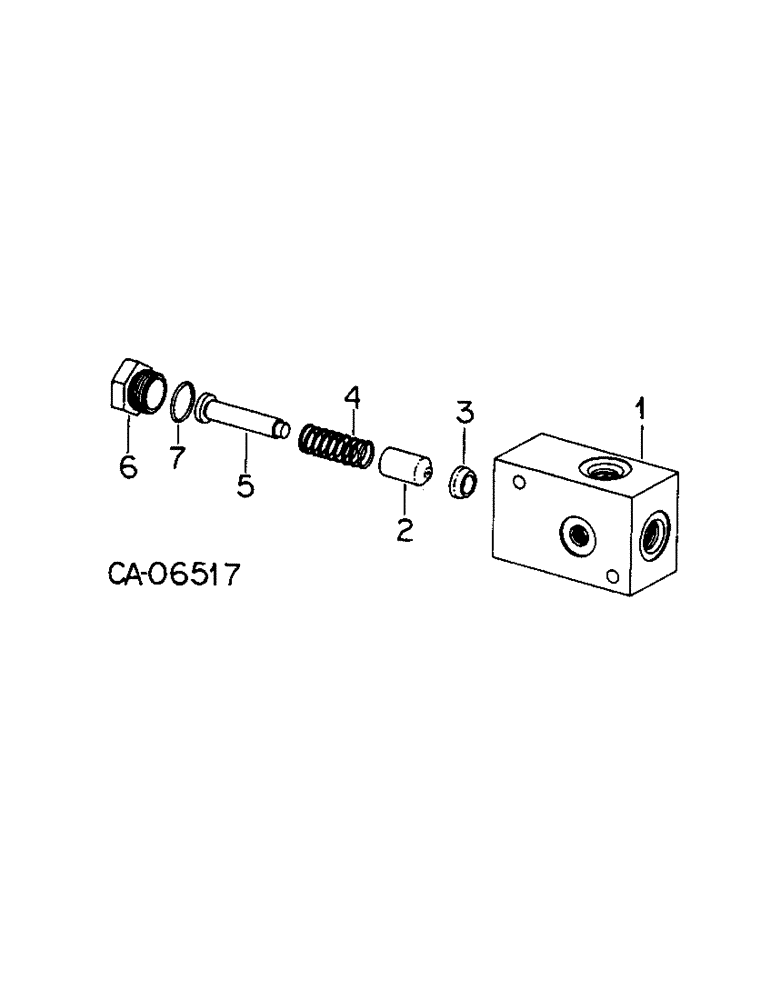

Схема запчастей Case IH 4568 - (10-22[A]) - HYDRAULICS, REGULATOR VALVE (07) - HYDRAULICS
4
7
5
1
3
2
6

Артикул

Название

Примечание

Количество

1

BODY, regulator valve, Not serviced separately, Order regulator valve assy

1шт.

2

128117C1

VALVE

poppet

1шт.

3

128118C1

VALVE

seat

1шт.

4

SPRING, poppet valve, Not serviced separately, Order regulator valve assy

1шт.

5

396130R2

PIN

poppet valve piston

1шт.

6

396133R1

PLUG

valve retaining

1шт.

7

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube class 6

1шт.

120386

WASHER

.312 x .734 x .051

1шт.

Выбрано товаров: 8
