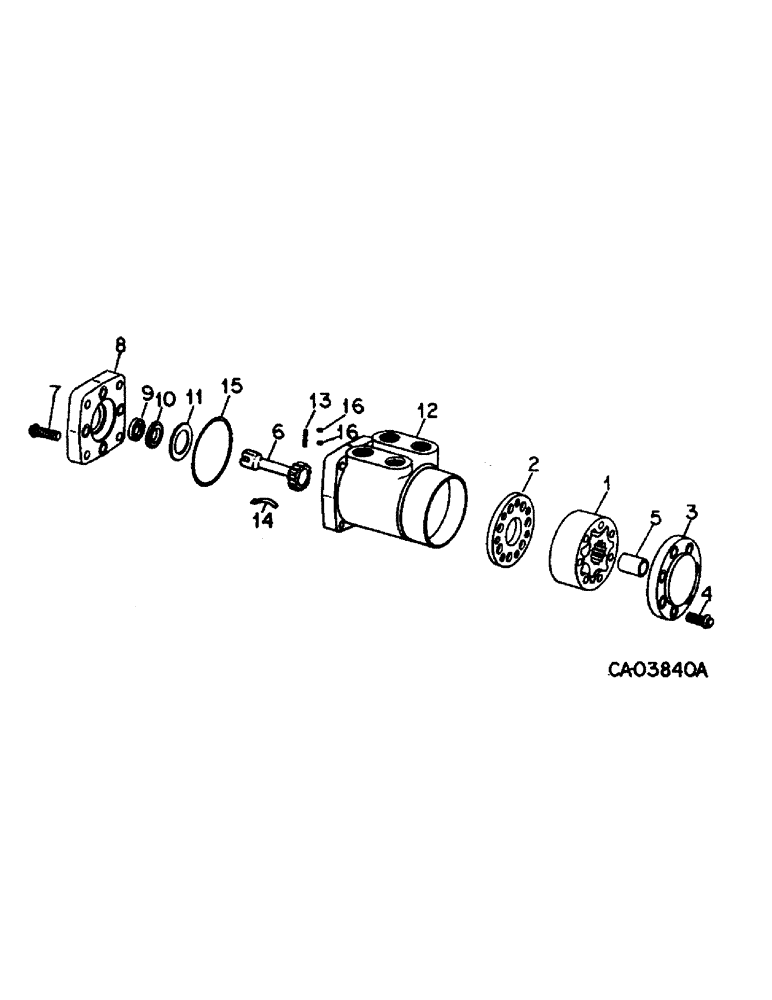

Запчасти Case IH 4568 (10-21) - HYDRAULICS, STEERING PUMP ORBITROL (07) - HYDRAULICS

146605C91

DASHPOT

ORBITROL ASSY, steering pump, 4586 tractors, Start Serial: 1501

1шт.

146605C91

DASHPOT

ORBITROL ASSY, steering pump, Service replacement for steering pump, 69697C91 on 4568 tractors and 4586 tractors, Only serviceable items are, Serial Range: -1500

1шт.

79056C1

GEAR SET, orbitrol

1шт.

79057C1

SEAL KIT

KIT, seal service, Consists of 7, o-rings, 2 seals & 1, back-up ring

1шт.

ORBITROL ASSY, steering pump, 4568 tractors, For service replacement, order steering pump, 146605C91, Consists of ref. nos. 1 thru 16

1шт.

ORBITROL ASSY, steering pump, 4586 tractors, For service replacement, order steering pump, 146605C91, Consists of ref. nos. 1 thru 16, Serial Range: -1500

1шт.

1

69846C1

GEAR SET

1шт.

2

653943R1

LARGE PLATE

PLATE

1шт.

3

653949R1

CAP, end

1шт.

4

3007337R1

SCREW, 12 pt. cap 5/16-24

7шт.

5

3007336R1

SPACER

1шт.

6

201889H1

DRIVE

1шт.

7

201891H1

SCREW, 12 pt cap 5/16-18

4шт.

8

201897H1

PLATE, valve mtg

1шт.

9

201893H1

SEALING RING

RING, quad 1-5/16 OD x 1/8

1шт.

10

697494R91

OIL SEAL

SEAL, oil

1шт.

11

382781R1

O-RING,1.737" ID x 0.103" Width

1-5/16 OD x 3/32

1шт.

12

3005993R91

CONTROL PARTS ASSY

1шт.

13

374524R2

PIN

centering

1шт.

14

374525R1

SPRING

centering

6шт.

15

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

REF 15 NOT AS SHOWN IT IS .301 X .070.

1шт.

16

DISC, centering pin, On orders for disc 3005991R1, Furnish pin, 374524R2

2шт.

60053C91

VALVE ASSY, steering relief, 2000 PSI

1шт.
