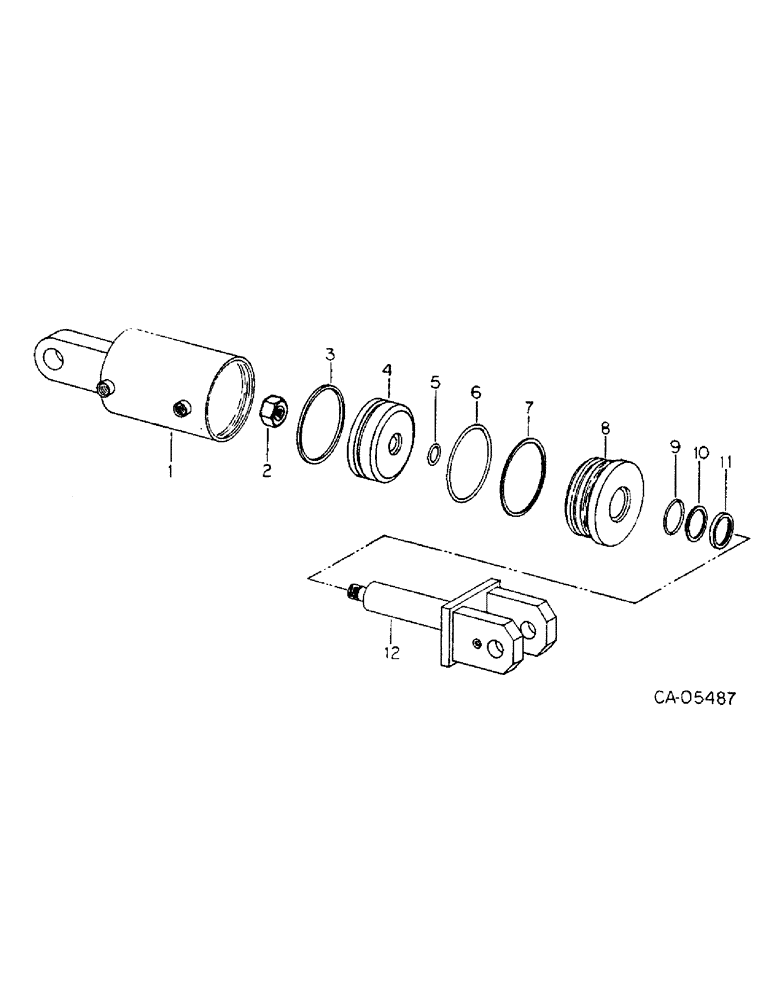

Запчасти Case IH 4568 (10-20) - HYDRAULICS, HITCH LIFT CYLINDER (07) - HYDRAULICS

71800C92

CYLINDER

ASSY, hitch lift

1шт.

1

71801C1

TUBE

ASSY

1шт.

2

359798C1

LOCK NUT,1"-14, GC

NUT, lock

1шт.

3

SEAL, piston

1шт.

Not serviced separately, order seal kit, 71803C1.

1шт.

4

76914C1

PISTON

1шт.

5

O-RING

1шт.

Not serviced separately, order seal kit, 71803C1.

1шт.

6

O-RING

1шт.

Not serviced separately, order seal kit, 71803C1.

1шт.

7

WASHER, back-up

1шт.

Not serviced separately, order seal kit, 71803C1.

1шт.

8

76915C1

GUIDE

HEAD, cylinder

1шт.

9

O-RING

1шт.

Not serviced separately, order seal kit, 71803C1.

1шт.

10

WASHER, back-up

1шт.

Not serviced separately, order seal kit, 71803C1.

1шт.

11

WIPER PISTON ROD

1шт.

Not serviced separately, order seal kit, 71803C1.

1шт.

12

76913C1

ROD

ASSY

1шт.

71803C1

SEAL KIT

KIT, seal, Consists of

1шт.

NSS

NOT SOLD SEPARAT

O-RING

3шт.

NSS

NOT SOLD SEPARAT

WASHER

2шт.

NSS

NOT SOLD SEPARAT

WIPER

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.
