Запчасти Case IH 4568 (10-19[A]) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS

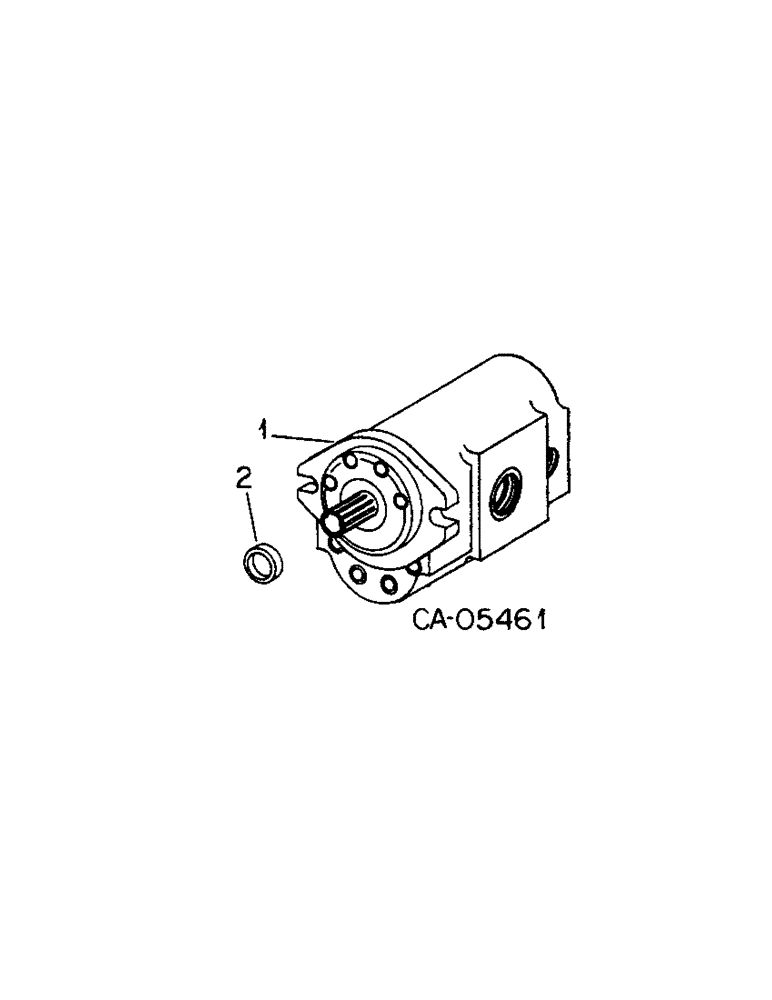

Схема запчастей Case IH 4568 - (10-19[A]) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS
2
1

Артикул

Название

Примечание

Количество

1

138069C91

PUMP, HYDRAULIC

PUMP ASSY, hyd tandem, 4586 tractors, Replaces 118847C91 by also ordering package 75794C91, Serial Range: -1500

1шт.

1

138069C91

PUMP, HYDRAULIC

PUMP ASSY, hyd tandem, all 4568 tractors, Replaces 118847C91 by also ordering package 75794C91

1шт.

1

138069C91

PUMP, HYDRAULIC

PUMP ASSY, hyd tandem, 4586 tractors, Start Serial: 1501

1шт.

2

382229R91

OIL SEAL

SEAL, shaft, Serial Range: -1500

1шт.

77542C1

SEAL ASSY.

KIT, hyd pump seal, Replaces 71821C1 and 55976C1, Consists of

1шт.

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

double lip

1шт.

L32099

SEAL

STRIP, pocket seal

2шт.

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

gasket

4шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

75794C93

SERVICE KIT

PACKAGE, tandem pump fit up service, Consists of

1шт.

138645C1

TUBE ASSY.

MANIFOLD ASSY

1шт.

134790C1

TUBE,4" Length

HOSE, suction tube

3шт.

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP

10шт.

138700C1

TEE

ASSY

1шт.

9403373

CAP,37 Degree, 7/8"-14

1шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

134779C1

ADAPTER

ASSY

1шт.

134780C1

ADAPTER

1шт.

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

138707C1

HOSE,1.50" ID x 4.00"

manifold

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS, installing

1шт.

Выбрано товаров: 25
