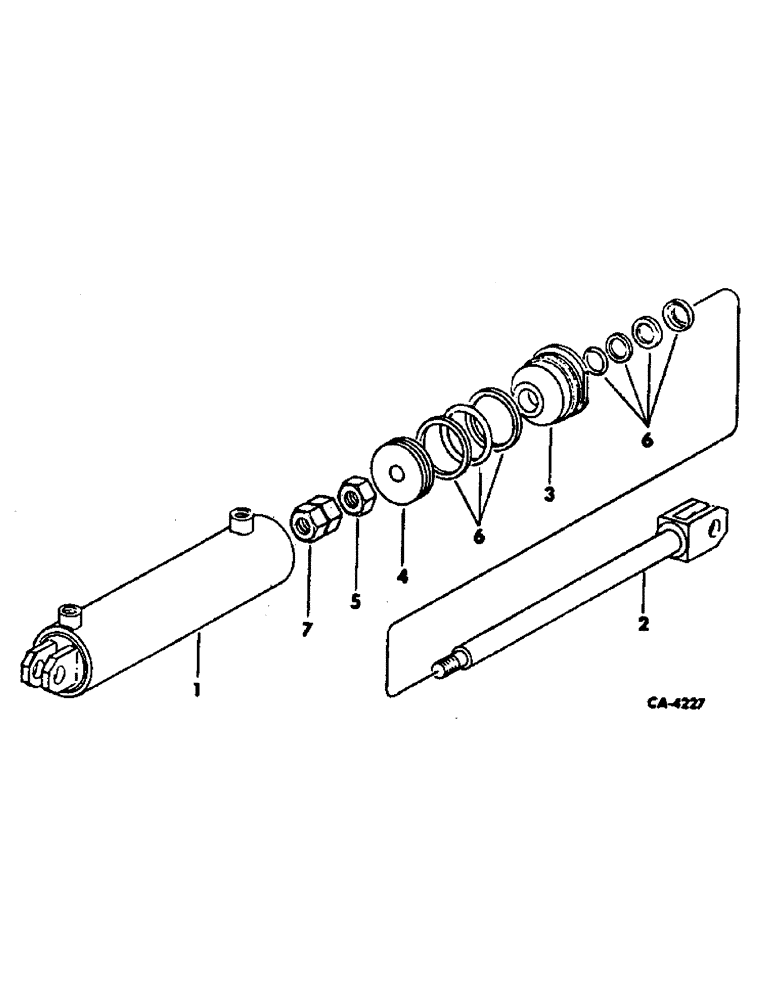

Запчасти Case IH 4568 (10-17) - HYDRAULICS, POWER STEERING CYLINDERS, 4568 TRACTORS WITH SERIAL NO. 1165 AND BELOW, ALL 4568 TRACTOR (07) - HYDRAULICS

CYLINDER ASSY, steering, On orders for 71343C91, Furnish cylinder assy, 113837C91, tractors w/aurelius cylinder stamped "o" on end cap and w/o .25 inch step plate, Consists of all parts marked unit A

2шт.

CYLINDER ASSY, steering, On orders for 71344C91, Furnish cylinder assy, 134400C91, tractors w/central steel cylinder coded w/ "o" and .25 inch step plate and w/ or w/o code "c", Consists of all parts marked unit B

2шт.

1

71347C1

TUBE ASSY, cylinder, A 3" ID

1шт.

1

71346C1

TUBE,18.812" Length

ASSY, cylinder, B

1шт.

2

71154C1

SHAFT

ASSY, cylinder, A

1шт.

2

71158C1

ROD

SHAFT ASSY, cylinder, B

1шт.

3

71155C1

GLAND, end, A

1шт.

3

71159C1

GUIDE

GLAND, end, B

1шт.

4

71156C1

PISTON

A

1шт.

4

71160C1

PISTON

B

1шт.

5

NOT USED IN THIS APPLICATION

1шт.

6

70777C1

SEAL KIT

seal and o-ring service, A

1шт.

6

134407C3

SEAL KIT

KIT, seal and o-ring service, B

1шт.

7

71161C1

STOP

1шт.
