Запчасти Case IH 4568 (10-16) - HYDRAULICS, HYDRAULIC PUMPS AND MOUNTING (07) - HYDRAULICS

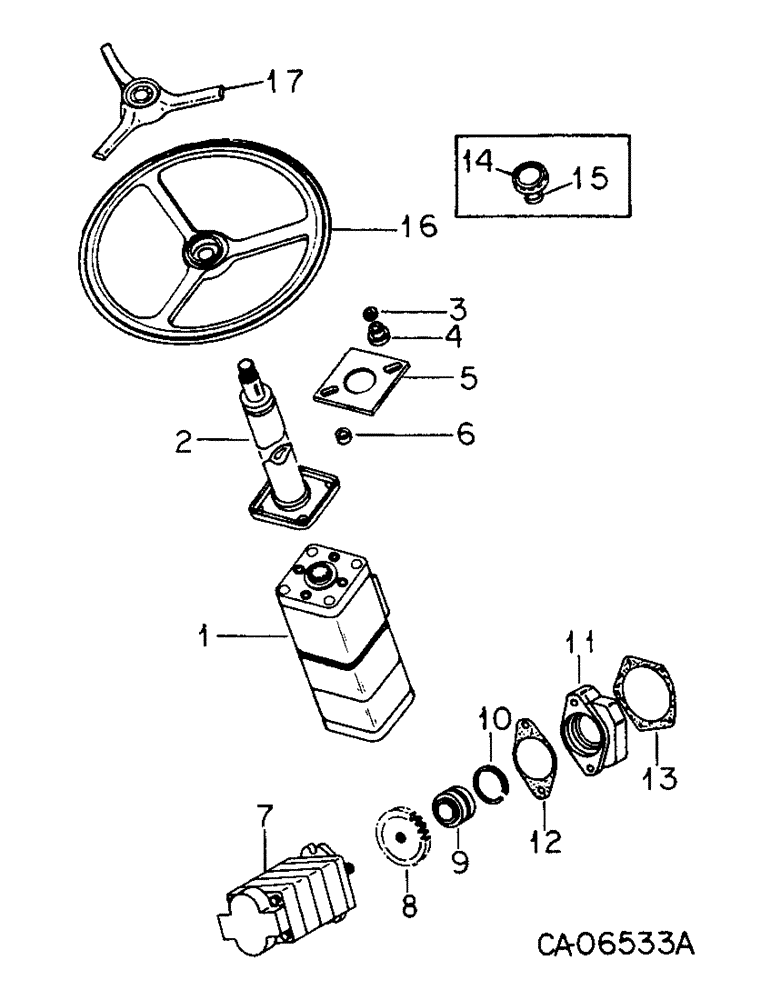

Схема запчастей Case IH 4568 - (10-16) - HYDRAULICS, HYDRAULIC PUMPS AND MOUNTING (07) - HYDRAULICS
3
12
7
2
10
6
5
14
13
11
8
4
9
1
17
16
15

Артикул

Название

Примечание

Количество

1

ORBITROL ASSY, steering pump, For components, see list of parts under details of steering pump orbitrol

1шт.

2

104922C91

COLUMN JACKET

POST ASSY, steering, 4586 tractors, Serial Range: -1500

1шт.

2

104922C91

COLUMN JACKET

POST ASSY, steering, all 4568 tractors

1шт.

426099

NUT,3/4"-16, G5

3/4-NF type 5

1шт.

2

132631C91

STEERING ASSY

POST ASSY, steering, 4586 tractors, Start Serial: 1501

1шт.

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

3

129189C1

WASHER

isomount

2шт.

4

70174C1

BUSHING

WASHER, orbitrol

2шт.

5

129190C1

LARGE PLATE

PLATE, orbitrol

1шт.

6

129191C1

SPACER

orbitrol

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8 x .750 type 8

2шт.

7

138069C91

PUMP, HYDRAULIC

PUMP ASSY, hyd tandem, For components, see list of parts under details of hydraulic pump

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

120396

WASHER

.531 x 1.062 x .074

2шт.

8

104935C1

GEAR

pump drive, 31T

1шт.

9

610300C91

TAPERED BEARING

pump gear

1шт.

127689

WASHER, LOCK

WASHER, bearing lock

1шт.

131-1036

BEARING LOCK NUT,Bearing, 1.7717" Bore

NUT, bearing lock

1шт.

10

252862R1

RING

snap

1шт.

11

104936C2

ADAPTER

hyd pump

1шт.

12

390618R1

GASKET

pump

1шт.

13

601877C1

GASKET

pump adapter

1шт.

14

70148C1

CAP

ASSY, steering wheel, 4586 tractors, Serial Range: -1500

1шт.

14

70148C1

CAP

ASSY, steering wheel, all 4568 tractors

1шт.

14

68837C1

CAP

ASSY, steering wheel, 4586 tractors, Serial Range: 1501-2500

1шт.

15

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 class 5, 4586 tractors, Serial Range: -2500

1шт.

15

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 class 5, all 4568 tractors

1шт.

16

70091C1

RIM

WHEEL, steering, 4586 tractors, Serial Range: -1500

1шт.

16

70091C1

RIM

WHEEL, steering, all 4568 tractors

1шт.

16

385156R1

WHEEL (STEERING)

WHEEL, steering, 4586 tractors, Start Serial: 1501

1шт.

16

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

17

148839C91

CAP

ASSY, steering wheel, 4586 tractors, Start Serial: 2501

1шт.

Выбрано товаров: 33
