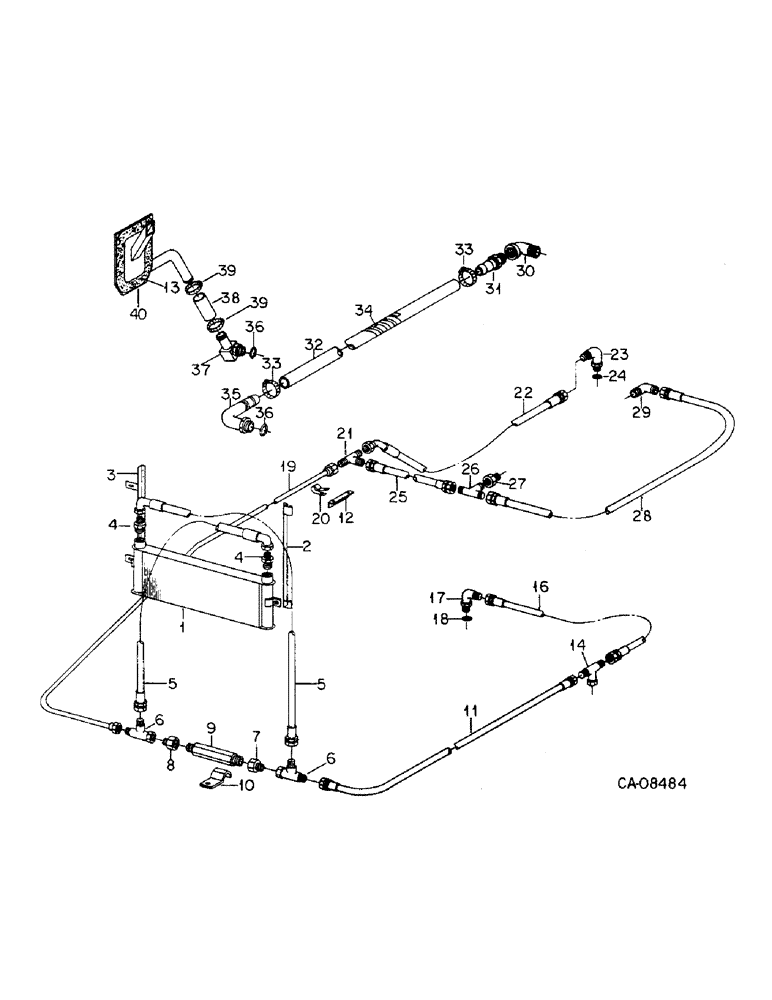

Запчасти Case IH 4568 (10-12) - HYDRAULICS, OIL COOLER & TRANSMISSION CONNECTIONS, 4568 TRACTORS, 4586 TRACTORS W/ S/N 1500 & BELOW (07) - HYDRAULICS

1

71903C1

COOLER

ASSY, hydraulic oil, Replaces 69898C1

1шт.

2

118820C1

ANGLE

ASSY, oil cooler LH

1шт.

3

118823C1

ANGLE

ASSY, oil cooler RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

4

606367C1

FITTING

CONNECTOR, C-Z hyd fld 3/4 to 1/2, 4568 tractors, Serial Range: -8419

2шт.

4

343804R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1/2"-14, NPTF

CONNECTOR, C-Z hyd fld 3/4 to 1/2, 4568 tractors, Start Serial: 8420

2шт.

4

343804R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1/2"-14, NPTF

CONNECTOR, C-Z hyd fld 3/4 to 1/2, all 4586 tractors

2шт.

5

116663C1

HOSE ASSY.

HOSE ASSY, oil cooler

2шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, tie

2шт.

6

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

5/8 C-Z hyd fld tube swivel, oil cooler by-pass union

2шт.

7

483594R1

UNION,37 Degree, 1 5/16"-12, Fem x 7/8"-14 Male

reducer 1 to 5/8 by-pass valve

1шт.

8

118913C1

UNION

reducer 3/4 to 5/8 by-pass valve

1шт.

9

110578C91

VALVE

ASSY, oil cooler relief, For components, see list of parts under details of oil cooler relief valve

1шт.

10

116687C1

BRACKET

CLAMP, relief valve

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

11

116650C1

HOSE ASSY.

HOSE ASSY, strg relief to oil cooler by-pass

1шт.

12

118964C1

ANGLE

tube clamp support

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

13

1250293C1

GASKET

transmission drain tube plate

1шт.

14

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

5/8 C-Z hyd fld tube swivel, strg relief valve primary side

1шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

16

116667C1

HOSE

ASSY, strg relief to front axle by-pass

1шт.

17

119054C1

ELBOW

ASSY, lub and metering

1шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

19

116659C1

TUBE ASSY.

TUBE ASSY, oil cooler by-pass to trans secondary tee, 4568 tractors

1шт.

19

124947C1

TUBE

ASSY, oil cooler by-pass to trans secondary tee, 4586 tractors

1шт.

20

299410C1

CLAMP,5/8", Insul, 1/4" Bolt

5/8 closed tube

2шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

21

9402983

TEE,7/8"-14, 37 Degree

5/8 C-Z hyd flared three way

1шт.

22

129198C1

HOSE ASSY.

HOSE ASSY, trans secondary tee to front axle top cover rear port, Replaces 116671C1 by also ordering tee 9402983

1шт.

23

119054C1

ELBOW

ASSY, lub & metering front axle top cover

1шт.

24

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

25

114366C1

HOSE ASSY.

HOSE ASSY, trans primary to secondary tees

1шт.

26

114304C1

3 WAY CONNECTION

TEE ASSY, lub and metering trans primary w/orifice, For service replacement, Furnish 1, tee, 9403022 and 1, adapter 74886C1

1шт.

26

9403022

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

5/8 C-Z hyd flared tube two way

1шт.

27

443323

ADAPTER W/ORIFICE, For service replacement, Furnish 1, tee, 9403022 and 1, adapter 74886C1

1шт.

27

74886C1

ADAPTER

W/ORIFICE

1шт.

28

105100C1

HOSE ASSY.

HOSE ASSY, primary tee to transfer case

1шт.

29

114305C1

ELBOW

ASSY, lub and metering, transfer case to top rear, Consists of

1шт.

NSS

NOT SOLD SEPARAT

ELBOW

1шт.

NSS

NOT SOLD SEPARAT

PLUG

1шт.

30

116690C1

ELBOW

reducing transfer case RH side, 4568 tractors

1шт.

30

218202

ELBOW,90 Degree, 1 1/2" NPT Street

1-1/2 pln 90D pipe street, 4586 tractors

1шт.

31

127651C1

PIPE

FITTING, 1-1/2 x 1.50 dia. hose

1шт.

32

116661C2

HOSE

transfer case to front axle side cover center port, 4568 tractors

1шт.

32

132877C2

HOSE,1.50" ID x 36.50"

Transfer Case to Front Axle Side Cover Center Port, 4586 Tractors 1.50" ID x 36.50"

1шт.

33

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP, 2.50 hose, Replaces 327257R91

2шт.

34

127503C1

GUARD

transfer case to front axle hose, 4568 tractors

1шт.

34

132878C1

GUARD

transfer case to front axle hose, 4586 tractors

1шт.

35

124955C1

ELBOW, hose adapter

1шт.

36

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1-1/2 OD tube class 6

2шт.

37

114267C1

ELBOW,90 Degree, 1 1/2" Hose x 1 7/8"-12 ORB Beaded

1-1/2 in. hose adapter

1шт.

38

142005C1

HOSE

transmission drain, Replaces 116708C2

1шт.

39

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP, 2.50 OD hose, Replaces 327257R91

2шт.

40

116685C1

TUBE ASSY.

TUBE ASSY, transmission drain, 4586 tractors, Serial Range: -502

1шт.

40

116685C1

TUBE ASSY.

TUBE ASSY, transmission drain, all 4568 tractors

1шт.

40

129260C1

PLUG, DRAIN,7.46" Length

TUBE ASSY, transmission drain, 4586 tractors, Start Serial: 503

1шт.
