Запчасти Case IH 4568 (10-10) - HYDRAULICS, VALVE SUPPLY, 4568 TRACTORS, 4586 TRACTORS WITH SERIAL NO. 1500 AND ABOVE (07) - HYDRAULICS

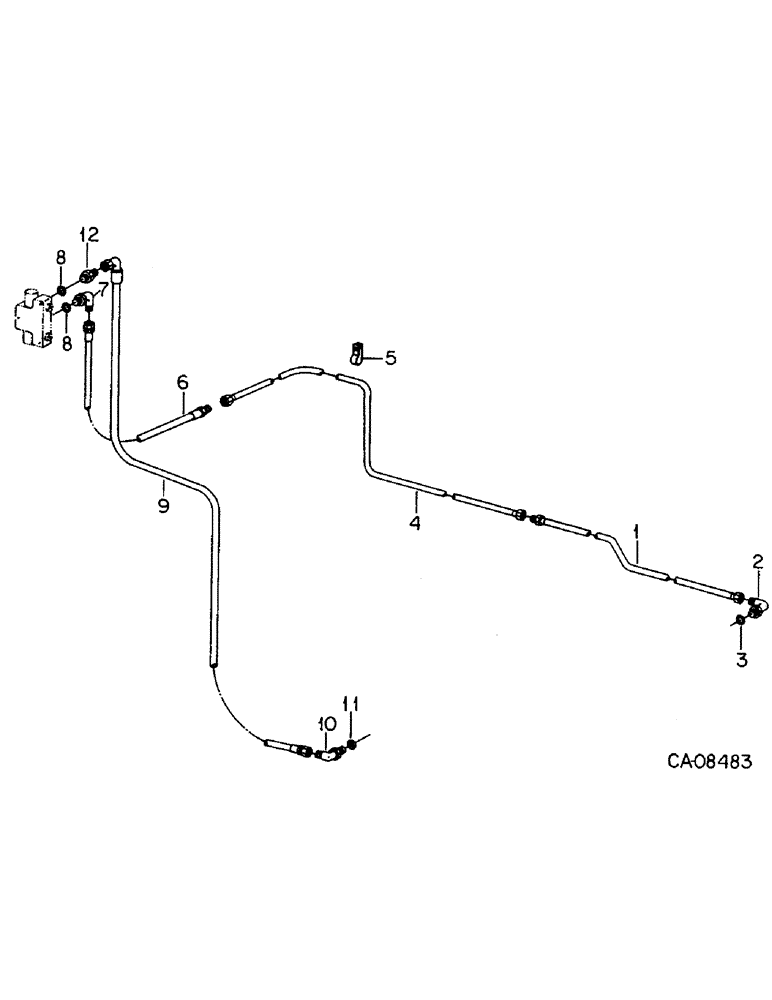

Схема запчастей Case IH 4568 - (10-10) - HYDRAULICS, VALVE SUPPLY, 4568 TRACTORS, 4586 TRACTORS WITH SERIAL NO. 1500 AND ABOVE (07) - HYDRAULICS
2
11
1
9
4
5
12
8
8
6
10
3

Артикул

Название

Примечание

Количество

1

116643C2

HOSE

ASSY, pump to aux valve supply tube

1шт.

2

150776C91

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

C-Z hyd fld adj 1 to 3/4 90D, pump rear port

1шт.

3

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

1шт.

4

116642C2

TUBE

ASSY, aux. valve supply

1шт.

5

299414C1

CLAMP,7/8", Insul, 1/4" Bolt

3/4 phc closed

1шт.

436754

SCREW,Slotted Pan Hd, #10-32 x 1"

no. 10-NF x 1 znp p/hds mach

1шт.

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, #10-32, GB

1шт.

6

116644C2

HOSE ASSY.

HOSE ASSY, tube to aux. valve

1шт.

7

673391R1

ELBOW UNION,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

ELBOW, C-Z hyd fld adj 3/4 to 5/8 90D, aux. valve side port

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

9

116669C2

HOSE

ASSY, aux. valve to front axle side cover bottom port

1шт.

10

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

3/4 C-Z hyd fld adj 90D

1шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

12

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, C-Z hyd fld 3/4 to 5/8 sht, aux. valve side top port

1шт.

Выбрано товаров: 14
