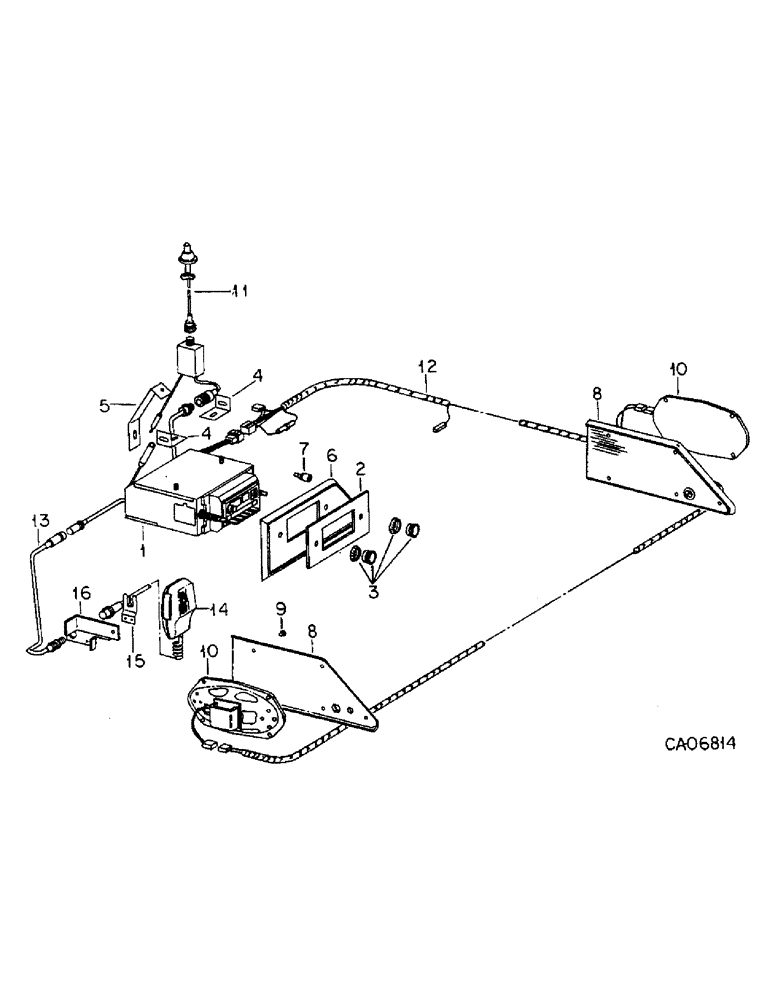

Запчасти Case IH 4568 (08-32) - ELECTRICAL, RADIO EQUIPMENT, AM-FM-CB MULTIPLEX (06) - ELECTRICAL

142947C93

RADIO

PARTS ACCESSORY, AM-FM-CB MPX radio, Consists of ref. nos. 1, 3, 4, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 & 16 plus

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

1

143328C1

RADIO

AM-FM-CB MPX, Replaces 118438C1 by also ordering microphone 1252436C91

1шт.

142973C1

NUT

.7 x .75 large shaft

2шт.

142920C1

WASHER

shaft

2шт.

142974C1

NUT

M9 x .75 small shaft

2шт.

142945C1

STUD, adapter

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

2

118441C1

LARGE PLATE

PLATE, trim

1шт.

Used with radio 118438C1.

1шт.

2

1252435C1

PLATE, trim

1шт.

Used with radio 143328C1.

1шт.

3

117993C1

PACKAGE

KIT, radio control knobs

1шт.

4

117818C1

ANGLE

radio mtg

2шт.

5

118120C1

SUPPORT

BRACKET, radio mtg

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

1шт.

24198R1

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW, 1/4-14 x 5/8 phc h/hd tap

1шт.

6

118376C1

PANEL

radio trim

1шт.

Used with radio 118438C1.

1шт.

6

1252433C1

PANEL, radio trim

1шт.

Used with radio 143328C1.

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, no. 8-18 x 1-3/4 phc o/hdcr tap

5шт.

7

117995C1

PACKAGE

KIT, trim

3шт.

8

111402C2

PANEL

speaker trim LH

1шт.

Used with parts accessory, 142947C93.

1шт.

8

111403C1

PANEL

speaker trim RH

1шт.

Used with parts accessory, 142947C93.

1шт.

8

118258C1

PANEL

GRILLE, speaker

2шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 phc o/hdcr tap

8шт.

132718C1

FASTENER

TGL type plastic

8шт.

9

117730C1

PLUG

plastic

1шт.

10

70727C3

SPEAKER

4 x 8 8 ohm, Serial Range: -2500

2шт.

10

142956C1

SPEAKER

4 x 8 4 ohm, Start Serial: 2501

2шт.

11

118439C91

ANTENNA

ASSY, combination AM-FM-CB, Consists of

1шт.

142978C1

UNION

COUPLER ASSY

1шт.

142979C1

BASE

ASSY

1шт.

142982C1

VALVE SPRING

SPRING

1шт.

142980C1

SCREW,M6 x 0.86"

1шт.

142981C1

NUT

1шт.

143113C1

SCREW,Hex Skt, M5 x 0.156" L

1шт.

142983C1

BAR

MAST

1шт.

142969C1

NUT

1шт.

142984C1

SCREW,M3 x 3.70"

Also purchase locally 2 inch of 1-3/4 inch duct or plastic tap for use w/antenna assy 118439C91

1шт.

12

118440C2

HARNESS

ASSY, radio & speaker, Serial Range: -2500

1шт.

12

143177C1

HARNESS

ASSY, radio & speaker, Start Serial: 2501

1шт.

126049

FUSE,5 Amp, Type 1AG

AGA 5 amp

1шт.

13

142946C1

CABLE PULLING GRIP

CABLE ASSY, CB microphone extension

1шт.

13

142995C1

CABLE

ASSY, CB microphone extension

1шт.

Used with parts accessory, 142947C93.

1шт.

14

118597C91

RADIO

MICROPHONE ASSY, CB radio

1шт.

Used with radio 118438C1.

1шт.

14

1252436C91

TRANSMITTER

MICROPHONE ASSY, CB radio

1шт.

Used with radio 143328C1.

1шт.

15

118598C1

CLIP

microphone mtg

1шт.

142937C1

SCREW,Phil Pan Hd, #8 - 18 x 1/2"

no. 8-18 x 1/2 cr tap

2шт.

16

118595C1

BRACKET

ASSY, CB mircophone mtg

1шт.

444272

SCREW, no. 8 x 1/4 znp p/hdcr l/w mach

2шт.

445106

SPARE PART

NUT, 8-32 phc style I

2шт.
