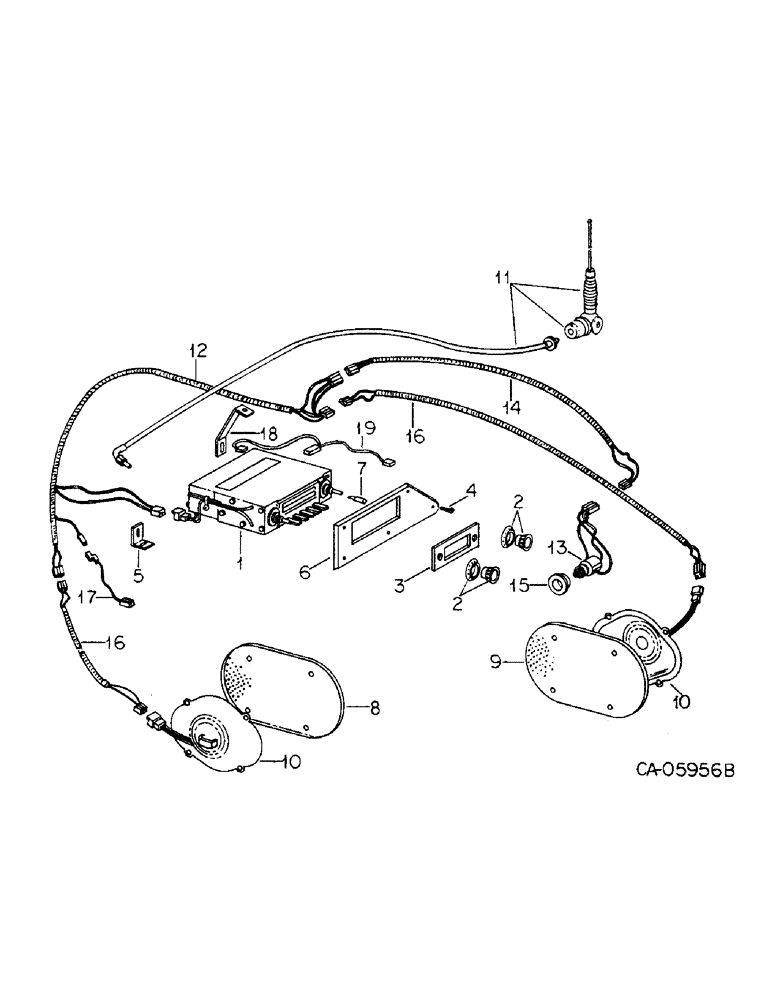

Запчасти Case IH 4568 (08-29) - ELECTRICAL, RADIO EQUIPMENT, AM, FM AND TAPE PLAYERS (06) - ELECTRICAL

111640C92

RADIO

PARTS ACCESSORY, AM radio w/fader control, Consists of radios, 1111643C1 or 111644C1, ref. nos. 2 thru 12 & instructions

1шт.

111641C92

RADIO

PARTS ACCESSORY, AM/FM monaural radio w/fader control, Consists of radios, 111645C1 or 111646C1, ref. nos. 2 thru 12 & instructions

1шт.

111642C92

RADIO

PARTS ACCESSORY, AM/FM multiplex radio w/8 track tape player, Consists of radio, 111647C1, ref. nos. 2 thru 12 & instructions

1шт.

146558C91

RADIO

PARTS ACCESSORY, AM/FM push button multiplex stereo radio, Consists of radio, 146560C1, ref. nos. 2 thru 12 & instructions

1шт.

146559C91

PACKAGE

PARTS ACCESSORY, AM/FM stereo push button radio w/cassette tape, Consists of radio, 111648C1, ref. nos. 2 thru 12 & instructions

1шт.

118154C91

ACCESSORIES

PARTS ACCESSORY, headphone jack connecting cable, Consists of ref. nos. 13, 14 & 15

1шт.

143186C92

RADIO

PARTS ACCESSORY, radio completing, Replaces 118133C93 by also ordering harness assy, 118440C2, Consists of

1шт.

118258C1

PANEL

SPEAKER GRILLE

2шт.

28058R1

SCREW

8 NF x 3/4 phc o/h c/r mach

8шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

W/LOCKWASHER

8шт.

118070C1

CABLE

ASSY, ROPS canopy power

1шт.

187626C2

ANGLE

radio mounting

1шт.

118441C1

LARGE PLATE

PLATE, radio trim

1шт.

118120C1

SUPPORT

radio mounting

1шт.

24198R1

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW, 1/4-14 x 5/8 phc h/hd tap

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

187625C1

COVER ASSY

COVER, radio dial

1шт.

1252467C1

COVER

radio dial

1шт.

365919R1

GROMMET,3/8" ID x 5/8" Groove Dia

radio antenna

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL, spade, L

1шт.

1

111643C1

RADIO

AM w/fader, Boman, or

1шт.

1

111644C1

RADIO, AM w/fader, Motorola

1шт.

1

111645C1

RADIO

AM/FM monaural w/fader, Boman, or

1шт.

1

111646C1

RADIO, AM/FM monaural w/fader, Motorola

1шт.

1

111647C1

RADIO

AM/FM w/8 track tape, Boman

1шт.

1

111648C1

RADIO

AM/FM stereo cassette push-button, Boman

1шт.

1

146560C1

RADIO

AM/FM stereo push-button, Boman

1шт.

142919C1

NUT

large shaft

2шт.

For use with Bowman radios.

1шт.

142919C1

NUT

large shaft

4шт.

For use with radio 111645C1.

1шт.

142920C1

WASHER

shaft

2шт.

For use with Bowman radios.

1шт.

142921C1

NUT

small shaft

2шт.

For use with Bowman radios.

1шт.

25056R1

WASHER

shaft

2шт.

For use with Motorola radios.

1шт.

328505C1

NUT

mounting

2шт.

For use with Motorola radios.

1шт.

2

117993C1

PACKAGE

KIT, radio control knobs

1шт.

For use with Bowman radios.

1шт.

2

385531C1

KNOB

tone & balance

2шт.

For use with Motorola radios.

1шт.

3

117992C1

PLATE

trim

1шт.

For use with Bowman radios.

1шт.

3

118441C1

LARGE PLATE

PLATE, trim

1шт.

For use with radio 111645C1.

1шт.

For use with parts accessory, 143186C92.

1шт.

4

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, trim panel mtg

5шт.

5

117818C1

ANGLE

radio mounting

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

6

118376C1

PANEL

radio trim

1шт.

For use with Bowman radios.

1шт.

6

142955C1

PANEL

radio trim

1шт.

For use with Motorola radios.

1шт.

7

117995C1

PACKAGE

KIT, trim panel fastener

2шт.

8

111402C2

PANEL

speaker trim LH

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 phc o/hdcr tap

5шт.

142940C1

PLUG

plastic, 5/8 hole

1шт.

117730C1

PLUG

plastic

1шт.

8

118258C1

PANEL

GRILLE, speaker

1шт.

For use with radio 111645C1.

1шт.

For use with parts accessory, 143186C92.

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 phc o/hdcr tap

4шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

W/LOCKWASHER

4шт.

9

111403C1

PANEL

speaker trim RH

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 phc o/hdcr tap

5шт.

9

118258C1

PANEL

GRILLE, speaker

1шт.

For use with radio 111645C1.

1шт.

For use with parts accessory, 143186C92.

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 phc o/hdcr tap

4шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

W/LOCKWASHER

4шт.

10

70727C3

SPEAKER

4 x 8 8 ohm, Serial Range: -2500

2шт.

10

142956C1

SPEAKER

4 x 8 4 ohm, Start Serial: 2501

2шт.

11

111237C1

ANTENNA

ASSY

1шт.

12

118440C2

HARNESS

ASSY, radio and speaker, Replaces 111431C2, Serial Range: -2500

1шт.

12

143177C1

HARNESS

ASSY, radio & speaker, Start Serial: 2501

1шт.

445635

FUSE,3 Amp, Type 1AG

aga 3 amp, 5/8 long

1шт.

13

70737C1

CABLE ASSY, headphone jack

1шт.

14

118135C1

ACCESSORIES

HARNESS ASSY, earphone jack extension

1шт.

15

118106C1

WASHER

cup trim

1шт.

16

118134C1

HARNESS

CABLE ASSY, speaker extension, Serial Range: -2500

1шт.

17

118070C1

CABLE

ASSY, ROPS canopy power

1шт.

18

118120C1

SUPPORT

BRACKET, radio support

1шт.

For use with radio 111645C1.

1шт.

For use with parts accessory, 143186C92.

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 int-ext lock

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

77544C1

SCREW,1/4" - 20 x 3/4"

1/4-20 x 3/4 phc self tap

1шт.

19

NOT USED IN THIS APPLICATION

1шт.
