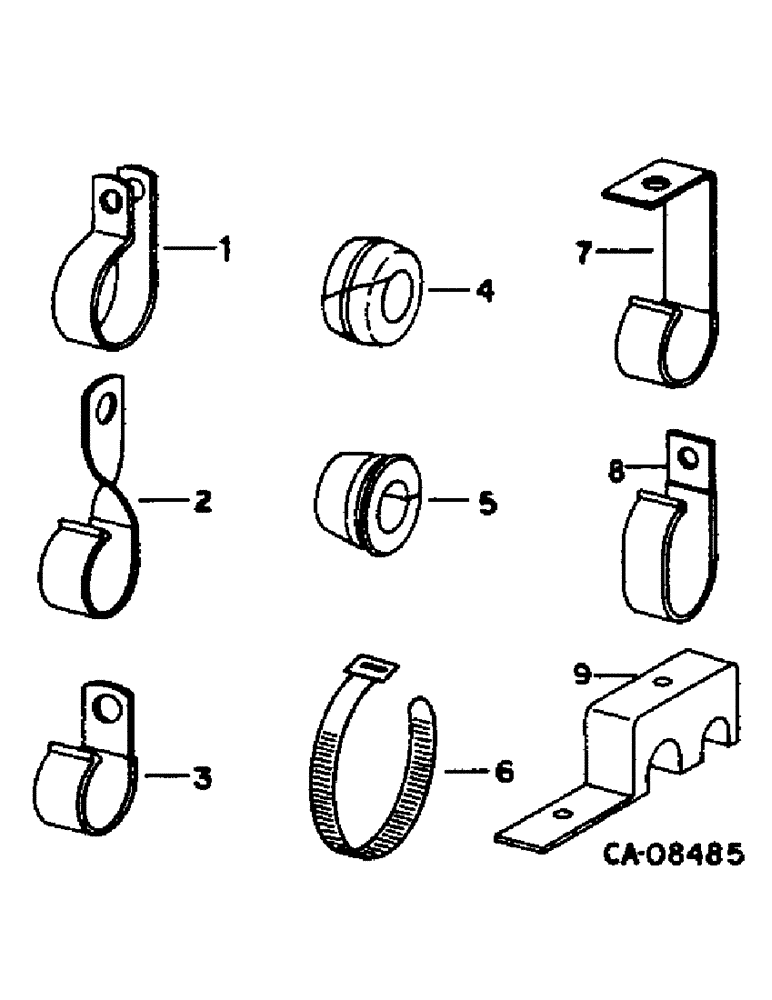

Запчасти Case IH 4568 (08-28) - ELECTRICAL, CLIPS, CLAMPS, STRAPS AND GROMMETS (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
299399C1
CLIP
CLAMP, .250 dia. closed
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
1
299402C1
CLAMP
.312 dia. closed
1шт.
1
301272C1
CLAMP,3/4", Insul, 1/4" Bolt
.750 dia. closed, main harness on access panel, instrument panel
2шт.
160568
SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"
1/4 x 1-1/4 phc p/hdcr mach
1шт.
160541
SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"
1/4 x 3/4 znp p/hdcr mach
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
22232N
SPACER
1/8 x .500 std pipe
1шт.
1
299416C1
CLAMP
.938 dia. closed
1шт.
2
370820R1
CLIP
.500 dia. open twisted, engine harness on alternator
1шт.
18794R1
BOLT,Hex, 7/16" - 14 x 1", Gr 2
7/16 x 1 type 1
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
2
121518C1
BOLT,Insul, 0.656" D x 3 5/16"
CLIP, .625 dia. open twisted, engine harness on starter bolt
1шт.
3
362123R1
CLIP
.250 dia. open, .47 bolt hole, intermediate & engine harness on PTO cover, engine harness on A/C compressor, front harness to horn mtg hole
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
180116
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
3/8 x 1/2 type 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
3
362121R1
CLIP
.375 dia. open, .28 bolt hole, front harness on radiator
2шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
3
362126R1
CLIP
.500 dia. open, .41 bolt hole, harness to trans cover, air cleaner switch cable
1шт.
3
358986R1
CABLE CLIP
CLIP, .500 dia. open, .53 bolt hole, intermediate & engine harness on clutch housing
5шт.
3
399657R1
CLIP
.500 dia. open, .34 bolt hole, main harness on instr. panel
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
3
383622R1
CLIP
.500 dia. open, .68 bolt hole, intermediate harness
1шт.
3
384557R1
CLIP
.500 dia. open, .28 bolt hole, front harness
4шт.
26976R1
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"
SCREW, 1/4 x 3/8 h/whd tap
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
3
384557R1
CLIP
.500 dia. open, .28 bolt, hole, main harness on access panel
3шт.
160541
SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"
1/4 x 3/4 znp p/hdcr mach
2шт.
87716
BOLT,1/4"-20 x 1-1/4", Cl 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
3
384557R1
CLIP
.500 dia. open, .28 bolt hole, rear fuel hose brkt, main harness to cab front
1шт.
28059R1
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"
SCREW, 1/4 x 3/4 phc h/whd tap
1шт.
4
806124C1
GROMMET
.38 ID x .75 OD x .50, park brake cable
1шт.
4
261869C1
GROMMET, .38 ID x 1.00 OD x .63, front frame side plate
1шт.
4
123548H
GROMMET
.38 ID x 1.31 OD x .38, working light fender, 4, working light cab, 2
1шт.
4
31694H
GROMMET
.41 ID x .82 OD x .63, rear frame side plate
2шт.
5
NOT USED IN THIS APPLICATION
1шт.
6
289862C1
CABLE TIE,3/16" x 7"
STRAP, cable, 1.75 max. bundle
1шт.
6
306132C1
CABLE TIE,14.5" L
STRAP, cable, 4.00 max. bundle
1шт.
180116
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
3/8 x 1/2 type 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
8
370384R1
CLIP
.500 dia. open w/90 deg bend, intermediate harness to cab front
3шт.
28059R1
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"
SCREW, 1/4 x 3/4 phc h/whd tap, intermediate to LH frame
3шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
9
121714C1
CLAMP
multiple cable harness, hold down on cab front
1шт.
28052R1
SCREW, 1/4 x 2 h/whd tap
1шт.
NLS
NO LONGER SERVICED
.312 x .734 x .051
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
Выбрано товаров: 60
