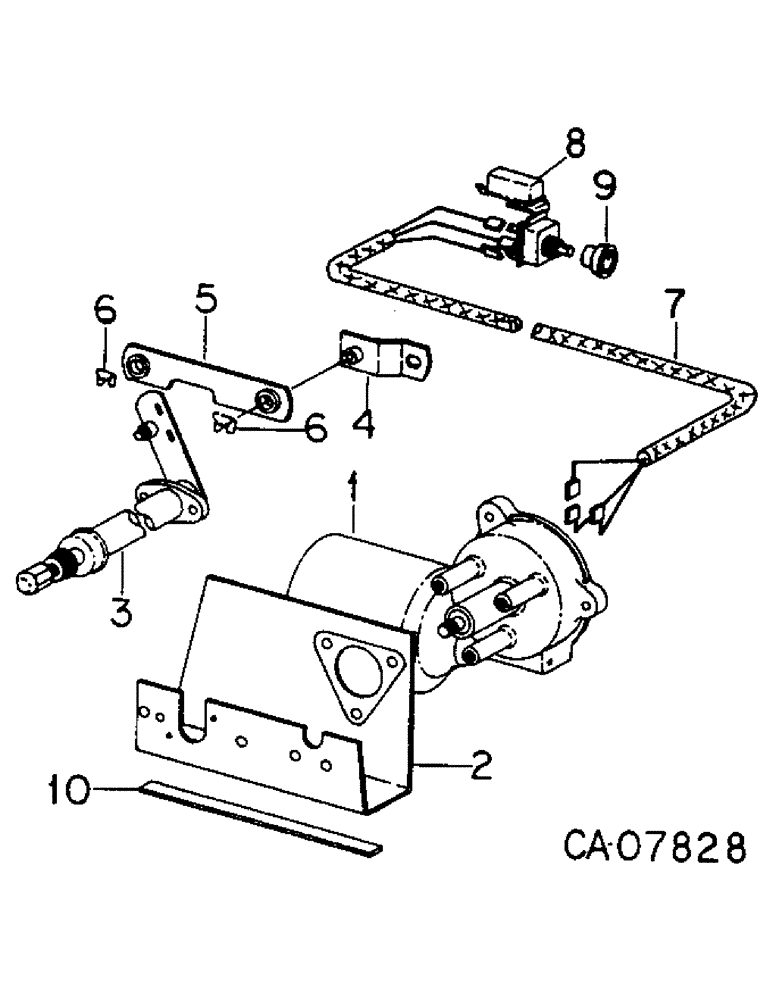

Запчасти Case IH 4568 (08-26) - ELECTRICAL, WINDSHIELD WIPER MOTOR ASSY AND CONNECTIONS (06) - ELECTRICAL

69705C91

MOTOR

ASSY, windshield wiper, 4568 tractors, No serviceable components, Order motor assy

1шт.

1267548C91

WIPER MOTOR

MOTOR ASSY, windshield wiper, 4586 tractors, Replaces motor assy, 109223C91, motor, 143417C1, and mtg bracket, 923480C1, Consists of ref. nos. 1 thru 6

1шт.

KIT INCLUDE A 60-6586T1 MOTOR, A 60-6626T1 ARM, A 129067A1

1шт.

60-6626T1 ARM IS THE MOST COMMON FOR APPLICATION.

1шт.

SEE 129068A2 FOR THIS INFO.

1шт.

1

MOTOR ASSY, windshield wiper, Not serviced separately, Order motor assy, 1267548C91

1шт.

2

BRACKET, mounting, Not serviced separately, Order motor assy, 1267548C91

1шт.

923479C1

BOLT

SCREW

3шт.

118125C1

NUT

lock

1шт.

148074R1

WASHER

2шт.

118129C1

SCREW

W/LOCK WASHER

2шт.

3

SHAFT AND PIVOT ASSY, Not serviced separately, order linkage kit, 1267542C91

1шт.

1267556C1

BUTTON

NUT, knurled driver, Replaces 3016057R1

1шт.

27987R1

SCREW, 1/4NF x 1/2 znp p/hds mach

1шт.

4

ARM ASSY, drive, Not serviced separately, order linkage kit, 1267542C91

1шт.

5

LINK ASSY, connecting, Not serviced separately, order linkage kit, 1267542C91

1шт.

6

739487C1

CLIP

spring

2шт.

7

143340C1

HARNESS

ASSY, windshield wiper

1шт.

8

537027R1

SWITCH

ASSY, windshield wiper, 4568 tractors

1шт.

8

109222C1

SWITCH

W/CIRCUIT BREAKER, windshield wiper, 4586 tractors

1шт.

109311H

JAM NUT

7/16-28 hex. face

1шт.

9

70141C1

KNOB

wiper control, 4568 tractors

1шт.

9

111282C1

KNOB

wiper control, 4586 tractors

1шт.

10

NOT USED IN THIS APPLICATION

1шт.

239805R1

TERMINAL CONNECTOR

TERMINAL, locking, For motor assy, 109223C91

2шт.

239808R1

CONNECTOR, ELEC

CONNECTOR, For motor assy, 109223C91

3шт.

1267542C91

PACKAGE

KIT, wiper linkage service, Consists of ref. nos. 3 thru 6

1шт.
