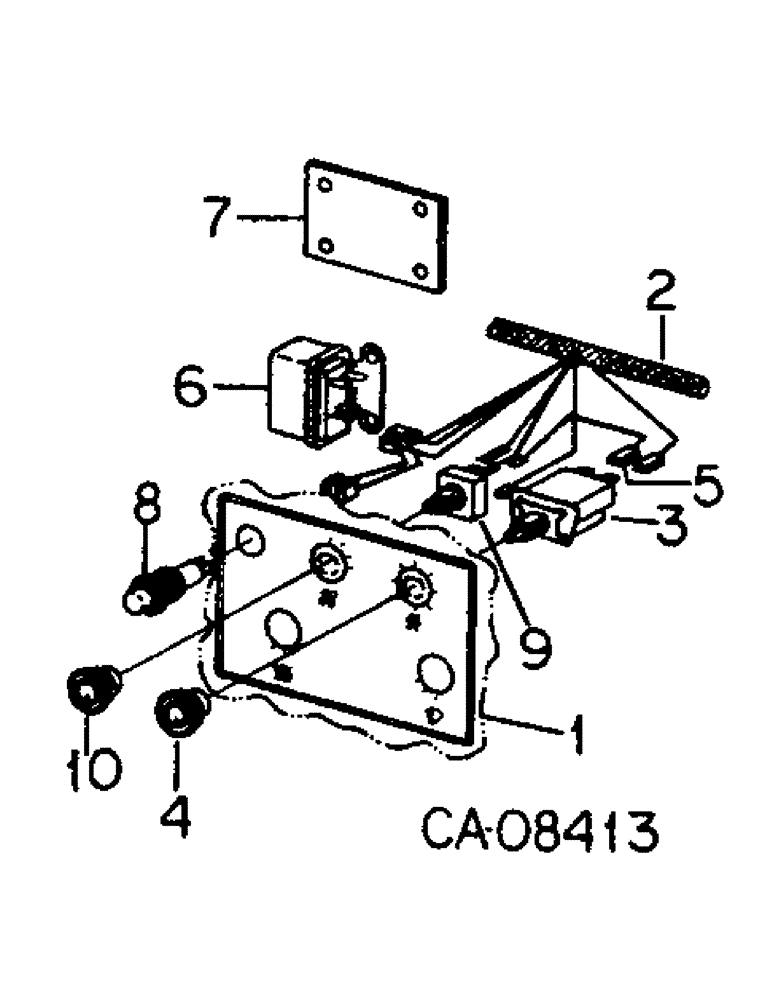

Запчасти Case IH 4568 (08-24) - ELECTRICAL, CONTROL CENTER TEMPERATURE CONTROLS AND CONNECTIONS (06) - ELECTRICAL

1

CAB ASSY, Refer to group 13

1шт.

2

107632C1

HARNESS

ASSY, console, 4568 tractors

1шт.

2

121827C1

HARNESS

ASSY, console, 4586 tractors

1шт.

3

70500C2

SWITCH

thermostat, 4568 tractors

1шт.

3

109268C2

SWITCH

thermostat, 4586 tractors

1шт.

109311H

JAM NUT

7/16-28 hex. face

1шт.

4

539810R1

KNOB

thermostat switch, 4568 tractors

1шт.

4

111282C1

KNOB

thermostat switch, 4586 tractors

1шт.

5

69452C1

CABLE ASSY.

CABLE ASSY, blower, Serial Range: switch-thermostat

1шт.

46893H

CONNECTION

CONNECTOR, two wire line

1шт.

6

437882C1

RELAY

a/c lockout

1шт.

7

132564C1

BRACKET

a/c lockout relay mounting

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

8

109369C92

LAMP

LIGHT ASSY, a/c indicator, Only serviceable

1шт.

71652C1

LENS

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP, type C-ZV trade #1815

1шт.

9

539052R2

SWITCH

blower, 4568 tractors

1шт.

9

168822C2

SWITCH

ASSY, blower, 4586 tractors

1шт.

103311H

NUT, 7/16-18 hex. face

1шт.

10

539810R1

KNOB

blower switch, 4568 tractors

1шт.

10

111282C1

KNOB

blower switch, 4586 tractors

1шт.
