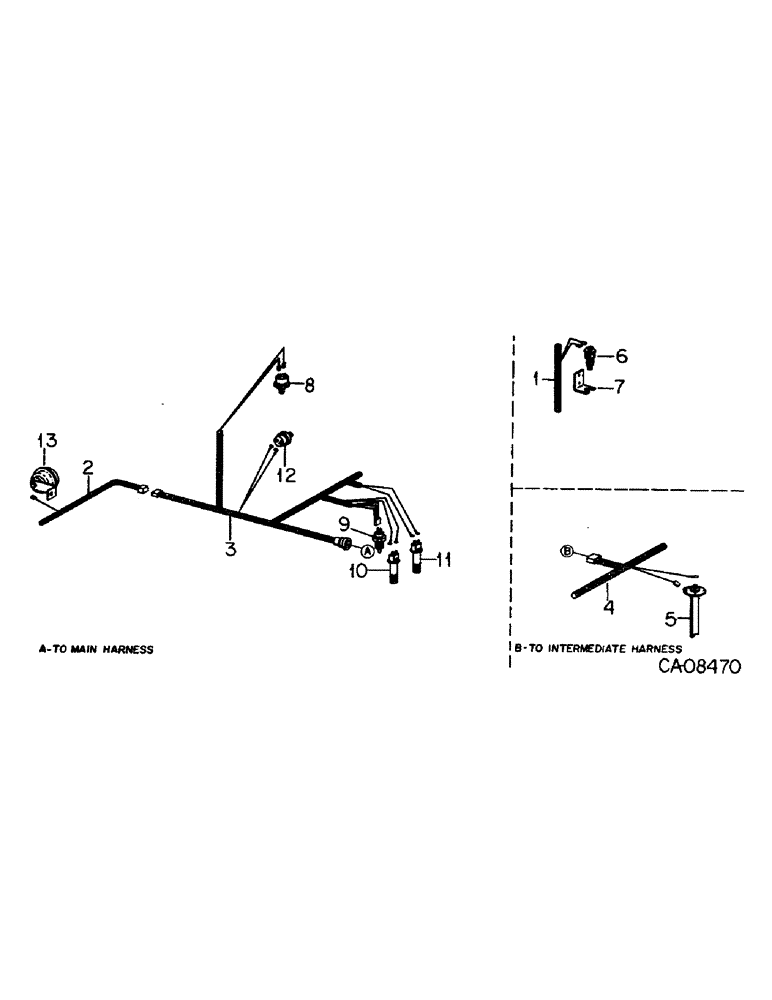

Запчасти Case IH 4568 (08-22) - ELECTRICAL, CHASSIS WIRING, SWITCHES AND RELATED PARTS, 4568 TRACTORS (06) - ELECTRICAL

1

107634C1

HARNESS

ASSY, vehicle main

1шт.

For service on this harness refer to electrical harness service kits under p/n 461834C91 and 461835C91

1шт.

2

107631C1

HARNESS

ASSY, vehicle front

1шт.

188395R1

WIRE CONNECTOR,Male

CONNECTOR, single blade

1шт.

3

107633C1

HARNESS

ASSY, vehicle engine

1шт.

For service on this harness refer to electrical harness service kits under p/n 461831C91

1шт.

4

107661C1

HARNESS

ASSY, vehicle rear

1шт.

5

SENDER, fuel gauge, Refer to grp 12

1шт.

6

121629C2

SWITCH

ASSY, neutral starting

1шт.

7

114246C1

BRACKET

neutral starting switch

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

8

531609R1

IGNITION SWITCH

SWITCH, air cleaner vacuum

1шт.

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

9

107637C1

GAUGE ASSY.

SENDER, differential low oil level

1шт.

10

704628C1

GAUGE ASSY.

TRANSDUCER, tachometer

1шт.

121552C1

INSULATOR

BOOT, transducer

1шт.

11

121623C1

SENSOR

TRANSDUCER, speedometer

1шт.

121552C1

INSULATOR

BOOT, transducer

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 class 5

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-NF jam type 5

2шт.

138506

LOCK WASHER,Ext Tooth, 3/4"

WASHER, 3/4 ext lock

2шт.

131182

WASHER, LOCK

WASHER, no. 8 lt lock

2шт.

120622

NUT,#8-32

2шт.

12

132244R91

SWITCH

hourmeter

1шт.

13

9000239

HORN

ASSY, electric

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.
