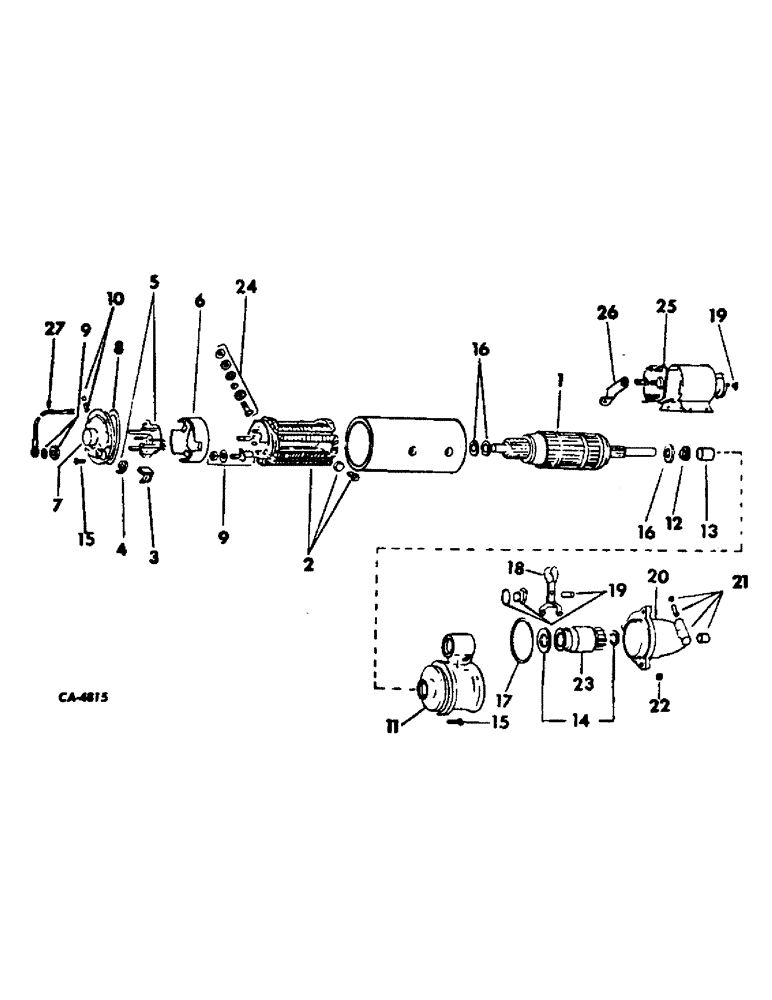

Запчасти Case IH 4568 (08-10) - ELECTRICAL, CRANKING MOTOR, PRESTOLITE (06) - ELECTRICAL

121555C91

STARTER MOTOR

MOTOR ASSY, cranking, Replaces 107424C91

1шт.

484667R1

12 PT SCREW,Flg, 5/8"-11 x 1 1/2"

SCREW, 5/8-11 x 1-1/2 12-pt cap

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

121657C1

BAR

booster cable ground

1шт.

1

71619C2

ARMATURE

ASSY

1шт.

2

71620C1

PACKAGE

COIL ASSY, field

1шт.

3

71621C91

PACKAGE

brush set

1шт.

4

71623C1

BRUSH HOLDER

HOLDER ASSY, brush plate

1шт.

5

71622C91

PACKAGE

brush spring

1шт.

6

71624C91

KIT

PACKAGE, insulator brush plate and holder assy

1шт.

7

71625C1

FRAME ASSY, commutator end

1шт.

8

71626C91

GASKET

PACKAGE, gasket commutator end frame

1шт.

9

71627C91

PACKAGE

terminal stud, commutator end

1шт.

10

71628C91

BEARING

PACKAGE, bearing and wick

1шт.

11

71629C1

HOUSING

ASSY, lever, Consists of ref. nos. 12 and 13

1шт.

12

544667R91

SEAL,22.23mm ID x 31.85mm OD x 4.78mm Thk

SEAL, lever housing oil

1шт.

13

71635C1

BUSHING

lever housing

1шт.

14

71630C91

GASKET

PACKAGE, lever housing washer

1шт.

15

71638C91

SCREW

PACKAGE, commutator and lever housing screw

1шт.

16

71639C91

PACKAGE

thrust washer

1шт.

17

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

pinion housing, seal

1шт.

18

71631C1

YOKE

ASSY, lever

1шт.

19

71632C91

PACKAGE

lever adjusting parts

1шт.

20

71636C1

HOUSING ASSY, drive end

1шт.

21

71633C91

PACKAGE

bushing pinion housing

1шт.

22

71637C1

PLUG

drive end housing

1шт.

23

331884C91

DRIVE

MOTOR, drive

1шт.

24

71634C91

PACKAGE, field terminal stud

1шт.

25

71649C2

SWITCH

solenoid, For components see list of parts under details of solenoid switch

1шт.

26

71650C1

SUPPORT, solenoid to motor terminal

1шт.

27

71651C1

CABLE ASSY, solenoid switch

1шт.
