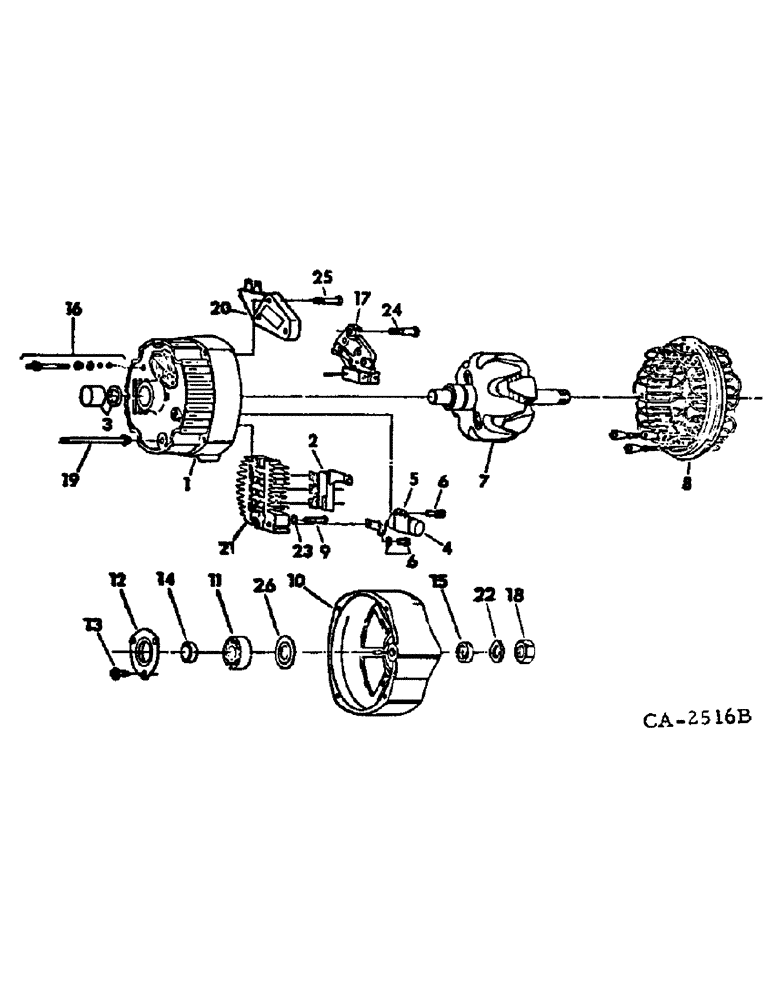

Запчасти Case IH 4568 (08-05) - ELECTRICAL, ALTERNATOR-GENERATOR, DELCO-REMY (06) - ELECTRICAL

1102375

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 72 ampere, Furnish 1103184

1шт.

1100587

ALTERNATOR

ALTERNATOR-GENERATOR, 72 ampere, Furnish 1103184

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87297246

REMAN-ALTERNATOR

Reman for New PN 1100587

1шт.

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Part Number

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

BOLT, 3/8 x 3-1/2 pln type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex. mach screw

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

390305C1

WASHER

WASHER, 3/8 znd harden

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

BOLT, 5/16-18 x 1 znd hex-hd cap, 4568 tractor

1шт.

557265R1

WASHER

WASHER, .344 x 3/4 x .105, 4568 tractor

1шт.

390305C1

WASHER

WASHER, 3/8 znd harden, 4586 tractor

1шт.

25751R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

SCREW, 5/16-18 x 1 znd hex-hd cap, type 8, 4586 tractor

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

WASHER, .344 x 1.0 x .098 hardened, 4586 tractor

1шт.

1

1852101

FRAME

FRAME, slip ring end

1шт.

2

1971528

RECTIFIER

DIODE TRIO, negative

1шт.

3

423649C91

BALL BEARING

BEARING, slip ring end

1шт.

4

801824

CAPACITOR

CAPACITOR

1шт.

5

1869573

BRACKET

BRACKET, capacitor

1шт.

6

1851612

SCREW

SCREW, capacitor lead attaching

2шт.

7

1891598

ROTOR

ROTOR ASSY

1шт.

8

1851572

STATOR

STATOR ASSY, 72 ampere

1шт.

9

1970145

SCREW

SCREW, rectifier bridge attaching

1шт.

10

1976808

FRAME

PACKAGE, drive end frame, Replaces 1970525 & 1976137, Consists of

1шт.

NSS

NOT SOLD SEPARAT

FRAME

1шт.

NSS

NOT SOLD SEPARAT

BOLT

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

11

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, drive end ball

1шт.

12

1971933

PLATE, drive end ball bearing retainer

1шт.

13

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW, retainer plate attaching

3шт.

14

NOT USED IN THIS APPLICATION

1шт.

15

A49733

COLLAR

COLLAR, outside drive end, Replaces 1959991, Use w/frame 1976137

1шт.

15

1959991

COLLAR

COLLAR, outside drive end, Use w/frame 1970525

1шт.

16

1975471

PACKAGE

PACKAGE, ground terminal, Replaces 1846900

1шт.

17

1876873

HOLDER

BRUSH HOLDER AND BRUSH

1шт.

18

1915172

NUT

NUT, drive end shaft

1шт.

19

1965975

BOLT, thru

4шт.

20

1116392

REGULATOR

REGULATOR, Replaces 1116387

1шт.

21

1875627

HOLDER

BRIDGE, positive rectifier

1шт.

22

1941978

WASHER

WASHER, drive end shaft nut lock

1шт.

23

1847933

WASHER

WASHER, rectifier bridge attaching screw spring

2шт.

24

1846864

SCREW

SCREW, insulated brush holder

2шт.

25

1971519

SCREW

SCREW, ground brush holder

1шт.

26

NOT USED IN THIS APPLICATION

1шт.

1851714

KIT

PACKAGE, relay terminal

1шт.

1894976

STRIPPER PACKAGE

PACKAGE, alternator generator conversion, Consists of

1шт.

NSS

NOT SOLD SEPARAT

CABLE ASSY

1шт.

1894559

HOLDER

HOLDER ASSY, brush & brush

1шт.

1894570

FRAME

FRAME ASSY, slip ring end

1шт.

9436831

BEARING

BEARING, slip ring end frame

1шт.

1961323

SEAL

SEAL, oil

1шт.

1894586

SCREW

SCREW ASSY, reg ground

1шт.

1974020

SCREW

SCREW, brush holder pivot

1шт.

1894568

ELEC CONNECTOR

TERMINAL, relay

1шт.

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

1876681

SCREW

SCREW ASSY, brush holder insulated

2шт.

NSS

NOT SOLD SEPARAT

TERMINAL, stud

1шт.

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

NSS

NOT SOLD SEPARAT

NUT ASSY

1шт.
