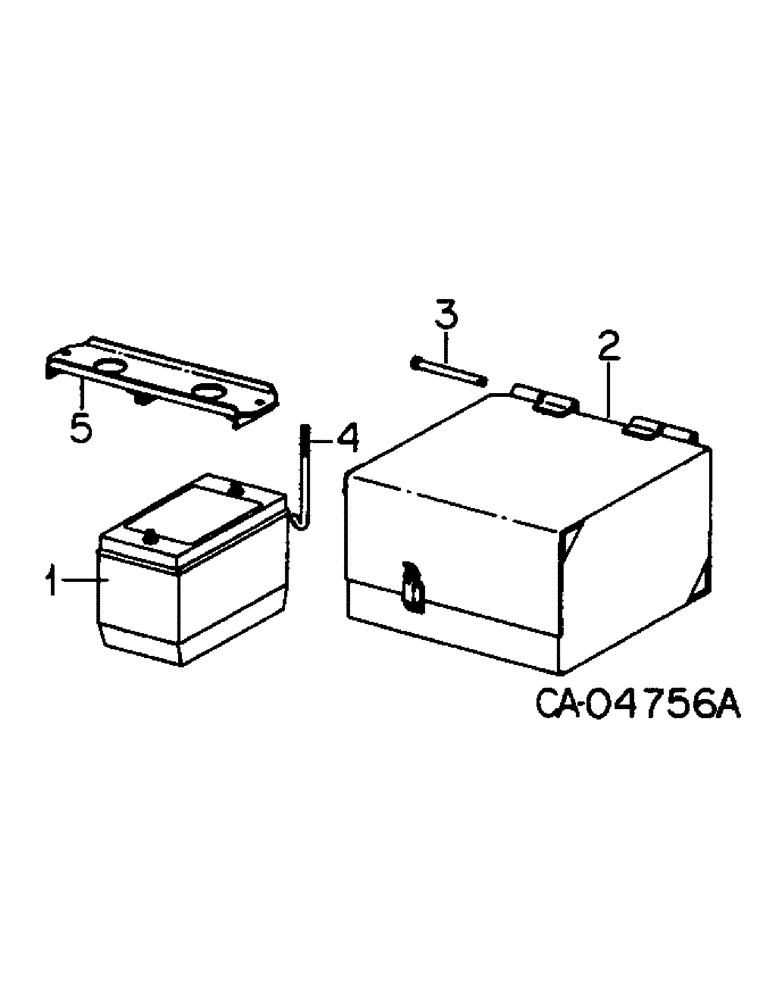

Запчасти Case IH 4568 (08-03) - ELECTRICAL, BATTERY AND MOUNTING, 4568 TRACTORS (06) - ELECTRICAL

1

IHCLM31S

BATTERY, maintenance free

4шт.

522639C1

NUT

battery terminal special

8шт.

2

119017C1

TERMINAL BOX

BOX ASSY, battery

2шт.

3

21105R1

HEADED PIN,9.53mm OD x 123.83mm L

PIN, 3/8 x 4-7/8 headed

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

4

65640C1

BOLT

battery hold down

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 5/16 znd flat

4шт.

142745

NUT, WING

NUT, 5/16-18 wing

4шт.

5

119021C1

CLAMP

ASSY, battery hold

2шт.

120394

WASHER,3/8", SAE

WASHER, 3/8 znd flat

8шт.

114261C1

PAD

INSULATOR, battery box

8шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 unc hex. 2 way g-a plated

8шт.
