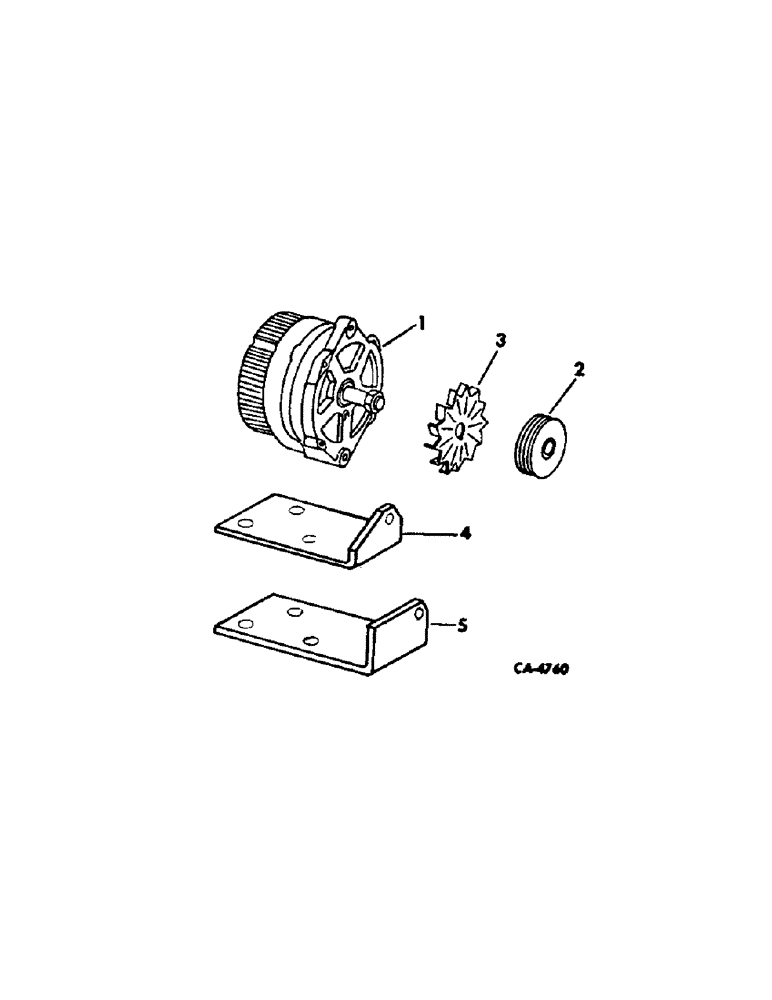

Запчасти Case IH 4568 (08-01) - ELECTRICAL, ALTERNATOR-GENERATOR PULLEY AND FAN (06) - ELECTRICAL

1

1102375

ALTERNATOR

ALTERNATOR-GENERATOR, Furnish 1103160, For 4568 tractors, For 4586 tractors w/serial no. 1049 and below

1шт.

For components, see list of parts under details of alternator-generator.

1шт.

1

1100587

ALTERNATOR

ALTERNATOR-GENERATOR, Furnish 1103160, For 4568 tractors, For 4586 tractors w/serial no. 1049 and below

1шт.

For components, see list of parts under details of alternator-generator.

1шт.

1

87297246

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

1103184

ALTERNATOR

ALTERNATOR-GENERATOR, Replaces 1102922 & 1103160, For 4586 tractors w/serial no. 1050 and above

1шт.

For components, see list of parts under details of alternator-generator.

1шт.

30033R1

BOLT,Hex, M10 x 90mm, Cl 10.9

BOLT, M10 x 90 phc class 10.9, alternator mounting

1шт.

30327R1

WASHER,M10 x 21.5 x 2.5, HT

WASHER, 10.8 x 21 x 2.5 MM, alternator mounting

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 phc p/t class 10, alternator mounting

1шт.

30281R1

NUT,M6, Cl 10

NUT, M6 class 10, alternator "bat." terminal

1шт.

933833R1

LOCK WASHER,M6

WASHER, 6 mm lock, Alternator "bat." terminal

1шт.

30004R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

BOLT, M8 x 30 phc class 10.9, brace to alternator

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

WASHER, .344 x 1.000 x .098 phc hdn, brace to alternator

1шт.

2

400131R1

PULLEY

PULLEY, alternator-generator double, 4586 tractors, Serial Range: -1500

1шт.

2

400131R1

PULLEY

PULLEY, alternator-generator double, all 4568 tractors

1шт.

2

1962505

PULLEY

PULLEY, alternator-generator, 4586 tractors, Start Serial: 1501

1шт.

3

221425R1

FAN

FAN, alternator-generator

1шт.

4

109678C1

BRACKET

BRACKET, alternator mtg front

1шт.

5

109679C1

BRACKET

BRACKET, alternator mtg rear

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 hex-hd cap

3шт.

25545R1

WASHER

WASHER, .469 x .922 x .134 phc hdn

3шт.
