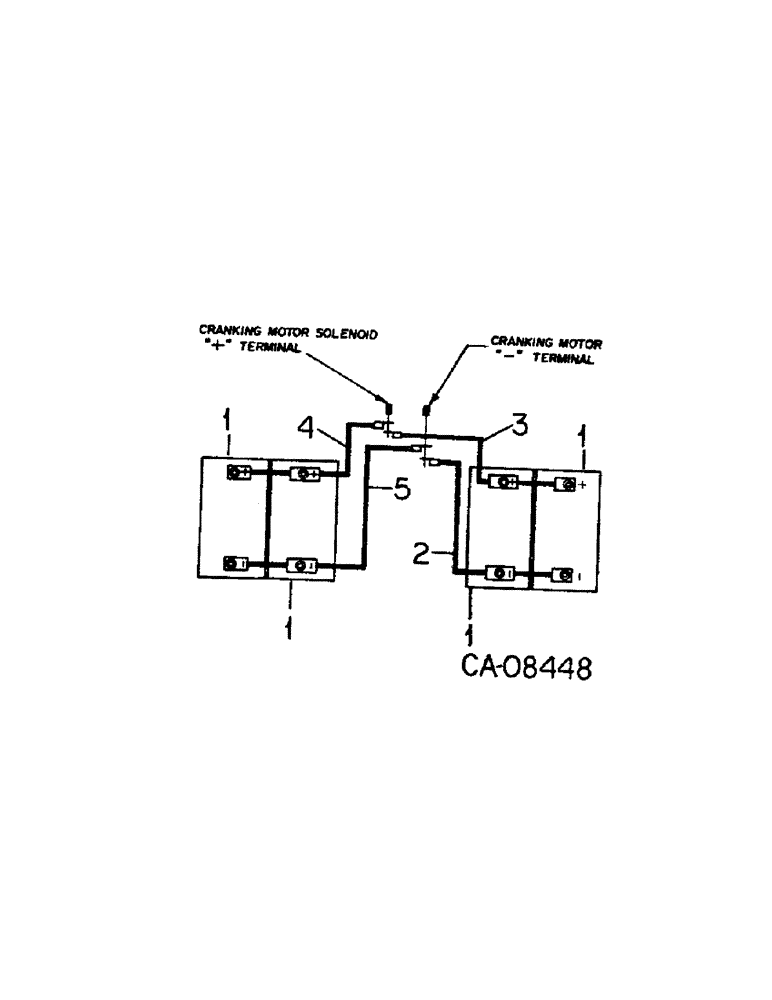

Запчасти Case IH 4568 (08-01[A]) - ELECTRICAL, BATTERY AND CONNECTIONS, 4568 TRACTORS (06) - ELECTRICAL

1

IHCLM31S

BATTERY, maintenance free

4шт.

522639C1

NUT

battery terminal special

8шт.

2

107612C1

CABLE ASSY.

CABLE ASSY, ground to battery RH

1шт.

3

107613C1

CABLE

ASSY, RH battery to cranking motor solenoid

1шт.

121589C1

INSULATOR

battery cable boot, Furnish as part of 107613C1

1шт.

4

107610C1

CABLE ASSY.

CABLE ASSY, LH battery to cranking motor solenoid

1шт.

121589C1

INSULATOR

battery cable boot, Furnish as part of 107610C1

1шт.

5

107611C1

CABLE ASSY.

CABLE ASSY, ground to battery LH

1шт.

313445C1

CLAMP

cable

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.
