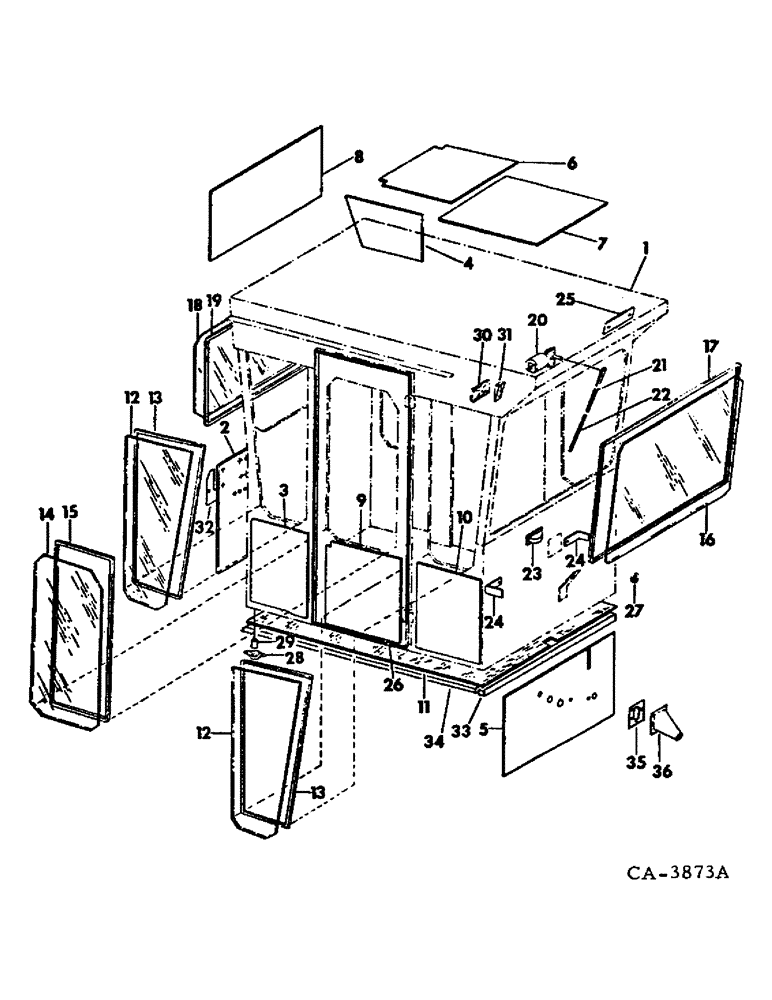

Запчасти Case IH 4568 (13-06) - CAB AND SUPERSTRUCTURE, CAB AND ACCESSORIES, 4568 TRACTOR (05) - SUPERSTRUCTURE

64875C92

PARTS ACCESSORY, cab upholstery panels, Consists of

1шт.

132719C91

PANEL ASSY

1шт.

538065R1

DECAL

PRODUCT GRAPHIC

1шт.

539403R1

CAUTION DECAL

PRODUCT GRAPHIC

1шт.

61908C1

DECAL

PRODUCT GRAPHIC

1шт.

118278C1

KIT, plastic toggle nut

1шт.

26664R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

SCREW, no. 8-18 x 1-1/2 PHC p/hdcr tap

4шт.

1

110053C91

CAB

ASSY, for component details see cab assembly listing

1шт.

71869C1

GROMMET

PLUG, orbitrol mtg brkt hole

1шт.

147189C2

MAT

carpet floor

1шт.

2

70380C1

PANEL

lower rear wall

1шт.

3

70381C1

PANEL, lower rear side wall upholstery

2шт.

4

70385C1

FOAM

PANEL, upper rear side wall upholstery, LH

1шт.

4

70386C1

FOAM

PANEL, upper rear side wall upholstery, RH

1шт.

5

70379C1

PANEL

front wall upholstery

1шт.

6

70387C1

FOAM

PANEL, roof rear

1шт.

7

70388C1

PANEL

rood frt upholstery

1шт.

8

70389C1

FOAM

PANEL, top rear wall upholstery

1шт.

9

70383C1

FOAM

PANEL, door upholstery

2шт.

10

70390C1

FOAM

PANEL, front side wall upholstery

2шт.

11

118992C1

MAT

floor

1шт.

12

68645C1

GLASS

cab side window

4шт.

13

68649C1

PROFILE

STRIP, side window glass

4шт.

14

68646C1

GLASS

cab door

2шт.

15

68650C1

MOLDING

STRIP, door window glass molding

2шт.

16

68647C1

GLASS

cab front window

1шт.

17

68651C1

PROFILE

STRIP, front window glass molding

1шт.

18

68648C1

GLASS

cab rear window

1шт.

19

68652C1

MOLDING

STRIP, rear window glass molding

1шт.

20

69705C91

MOTOR

ASSY, windshield wiper

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

21

404242R1

ARM

ASSY, wiper

1шт.

22

166257H1

BLADE

wiper

1шт.

26962R1

SCREW

no. 5-40 x 3/4 PHC

1шт.

12539R1

NUT, no. 5-40 PHC hex.

1шт.

23

68671C1

ASH TRAY

TRAY ASSY, ash

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 sheet metal

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

24

68670C1

CLIP

hose

4шт.

27294R1

SELF-TAP SCREW,Hex Washer, 1/4" - 14 x 3/4"

SCREW, 1/4-14 x 3/4 hex-wash-hd

1шт.

25

70692C1

LARGE PLATE

PLATE, radio cover

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex. hd

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

26

71243C1

STRIP

PING, weather

2шт.

27

71870C1

GROMMET, rubber, Replaces 70329C1

1шт.

28

70395C2

ISOLATOR

INSULATOR, cab

4шт.

27330R1

NUT, 3/4-10 znd thick hex type 8

4шт.

24894R1

BOLT,Hex, 3/4" - 10 x 4", Gr 8

4шт.

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

3/4 x 2-1/2 x 3/4

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd

8шт.

120396

WASHER

17/32 x 1-1/16 x .074 znd

8шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 12-13 CAD lock

8шт.

29

69408C1

SPACER

cab insulator

4шт.

30

533511R1

MIRROR

rear view

1шт.

31

68669C1

BRACKET

rear view mirror

1шт.

27294R1

SELF-TAP SCREW,Hex Washer, 1/4" - 14 x 3/4"

SCREW, 1/4-14 x 3/4 hex-wash-hd

1шт.

32

70393C1

COVER, aux valve

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1/2 zn hex-washer-hd tap

3шт.

33

70392C1

GASKET, platform short foam

2шт.

34

70391C1

GASKET, platform long foam

2шт.

35

NOT USED IN THIS APPLICATION

1шт.

36

119011C1

BOOT

clutch pedal

1шт.

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP, hose

1шт.

534441R1

FLUID

ADHESIVE, 1 qt can upholstery

1шт.
