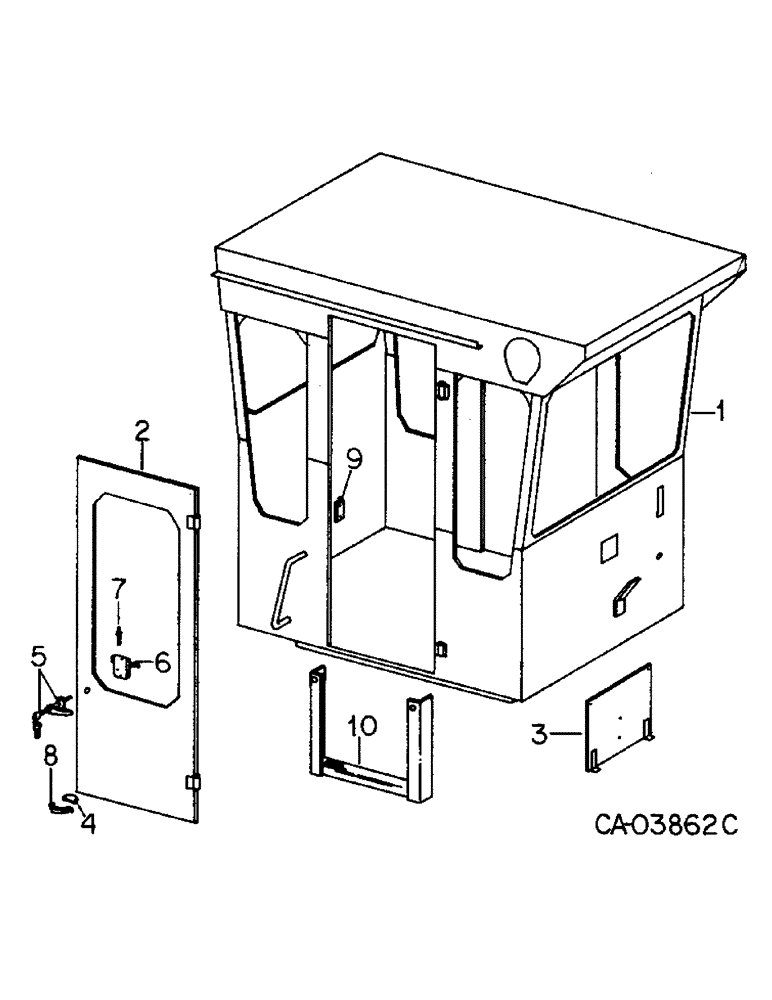

Запчасти Case IH 4568 (13-03) - CAB AND SUPERSTRUCTURE, CAB ASSEMBLY, 4568 TRACTOR (05) - SUPERSTRUCTURE

1

110053C91

CAB

ASSY, Consists or ref. nos. 2 and 3

1шт.

2

70897C1

DOOR

ASSY, LH

1шт.

2

70898C1

DOOR

ASSY, RH

1шт.

3

68617C91

DOOR

ASSY, access

1шт.

181128

SCREW,Hex, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 x 2-1/2 PHC hex-hd cap

2шт.

4

70404C1

PAD

door keeper

2шт.

5

147195C1

HANDLE

ASSY, door, Replaces 70092C1 by ordering two handles, 147195C1

2шт.

6

70042C1

LATCH

HANDLE ASSY, LH door inside

1шт.

6

70043C1

LATCH

HANDLE ASSY, RH door inside

1шт.

7

142089C1

RIVET

3/16 x 3/4 pop, Replaces 70159C1

6шт.

8

70403C1

PIN

SUPPORT, door keeper

2шт.

27705R1

SCREW, 1/4 x 1 self tapping

4шт.

9

70921C1

STOP ASSY, door latch

2шт.

328400C1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW, 1/4-14 x 3/4 hex-hd tap

4шт.

NLS

NO LONGER SERVICED

1/4 znd ext-tooth lock

4шт.

10

110142C2

STEP

ASSY, mounting

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

102378

NUT, 1/2 type 5

4шт.
