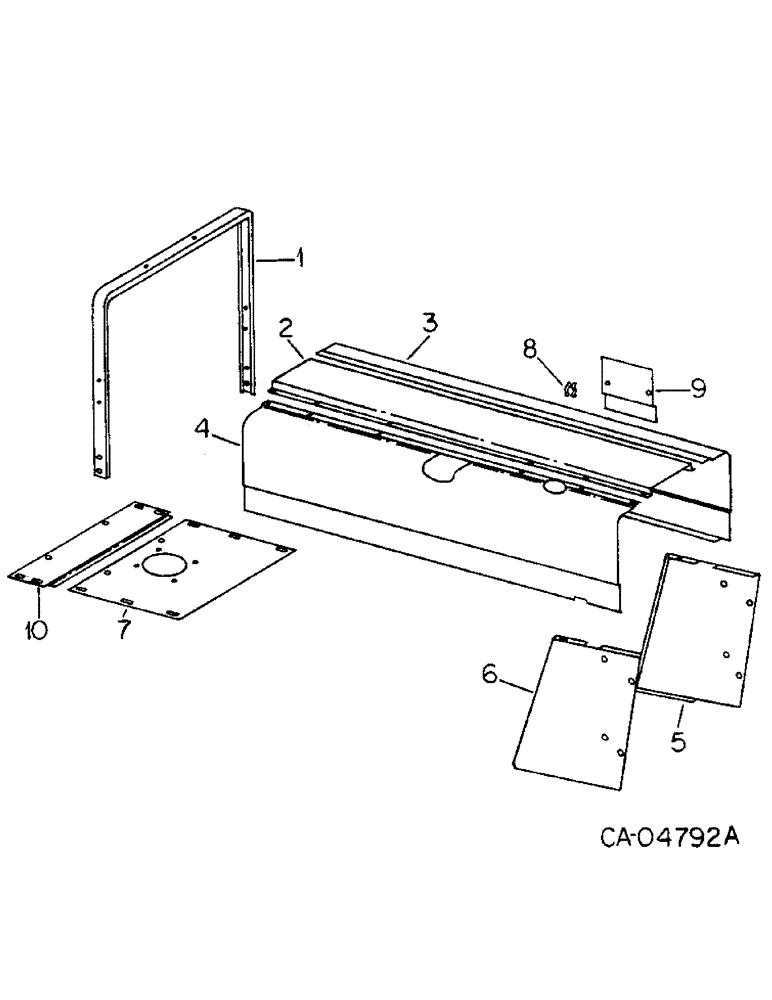

Запчасти Case IH 4568 (13-01) - CAB AND SUPERSTRUCTURE, HOOD AND PANELS, 4568 TRACTOR (05) - SUPERSTRUCTURE

1

114249C1

SHOCK ABSORBER

BRACKET ASSY, rear hood mtg

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

4шт.

1017952R1

CAP

PLUG, plastic

2шт.

1017876R1

PLUG,Cap, .974" OD

plastic

1шт.

70137C1

NUT

5/16-18 cage

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 CAD lock

4шт.

2

105163C1

HOOD ASSY, top

1шт.

3

105161C1

HOOD

ASSy, left side

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

8шт.

446470

BRAKE FLUID TANK

.375 x 1.125 x .051 znd pln

8шт.

4

105162C1

HOOD

right side

1шт.

180007

HOOK

5/16-18 x 3/4 hex-hd cap

9шт.

495-81001

WASHER,5/16"

.375 x 1.125 x .051 znd pln

9шт.

5

109898C1

SKIRT

hood left side

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

4шт.

446470

BRAKE FLUID TANK

.375 x 1.125 x .051 znd pln

4шт.

6

109897C1

SKIRT

hood right side

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

4шт.

495-81001

WASHER,5/16"

.375 x 1.125 x .051 znd pln

4шт.

70157C1

NUT

SERT, 3/8-16

1шт.

7

71648C3

LARGE PLATE

PLATE ASSY, cab floor frt

1шт.

448453

SCREW,Hex Hd, 1/4" x 1"

1/4 x 1 h/hd tap

10шт.

8

376787R1

WASHER

RETAINER, hood cover

2шт.

9

105164C1

COVER

hood access

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW

2шт.

10

71647C3

LARGE PLATE

PLATE ASSY, cab floor rear

1шт.

448453

SCREW,Hex Hd, 1/4" x 1"

1/4-20 x 1 C-Z hex-hd tap

6шт.
