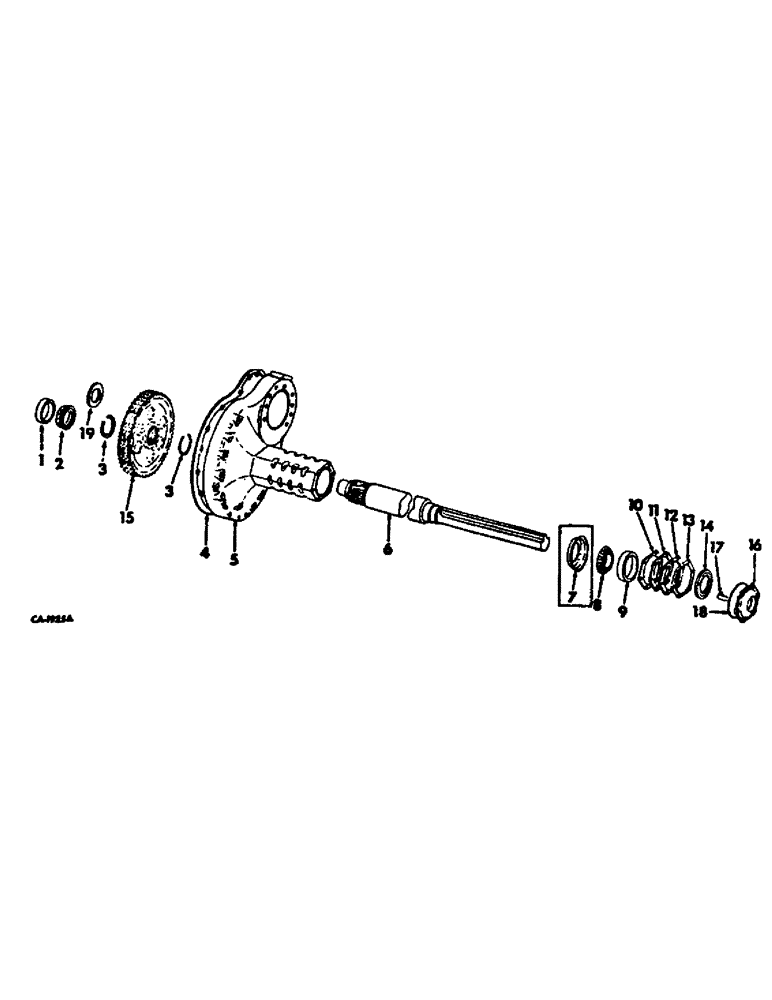

Запчасти Case IH 4568 (07-22) - DRIVE TRAIN, AXLES AND CARRIER (04) - Drive Train

1

ST807

BEARING CUP,122.24mm OD x 36.51mm W

BEARING, rear axle inner cup

4шт.

2

ST2170

TAPERED BEARING,2.5943" ID x 4.8135" OD x 1.7188"

BEARING ASSY, axle inner cone

4шт.

3

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap

2шт.

4

380225R2

GASKET

axle carrier

4шт.

5

380224R6

CARRIER

axle

4шт.

271568

PIPE FITTING,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

56шт.

271571

SEALING RING COLLAR

5/8-11 x 4-1/4 hex-hd cap

16шт.

6

529786R1

AXLE

118 in.

4шт.

7

NOT USED IN THIS APPLICATION

1шт.

8

13253DC

CONE

BEARING ASSY, axle outer cone

4шт.

9

ST810

ROLLER BEARING,92.075 mm ID x 150 mm OD x 35.966 mm

BEARING, axle outer cup

4шт.

10

380227R2

SHIM

axle carrier cap, .007

12шт.

11

380228R2

SHIM

axle carrier, .012, 8 or as required

1шт.

12

380229R2

SHIM

axle carrier cap, .030

1шт.

13

380230R2

SHIM

axle carrier cap, .004

1шт.

13

385158R2

SHIM

axle carrier cap, .003

1шт.

14

144139C1

OIL SEAL

axle carrier cap oil, Replaces 529466R91

4шт.

15

GEAR, bull, Refer to differential listing

1шт.

16

528716R1

COVER

CAP, axle carrier

4шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

24шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

17

NOT USED IN THIS APPLICATION

1шт.

18

529133R1

RING

axle carrier cap sealing

4шт.

19

NOT USED IN THIS APPLICATION

1шт.
