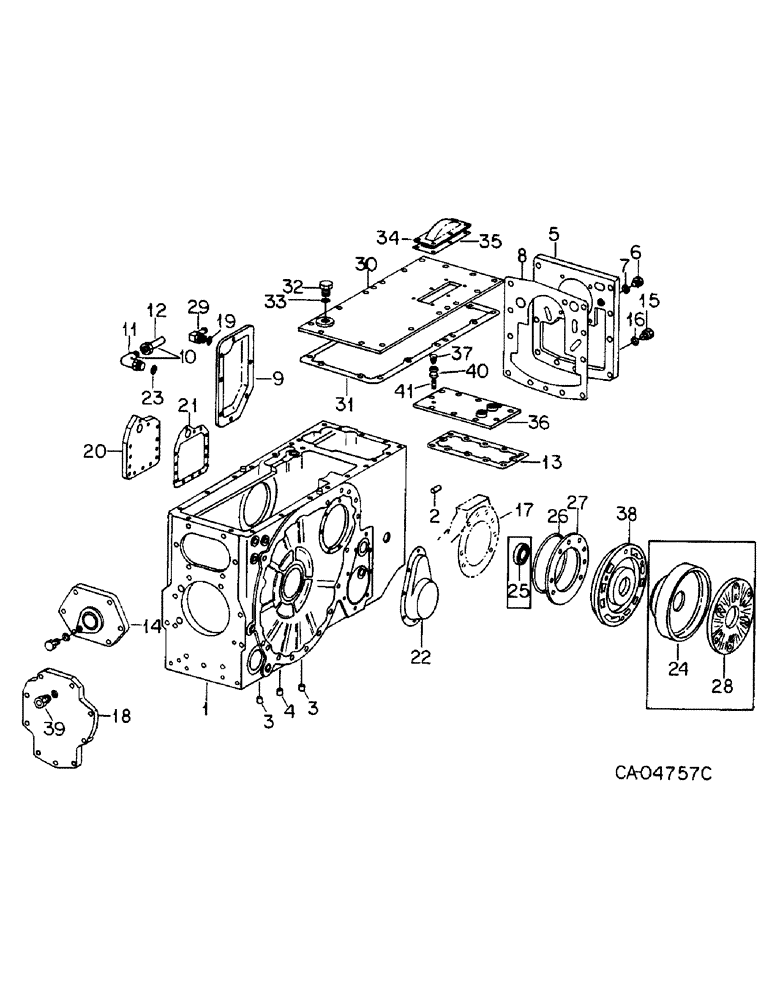

Запчасти Case IH 4568 (07-18) - DRIVE TRAIN, FRONT AXLE CENTER FRAME (04) - Drive Train

1

67890C91

FRAME ASSY

rear, Includes ref. nos. 2, 3 and 4

1шт.

383331R1

PLUG,Cup, 4.26"

torsion bar cup

1шт.

2

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 dowel

1шт.

3

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-soc-hd drain

2шт.

4

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 automotive sq-soc-hd pipe

1шт.

5

67892C2

COVER, input

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

10шт.

6

9410362

PLUG,Hex Hd, 1 3/16"-12 ORB

1-3/16-12 C-Z str-thd o-ring boss, oil level 31 gallon

1шт.

7

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube, large

1шт.

8

71902C1

GASKET

GASKET, input cover

1шт.

9

114272C1

COVER, drive attach opening

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

8шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

124955C1

ELBOW, hose adapter transfer case return

1шт.

10

114267C1

ELBOW,90 Degree, 1 1/2" Hose x 1 7/8"-12 ORB Beaded

hose adapter, front, Optional w/elbow 71406C91

2шт.

10

71406C91

ELBOW ASSY, hose adapter, Optional w/114267C1, Consists of

1шт.

9410983

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 7/8"-12, O-Ring

1шт.

114375C1

TUBE

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

NSS

NOT SOLD SEPARAT

NUT

1шт.

11

9410983

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 7/8"-12, O-Ring

1-7/8-12 37 deg hyd flared tube adj str th 90 deg, front

1шт.

12

114375C1

TUBE ASSY, 1-1/2 hose adapter, front

1шт.

13

67905C1

GASKET

diff top small cover

1шт.

14

67893C1

COVER

draft control adj opening

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

6шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

15

9410356

PLUG

7/16-20 C-Z str thd-o-ring boss, oil level front

2шт.

17

CARRIER, axle, Refer to axle listing this group

1шт.

18

380272R1

COVER

IPTO opening, 4568 tractor

1шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

9шт.

18

142329C1

COVER, IPTO opening, 4586 tractor, Replaces 64530C1

1шт.

179888

LEVER

BOLT, 1/2 x 1-7/8 pln type 5

9шт.

474517C2

GASKET

TUBE, gasket, eliminator

1шт.

19

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

20

118848C1

COVER

pump opening

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

12шт.

21

382244R4

GASKET

pump opening cover

1шт.

22

382256R1

COVER ASSY

COVER, oil filter

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

8шт.

23

301016R1

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1.72 OD x .118

2шт.

24

528688R2

HOUSING

RETAINER, LH bull pinion brg, 4568 tractor

1шт.

24

528689R2

RETAINER, RH bull pinion brg, 4568 tractor

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

12шт.

25

530806R91

SEAL,53.59mm ID x 76.33mm OD x 9.53mm Thk

pinion shaft outer, 4568 tractor

2шт.

26

530789R1

O-RING,6.712" ID x 0.139" Width

O-RING, bull pinion brg and oil seal retainer

2шт.

27

528690R1

SHIM

retainer hsg, .035, 2 or as required, 4568 tractor

1шт.

27

391816R1

SHIM

retainer, .035, 4586 tractor, 2 or as required

1шт.

27

528691R1

SHIM

retainer hsg, .012, 4 or as required, 4568 tractor

1шт.

27

391817R1

SHIM

retainer, .012, 4586 tractor, 4 or as required

1шт.

27

528692R1

SHIM

retainer, .007, 6 or as required, 4568 tractor

1шт.

27

391818R1

SHIM

retainer, .007, 4568 tractor, 6 or as required

1шт.

27

528693R1

SHIM

retainer hsg, .004, 1 or as required, 4568 tractor

1шт.

27

391819R1

SHIM

retainer, .004, 4586 tractor, 1 or as required

1шт.

27

528694R1

SHIM

retainer hsg, .003, 4568 tractor

1шт.

27

391820R1

SHIM

retainer hsg, .003, 4586 tractor, 1 or as required

1шт.

28

70756C1

COVER, LH axle carrier, 4568 tractor

1шт.

28

73757C1

COVER, RH axle carrier, 4568 tractor

1шт.

23891R1

12 PT SCREW

SCREW, 5/8-11 x 4-3/4 12 pt flange

8шт.

29

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 37 deg hyd flared tube adj str thd 90 deg

1шт.

30

109833C1

COVER ASSY, diff top main, front

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

16шт.

377028R1

O-RING,0.989" ID x 0.07" Width

1 x 1-1/8 class 5

1шт.

31

GASKET, diff top main cover, For service use

1шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

32

9410362

PLUG,Hex Hd, 1 3/16"-12 ORB

1-3/16-12 str thd o-ring boss oil filler

1шт.

33

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

34

67903C2

COVER, diff bevel gear

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

35

GASKET, diff bevel gear case, For service use

1шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

36

67922C1

COVER

diff top small, 4586 tractors, Serial Range: -1500

1шт.

36

67922C1

COVER

diff top small, all 4568 tractors

1шт.

36

132728C2

COVER

ASSY, frt diff top small, 4586 tractors, Start Serial: 1501

1шт.

9410358

PLUG

9/16-18

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 tube

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

37

152127H1

BREATHER,1/8"-27, Short

1/8-27 axle, Replaces 110891H

1шт.

38

71865C91

HOUSING

ASSY, bull pinion brg & oil seal, retainer, 4586 tractors, Serial Range: -1500

2шт.

21280R1

PLUG,Cup, 3"

3 in. OD cup

2шт.

21371R1

SCREW

5/8-11 x 2 hex-hd cap

8шт.

39

124949C2

CAGE

GAGE, oil level sight, 4586 tractors, Serial Range: -1764

1шт.

39

142288C1

PLUG

GAGE, oil level sight, 4586 tractors, Start Serial: 1765

1шт.

40

105408

COUPLING,1/8" NPT

1/8-27 pipe pln

1шт.

41

114794

NIPPLE,Nipple, 1/8" NPT x 2"

PIPE, 1/8-27 x 2.00 pln

1шт.

19968R1

DOWEL,3/4" x 1 3/4"

3/4 x 1-3/4

1шт.

19969R1

DOWEL,3/4" x 2 1/4"

3/4 x 2-1/4

1шт.

16

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Front

2шт.
