Запчасти Case IH 4568 (07-17) - DRIVE TRAIN, PROPELLER SHAFT (04) - Drive Train

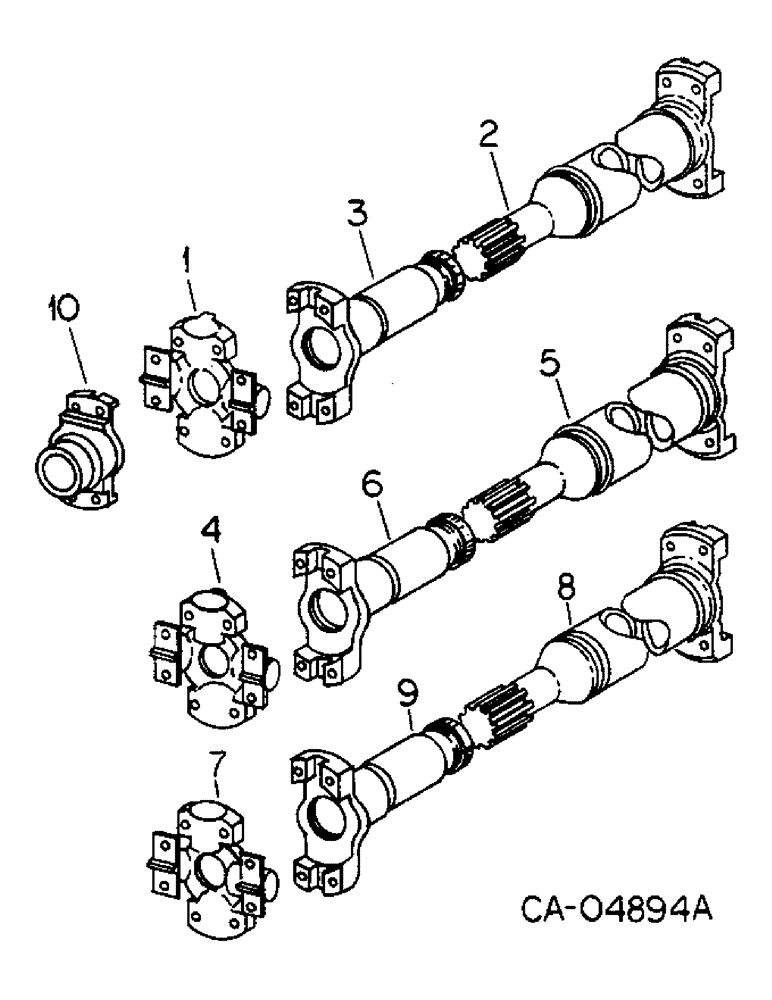

Схема запчастей Case IH 4568 - (07-17) - DRIVE TRAIN, PROPELLER SHAFT (04) - Drive Train
10
3
4
6
5
1
7
2
9
8

Артикул

Название

Примечание

Количество

SHAFT ASSY, top front drive, Serviced only by ordering piece parts from stock

1шт.

1

870638R91

BEARING

SPIDER AND BEARING

2шт.

25797R1

BOLT,Hex, 7/16" - 20 x 1 1/8", Gr 8

7/16-NF x 1-1/8 phc type 8

8шт.

2

71727C1

YOKE, tube

1шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-NF x 2 phc type 8

4шт.

3

71728C1

YOKE, slip

1шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-NF x 2 phc type 8

4шт.

SHAFT ASSY, bottom front drive, Serviced only by ordering piece parts from stock

1шт.

4

71783C1

BEARING ASSY

SPIDER AND BEARING

2шт.

25797R1

BOLT,Hex, 7/16" - 20 x 1 1/8", Gr 8

7/16-NF x 1-1/8 phc type 8

8шт.

5

71729C1

YOKE, tube, all 4568 tractors, 4586 tractors, Start Serial: 1501

1шт.

5

127592C1

YOKE, tube assy, 4586 tractors, Serial Range: -1500

1шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-NF x 2 phc type 8

4шт.

6

71730C1

YOKE, slip, all 4568 tractors, 4586 tractors, Start Serial: 1501

1шт.

6

127593C1

YOKE ASSY, slip, 4586 tractors, Serial Range: -1500

1шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-NF x 2 phc type 8

4шт.

SHAFT ASSY, bottom rear drive, Serviced only by ordering piece parts from stock

1шт.

7

71783C1

BEARING ASSY

SPIDER AND BEARING

2шт.

25797R1

BOLT,Hex, 7/16" - 20 x 1 1/8", Gr 8

7/16-NF x 1-1/8 phc type 8

8шт.

8

71725C1

FORK

YOKE, tube

1шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-NF x 2 phc type 8

4шт.

9

71726C1

FORK

YOKE, slip

1шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-NF x 2 phc type 8

4шт.

10

127309C1

FORK

YOKE, trans output, 4586 tractors, Serial Range: -1500

1шт.

10

104928C2

FORK

YOKE, trans output, all 4568 tractors, 4586 tractors, Start Serial: 1501

1шт.

Выбрано товаров: 25
