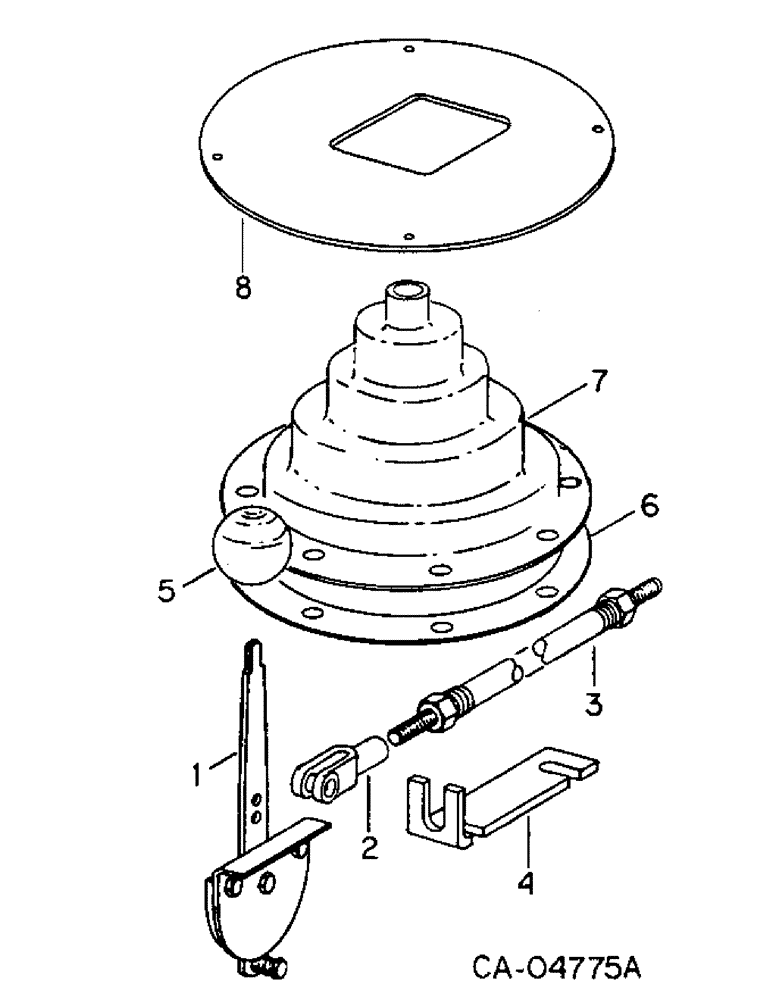

Запчасти Case IH 4568 (07-13) - DRIVE TRAIN, TRANSMISSION HI-LO RANGE CONTROLS, 4568 TRACTOR (04) - Drive Train

1

118993C1

LEVER

ASSY, range shift

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

2

116383

CLEVIS

1/4-28 znd adj rod end

1шт.

138063

PIN, 1/4 x .770

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

3

124739C1

CABLE PULLING GRIP

CABLE ASSY, hi-lo range control

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 znd hex.

1шт.

4

114244C1

SUPPORT, cable

1шт.

5

119007C1

KNOB

shift lever

1шт.

6

114285C1

LARGE PLATE

PLATE, shift boot hold down

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 znd

4шт.

26095R1

SCREW, 1-1/4 x 1-1/2 phc hex-hd

4шт.

7

778053C1

BOOT

shift lever

1шт.

8

132513C1

PLATE

gear shift

1шт.

26095R1

SCREW, 1/4-20 x 1-1/2 phc hex-hd tap

4шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 znd

4шт.
