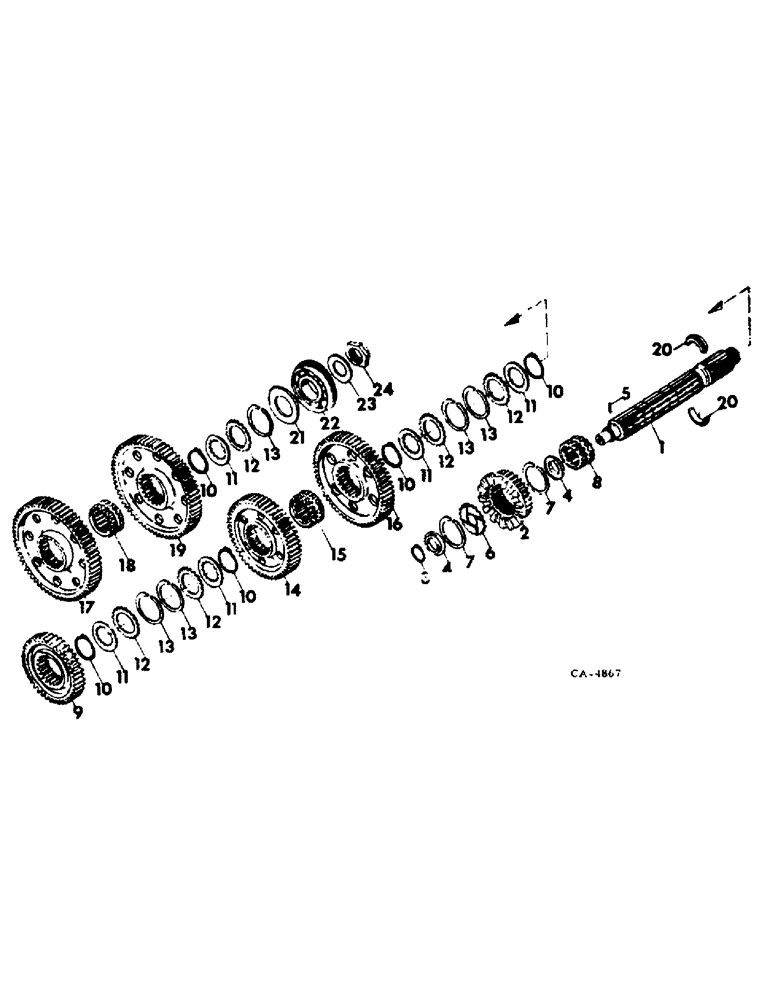

Запчасти Case IH 4568 (07-07) - DRIVE TRAIN, MAINSHAFT, 4568 TRACTORS WITH SERIAL NO. 8855 AND BELOW (04) - Drive Train

1

129272C1

SHAFT

ASSY, main, Includes ring 25176R1, Replaces 71760C1

1шт.

2

432250C1

GEAR

ASSY, mainshaft, 9th and 10th segment, 30T

1шт.

3

25176R1

SNAP RING,#150, Ext

Ring, Snap, , thrust washer #150, Ext

1шт.

4

432265C1

WASHER

thrust, 9th and 10th gear

2шт.

5

432262C1

PIN

thrust washer

2шт.

6

432264C1

WASHER

gear thrust

1шт.

7

472163R1

RING

9th and 10th thrust washer snap

2шт.

8

399609C2

COLLAR

7th, 8th, 9th and 10th clutch

1шт.

9

432255C1

GEAR

7th and 8th, 40T

1шт.

10

114349H1

SNAP RING,#237, Ext

RING, SNAP, , Thrust washer #237, Ext

5шт.

11

399648C1

THRUST WASHER

thrust

2шт.

12

399649C1

THRUST WASHER

gear thrust

5шт.

13

472163R1

RING

gear thrust washer snap

5шт.

14

432254C1

GEAR

5th and 6th, 50T

1шт.

15

399609C2

COLLAR

3rd, 4th, 5th and 6th clutch

1шт.

16

432253C1

GEAR

3rd and 4th, 52T

1шт.

17

399620C1

GEAR, 1st and 2nd, 64T

1шт.

18

399609C2

COLLAR

1st, 2nd and reverse

1шт.

19

399619C1

GEAR

reverse, 64T

1шт.

20

399643C1

RING

rear bearing split

1шт.

21

399651C1

WASHER

reverse gear thrust

1шт.

22

445417C91

BEARING

rear

1шт.

23

456426C1

WASHER

rear shaft

1шт.

24

19829R1

NUT

rear shaft

1шт.
