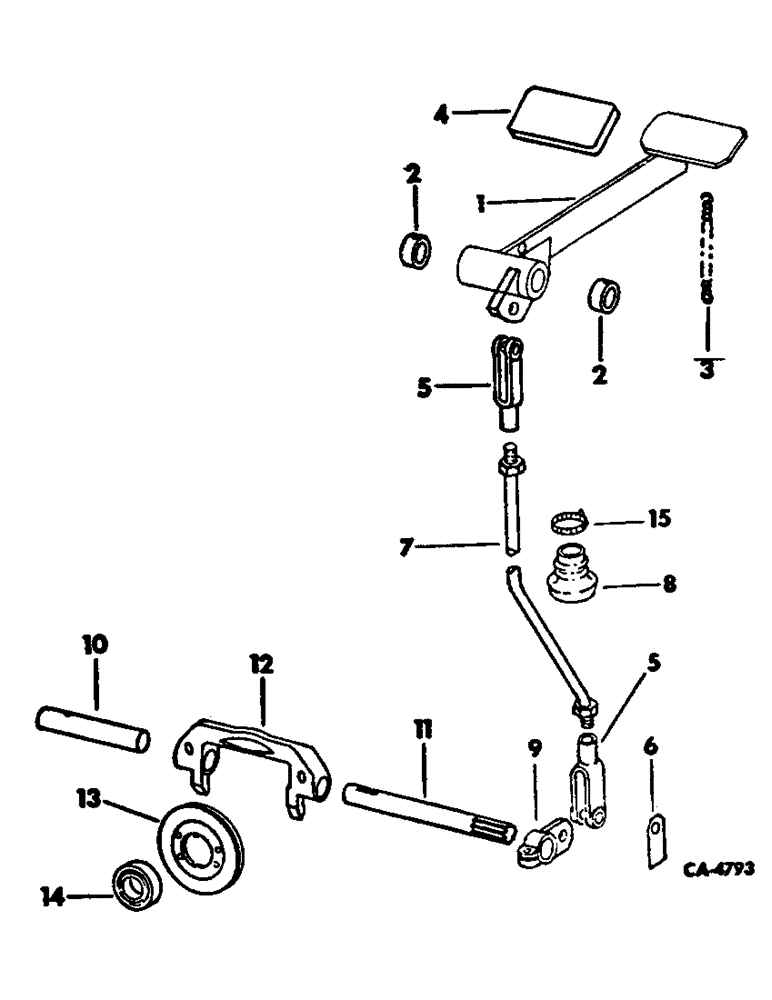

Запчасти Case IH 4568 (07-03) - DRIVE TRAIN, CLUTCH CONTROLS, 4568 TRACTORS (04) - Drive Train

1

114244C1

PEDAL ASSY, clutch

1шт.

2

610513R1

COLLAR

COLLAR

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 pln c/pt hdl/hs set

2шт.

3

73960C1

SPRING

pedal return

1шт.

4

109656C1

BRAKE PAD

PAD, pedal

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

5

144245

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 C-Z adj rod end

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

2шт.

120371

NUT,1/2"-20, G5

2шт.

137214

COTTER PIN

1/8" x 1-3/4"

2шт.

6

68807C1

TAG, clutch adj. warning

1шт.

7

118804C1

ROD ASSY.

ROD ASSY, clutch

1шт.

8

119011C1

BOOT

INSULATOR, rubber boot

1шт.

9

124618C1

LEVER

clutch shifter

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

10

697927R1

SHAFT

clutch release, short, Replaces 68815C1

1шт.

11

68816C1

SHAFT

clutch release, long

1шт.

12

13-79

YOKE

clutch release

1шт.

32796VA

WASHER

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

13

DISC ASSY, brake, Refer to clutch listing in this group

1шт.

14

69983C91

BEARING ASSY,29.99mm ID x 72mm OD x 19mm W

clutch pilot

1шт.

14

129134C91

BALL BEARING,1.1811" ID x 2.4409" OD x 0.9375"

ASSY, clutch pilot, Used w/clutch pressure plate cover assy 127545C91

1шт.

15

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP

1шт.

142063C91

KIT

PACKAGE, isomounted clevis, Consists of

1шт.

134838C1

FORK

YOKE ASSY, clutch rod, clevis

1шт.

134839C1

SPACER

BUSHING, lever, spacer

1шт.

536647R1

INSULATOR

BUSHING, isomount

2шт.

Q1436

PIN,3/8" x 2 9/16"

3/8 x 2.562

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.
