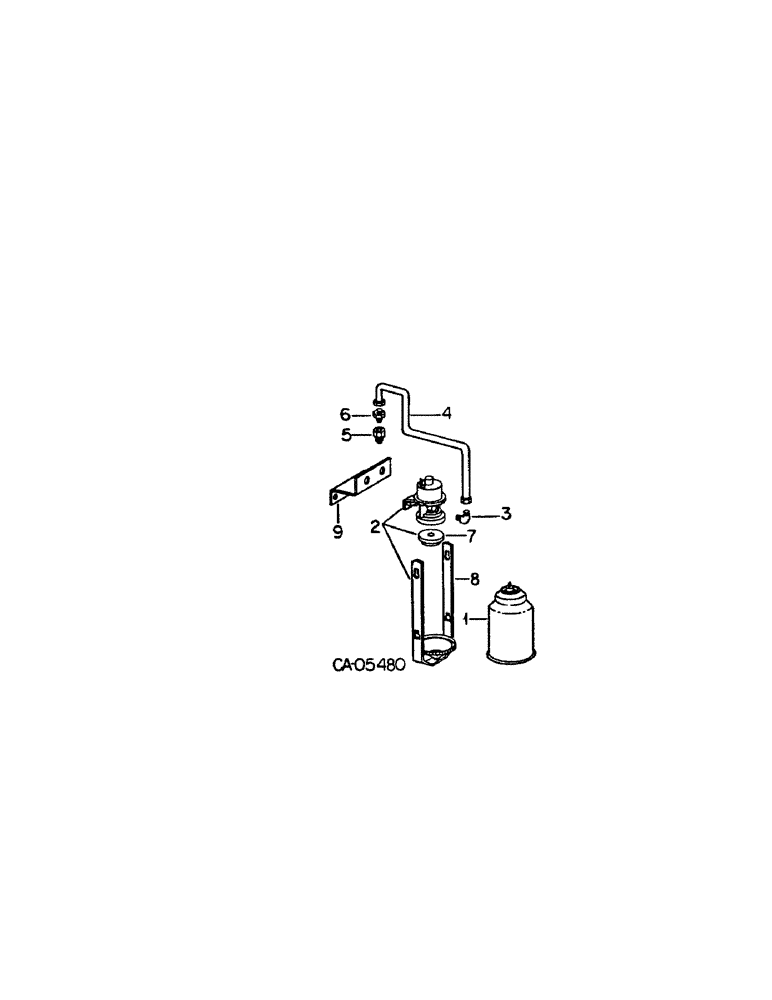

Запчасти Case IH 4568 (12-01[B]) - POWER, EXHAUST SYSTEM, ETHER STARTING, 4586 TRACTORS, 4568 TRACTORS REFER TO ENG 7 Power

1

385064R91

FLUID

ether starting 12 oz can

1шт.

2

533231R92

SOLENOID

INJECTOR ASSY, ether starting measured shot

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

95-11034

WASHER,1/4"

13/32 x 11/16 x .051

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

3

140304

ELBOW

1/8-27 90 deg ball sleeve tube

1шт.

4

TUBE ASSY, ether starting, Use 46.5 in. of 1/8 OD copper tubing from 50 ft. roll marked 995059R1 and two 121220 nuts and two 121322 sleeves

1шт.

299402C1

CLAMP

ether tube, 4586 tractors, Serial Range: -1500

1шт.

365584R1

CLIP

ether starting tube, 4586 tractors, Start Serial: 1501

1шт.

5

269635R91

NOZZLE CAP

NOZZLE, starting fluid

1шт.

6

140285

X

CONNECTOR ASSY, 1/8 ball sleeve tube nozzle

1шт.

7

395686R1

GASKET

ether starting injector

1шт.

8

121851C1

RETAINER

BAIL ASSY, injector

1шт.

9

535672R2

BRACKET

ether starting

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.
