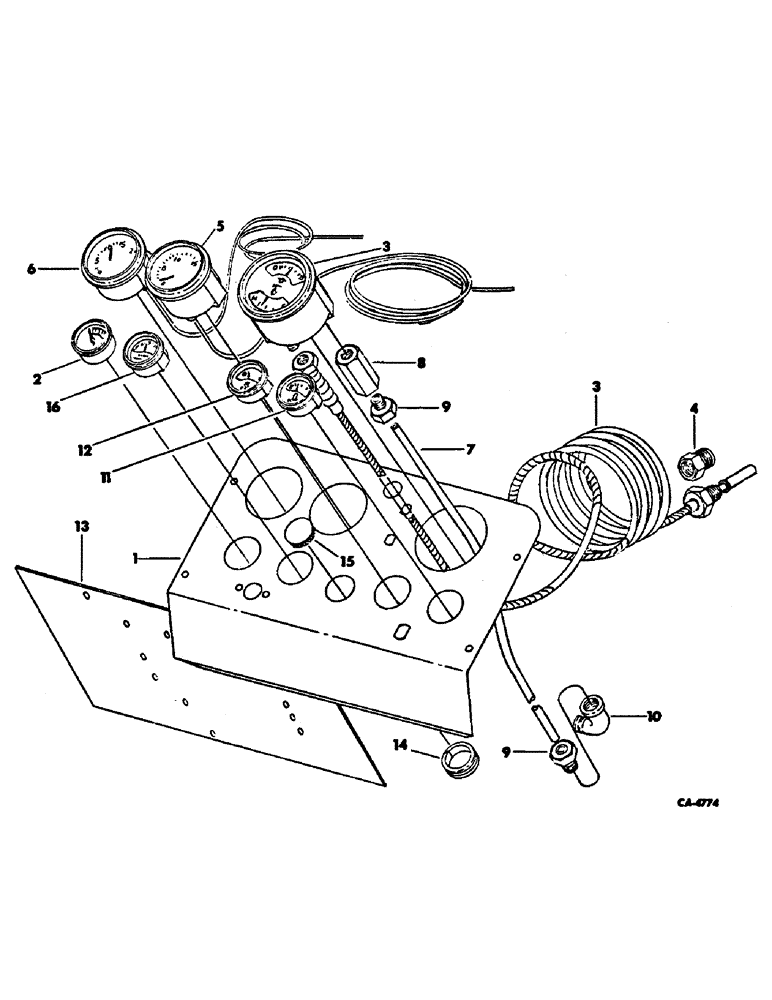

Запчасти Case IH 4568 (11-01) - INSTRUMENTS, PANEL, GAUGES AND PIPING, 4568 TRACTOR Instruments

1

118846C1

PANEL

ASSY, instrument

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

120392

WASHER,1/4", SAE

.281 x .625 x .060 znd

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

2

178914C1

VOLTMETER

GAUGE ASSY, charge indicator

1шт.

3

534057R2

CLUSTER

GAUGE ASSY, cluster

1шт.

4

51510DA

RESTRICTOR

BUSHING, capillary tube bulb

1шт.

5

107648C91

GAUGE

ASSY, speedometer, Only serviceable items are

1шт.

71746C1

CABLE

1шт.

152240

INTERIOR LIGHT,C2V, #1816, 13V

LAMP, type C-2V trade #1816

1шт.

130721C1

RESISTOR ASSY, Used on speedometers 107648C91 with date code 185-608 and below

1шт.

6

107647C91

GAUGE

ASSY, tachometer and hourmeter, Only serviceable items are

1шт.

71746C1

CABLE

1шт.

152240

INTERIOR LIGHT,C2V, #1816, 13V

LAMP, type C-2V trade #1816

1шт.

7

110023C2

TUBE, oil pressure indicator

1шт.

8

19715R1

HYD CONNECTOR,Fem, 5/16"-24

CONNECTOR, oil pressure indicator tube, To connect tube to indicator

1шт.

9

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 5/16-24 hi-duty tube fitting, oil pressure indicator

2шт.

10

36637D

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

5/16-24 hi-duty tube fitting, male pipe oil pressure indicator tube

1шт.

11

533992R1

GAUGE ASSY.

RECEIVING UNIT ASSY, electric fuel gauge

1шт.

12

533991R1

GAUGE ASSY.

INDICATOR ASSY, electric air cleaner

1шт.

13

107662C1

LARGE PLATE

PLATE, dash access

1шт.

14

69850C1

GROMMET

steering column

1шт.

15

406099R1

COVER

ASSY, pyrometer opening, Serial Range: -8099

1шт.

16

NOT USED IN THIS APPLICATION

1шт.
