Запчасти Case IH 4568 (06-03) - COOLING, COOLANT FILTER CONDITIONER Cooling

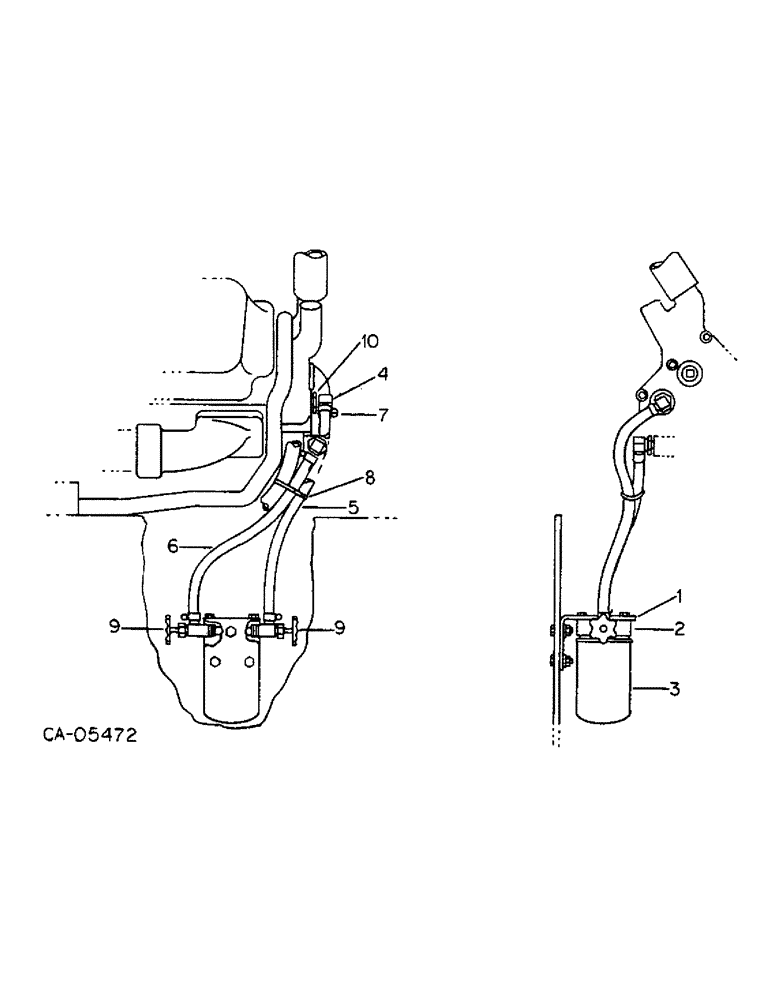

Схема запчастей Case IH 4568 - (06-03) - COOLING, COOLANT FILTER CONDITIONER Cooling
8
7
6
4
1
10
2
5
9
9
3

Артикул

Название

Примечание

Количество

1

421363C1

ANGLE

BRACKET, water filter mtg

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

427446C1

HEAD

BASE, water filter

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

3

690171C1

FILTER

ELEMENT, water filter

1шт.

4

324292C1

ELBOW

3/8 pipe to 3/8 ID hose 90 deg hose conn, or

2шт.

4

444821C1

ELBOW

3/8 pipe to 3/8 ID hose 90 deg hose conn

2шт.

5

HOSE, water inlet, Use 15 in. 3/8 ID tubing from a 50 ft. roll marked 364357C1

1шт.

6

HOSE, water outlet, Use 17 in. 3/8 ID tubing from a 50 ft. roll marked 364357C1

1шт.

7

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

4шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP, hose lock

1шт.

9

321840C91

LOCK VALVE

VALVE, 3/8 pipe to 3/8 ID hose shutoff

2шт.

10

217-46

REDUCER,3/4" - 14 NPTF x 3/8" - 18 Fem NPTF

ADAPTER, 3/4 to 3/8 znp out/h/hd pipe, or

2шт.

10

115224

ADAPTER

3/4 to 3/8 pln out/h/hd pipe

2шт.

Выбрано товаров: 16
