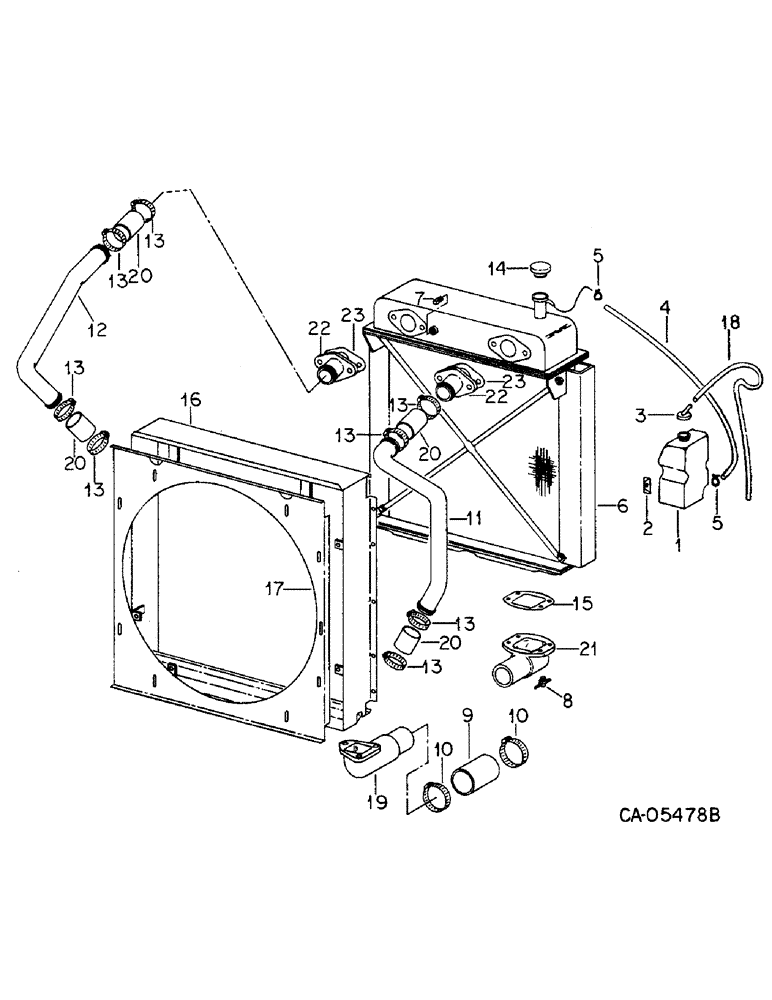

Запчасти Case IH 4568 (06-01) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

437703C1

TANK

reservoir

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

7шт.

120392

WASHER,1/4", SAE

1/4 x 3/8 x .051 znd

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

2

109911C1

BRACKET

ASSY, reservoir support, 4568 tractors

1шт.

2

109911C1

BRACKET

ASSY, reservoir support, 4586 tractors, Serial Range: -1500

1шт.

2

132804C2

LARGE PLATE

PLATE, tank reservoir, 4586 tractors, Start Serial: 1501

1шт.

3

437702C1

CAP

radiator coolant reservoir

1шт.

4

68694C3

RADIATOR HOSE,0.31" ID x 34.00"

Radiator to Reservoir 0.31" ID x 34.00"

1шт.

5

70152C1

HOSE CLAMP

CLAMP, hose

2шт.

6

104970C92

RADIATOR

ASSY W/BRAZED INLET, outlet and pressure cap, Consists of

1шт.

131362C1

TANK ASSY, baffle and top

1шт.

438178C1

TANK ASSY, bottom

1шт.

131364C1

SIDE ASSY, right

1шт.

131365C1

SIDE ASSY, left

1шт.

131363C1

CORE AND HEATER ASSY

1шт.

130704C1

CAP

pressure

1шт.

438195C91

KIT

radiator gasket

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 x 7/8 type 5

38шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

40шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

18шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

6шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

99шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120376

NUT,5/16"-18, G5

78шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 pln sq/hd auto pipe

1шт.

7

444624

PLUG,Hex Hd, 3/8"-18

3/8-18 nptf hex-hd pipe

1шт.

8

118536

VALVE

3/8 ptf radiator drain

1шт.

9

HOSE, radiator outlet, Furnish 7 in. from a 36.0 inch roll marked 664053C1, Replaces 109697C2 by also ordering inlet 130708C1 and two clamps 27337R1

2шт.

10

27392R1

HOSE CLAMP,#48, 2.56/3.50 Type F Worm, W/liner

CLAMP, 3-1/2 hose

2шт.

11

132753C1

TUBE

HOSE, radiator inlet RH, Replaces 118857C1 by also ordering two 3 inch hose from bulk roll marked 407006R1 and two clamps 27337R1

2шт.

12

132754C2

TUBE

HOSE, radiator inlet LH, Replaces 118858C1 by also ordering two 3 inch hose from bulk roll marked 407006R1 and two clamps 27337R1

2шт.

13

27337R1

HOSE CLAMP,#28, 1.31/2.25 Type F Worm, W/liner

CLAMP, 2-1/4 OD hose

8шт.

14

130704C1

CAP

pressure

1шт.

15

429224C1

GASKET

water outlet

1шт.

16

132883C1

SHROUD

fan, For all 4568 tractors, 4586 tractors, Serial Range: -1500

1шт.

16

130887C1

SHROUD ASSY.

SHROUD ASSY, fan, 4586 tractors, Start Serial: 1501

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

10шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 znd pln

10шт.

17

119045C1

COVER

PLATE, shroud, For all 4568 tractors, 4586 tractors, Serial Range: -1500

1шт.

17

130888C1

SHROUD

COVER, fan shroud, 4586 tractors, Start Serial: 1501

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

8шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 znd play

8шт.

18

68694C3

RADIATOR HOSE,0.31" ID x 34.00"

Radiator to Reservoir Overflow 0.31" ID x 34.00"

1шт.

19

130708C1

TUBE

INLET, water, Replaces 428505C1 by also ordering one, 7 inch hose from bulk roll marked 664053C1 and two, clamps 27337R1

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

GASKET FOR REF 19 IS 303027C1 PER NOTE IN HARD COPY CATALOG.

1шт.

20

HOSE, tube to radiator & tube to elbow, Furnish 3.0 in. from a 36.0 inch roll marked 407006R1

4шт.

21

105027C1

OUTLET

radiator

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22

326742C1

TUBE

INLET, radiator

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

23

284418C4

GASKET

radiator inlet

2шт.

303027C1

GASKET

water inlet below, 4568 tractor

1шт.

70291C1

GROMMET,1" ID x 1 3/8" Groove Dia

radiator, Replaces 116873C1, 4586 tractor

2шт.

438195C91

KIT

radiator gasket

1шт.

142165C1

FLUID, caulking compound, 11 oz., For sealing radiator assy 104970C2 & chaff shield spacer 104981C1

1шт.
