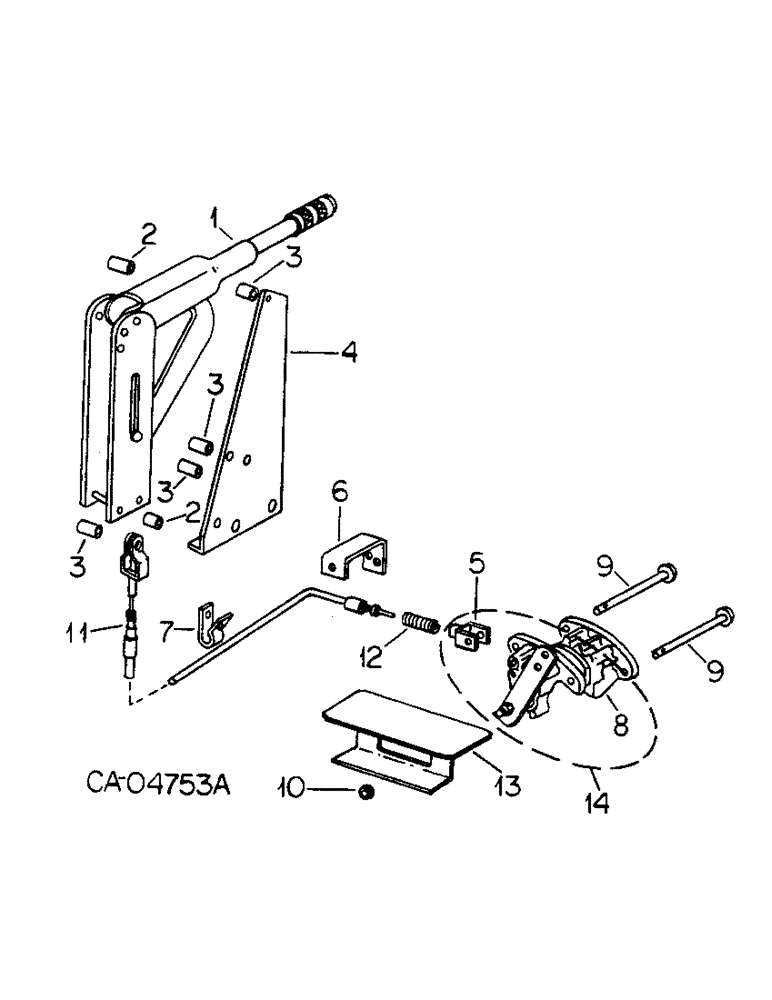

Запчасти Case IH 4568 (04-07) - BRAKES, PARKING BRAKE, 4586 TRACTORS WITH SERIAL NO. 1500 AND BELOW, ALL 4568 TRACTORS (5.1) - BRAKES

1

69894C91

HANDLE

LEVER ASSY, hand brake

1шт.

2

M22657

SPACER, .493 x .67 x .75

3шт.

3

SA2172

SPACER,3/8" Pipe x 1/2"

.493 x .67 x .50

4шт.

4

69895C1

ANCHOR

MOUNT, hand brake

1шт.

70157C1

NUT

FITTING, 3/8 inc

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 hex-hd cap

3шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad lock

3шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051

3шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051

2шт.

5

144243

CLEVIS

3/8-24 adj rod end

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

138078

PIN, 3/8 x 1 rod end

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

6

64756C1

SUPPORT

park brake cable, 4586 tractors

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

110499C1

CLAMP

ASSY, cable, 4568 tractor

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

27079

SCREW, 5/16-18 x 1 znd hex-hd cap

1шт.

27254R1

NUT

5/16-18 hex.

1шт.

446363

WASHER,5/16"

5/16 flat

1шт.

7

70136C1

CLAMP

ASSY, cable, 4586 tractor

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd cap

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad lock

1шт.

8

146909C91

CALIPER

ASSY., hand brake, Replaces 69896C95, For components see list of parts under detail of hand brake caliper this group

1шт.

9

110498C1

ROD

brake slide, 4568 tractor

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.656 x 1.312 x .093

4шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

9

25128R1

PIN,5/8" x 3 3/4"

PIN, 5/8 x 3-3/4 headed, 4586 tractor

2шт.

10

110497C1

GROMMET

1/2 rubber

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .074

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , Ext-prong 3/16" x 1"

2шт.

11

69897C1

CABLE PULLING GRIP

CABLE ASSY, brake

1шт.

12

70221C1

SPRING

brake returns

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051

1шт.

13

69920C2

SHIELD

ASSY, park brake

1шт.

14

64727C1

PLATE

DISK, brake

1шт.
