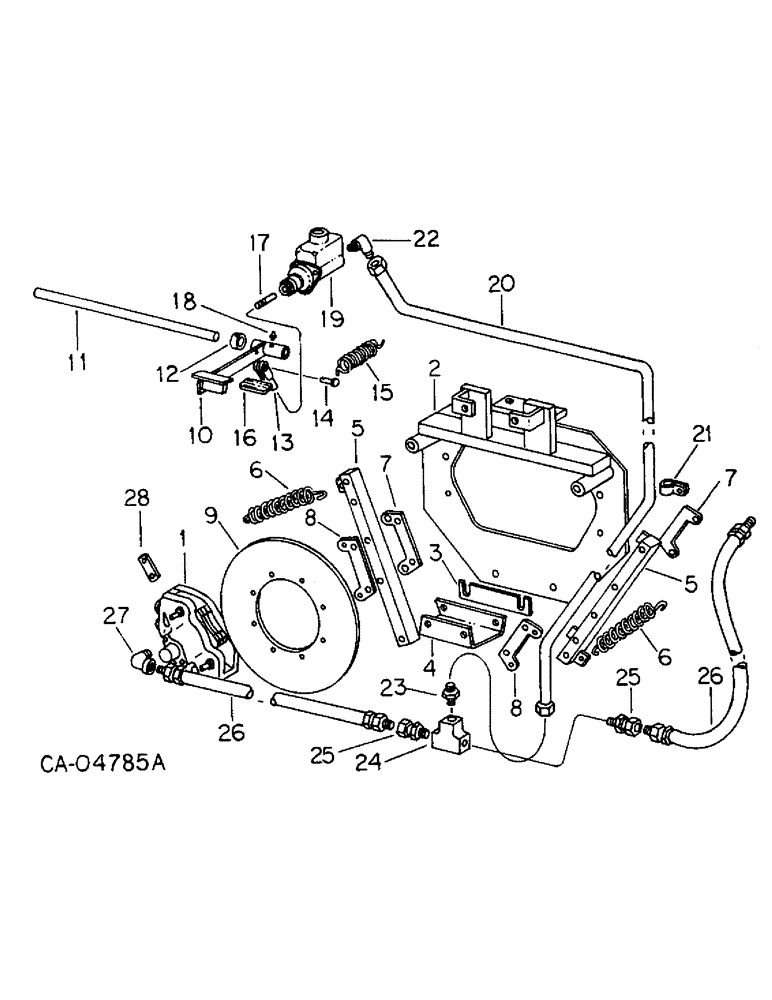

Запчасти Case IH 4568 (04-01) - BRAKES, MASTER BRAKE CONTROLS, 4568 TRACTOR (5.1) - BRAKES

1

69841C93

BRAKE

CALIPER ASSY, brake, For components, See list of parts details of caliper brake listing

2шт.

2

110470C1

ANCHOR

SUPPORT ASSY, brake mounting

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 hex-hd cap

4шт.

3

110477C1

SHIM

brake bar spacer, 1 or as required

1шт.

4

110471C1

SPACER

brake bar

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/4 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

131016

WASHER

21/32 x 1-5/16

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

2шт.

5

110492C1

BAR

ASSY, brake mounting LH

1шт.

5

118837C1

BAR

ASSY, brake mounting RH

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

138502

WASHER,Ext Tooth, 5/8"

5/8 ext. tooth lock

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

6

110495C1

VALVE SPRING

SPRING, caliper

2шт.

7

69465C3

PLATE ASSY.

PLATE, brake back

1шт.

8

69466C3

PLATE ASSY.

PLATE, brake front

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2-13 x 3-1/4 znd hex-hd cap

4шт.

138502

WASHER,Ext Tooth, 5/8"

5/8 ext. tooth lock

4шт.

9

114333C1

DISC

brake

1шт.

80594R1

BOLT,Hex, 3/8" - 24 x 1", Gr 8

SCREW, 3/8-24 x 1 hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

10

114222C1

PEDAL ASSY.

PEDAL ASSY, brake

1шт.

11

114223C1

ROD

SHAFT, brake & clutch control

1шт.

12

610513R1

COLLAR

COLLAR

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 hex-soc-hd cup pt set

1шт.

13

144243

CLEVIS

3/8-24 x 2-1/2 C-Z lt adj

1шт.

120369

NUT,3/8"-24, G5

1шт.

14

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1.060 clevis

1шт.

15

114220C1

VALVE SPRING

SPRING, pedal return

1шт.

16

109656C1

BRAKE PAD

PAD, pedal

1шт.

17

114221C1

ROD

brake master cyl push

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , PTR, Straight 1/4"-28 NPT x .54" lg

1шт.

19

70135C91

MASTER CYLINDER

CYLINDER ASSY, master, For components see list of parts under detail of master cylinder, this group

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

20

110496C1

BRAKE LINE

TUBE ASSY, brake

1шт.

21

299399C1

CLIP

CLAMP, tube

2шт.

436754

SCREW,Slotted Pan Hd, #10-32 x 1"

10-32 x 1 slt-pan-hd mach

2шт.

70150C1

NUT, 10-32 self-locking

2шт.

22

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1/8-27 45 deg flared tube

1шт.

23

118748

CONNECTOR, ELEC

CONNECTOR, 1/8-27 45 deg flared tube

1шт.

24

9409935

TEE,1/8"-27 NPTF Fem

1/8-27 auto pipe

1шт.

25

294134R1

CONNECTOR, ELEC

FITTING, int-ext swivel pipe

2шт.

26

69775C1

HOSE

ASSY, brake line

2шт.

27

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1/8-27 auto 90 deg pipe

1шт.

28

104527R1

EXTENSION

CLIP, spring

1шт.
