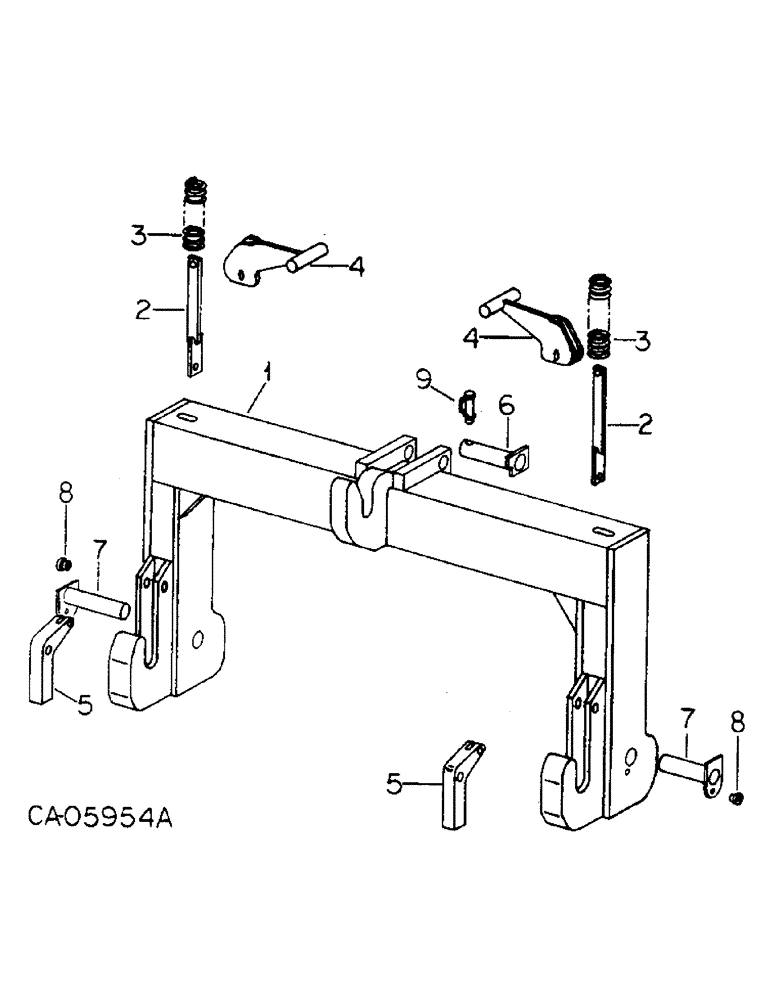

Запчасти Case IH 4568 (09-10) - FRAME, THREE POINT HITCH QUICK COUPLER ATTACHMENT, CATEGORY IV (12) - FRAME

127864C91

COUPLING

COUPLER ASSY, quick hitch category IV

1шт.

1

FRAME ASSY, coupler main, Not serviced separately, Order coupler assy 127864C91

1шт.

28003R1

PIN,1/2" x 3 1/2", Coiled

2шт.

2

74777C1

BAR

spring

2шт.

3

64717C1

SPRING

latch

2шт.

4

64715C1

HANDLE

latch

2шт.

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN, 5/16 x 1.062 pln clevis

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

5

74778C1

LUG

lock-latch

2шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

2шт.

28004R1

PIN, 5/8 x 4-3/4 hvy pln cld spr 1/2" x 4 3/4", Coiled

2шт.

6

74774C1

PIN ASSY.

PIN ASSY, upper link

1шт.

7

74775C1

PIN ASSY.

PIN ASSY, lower link

2шт.

26318R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 phc p/t type 8

2шт.

8

74776C1

BUSHING

lower link pin retainer

2шт.

9

74782C1

PIN

upper link snapper

1шт.
