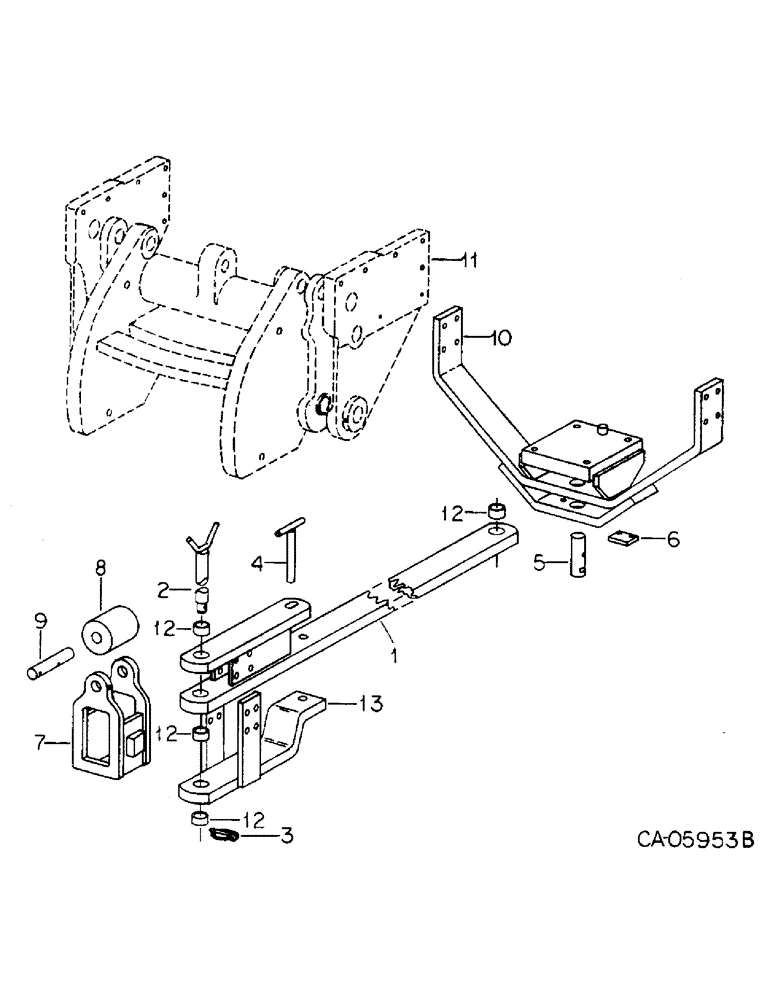

Запчасти Case IH 4568 (09-09) - FRAME, DRAWBAR, CATEGORY 4 THREE POINT HITCH (12) - FRAME

1

114120C91

BAR

ASSY, swinging, drawbar, Includes ref. no. 12

1шт.

2

114125C2

PIN ASSY.

PIN ASSY, drawbar rear, Used w/swinging drawbar

1шт.

2

123478C2

PIN ASSY, drawbar rear, Used w/hammer strap parts accessory

1шт.

3

621006C1

PIN

drawbar rear pin retainer

1шт.

4

114128C1

PIN

ASSY, drawbar lock

1шт.

5

114131C1

SHAFT

drawbar front

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

1шт.

6

114132C1

BAR

drawbar front pin lock

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

7

114133C1

YOKE

ASSY, drawbar roller

1шт.

8

68596C1

DRAWBAR

ROLLER, drawbar

1шт.

9

68597C1

PIN

SHAFT, drawbar roller

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2 x 4-1/2 type 5

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 phc p/t lock type 5

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

10

114138C1

SUPPORT

ASSY, drawbar front

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8 x 2-1/2 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

SUPPORT, drawbar, Refer to three point hitch attachment in this group

1шт.

12

114124C1

BUSHING

drawbar, swinging drawbar

3шт.

12

114124C1

BUSHING

drawbar, hammer strap parts accessory

1шт.

13

123109C1

STRAP ASSY, drawbar hammer

1шт.

280285

BOLT,Hex, 1" - 8 x 4", Gr 5

1 x 4 type 5

1шт.

24567R1

LOCK NUT,1"-8, GB

NUT, 1 cad p/t lock type 5

1шт.

23949R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 8

3/4 x 6-1/2 type 8

4шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4 cad p/t lock type 5

4шт.

123158C91

PARTS ACCESSORY, hammer strap, Consists of 2, 3, 12 & 13

1шт.
