Запчасти Case IH 4568 (09-01) - FRAME, FRONT FRAME, 4568 TRACTORS, 4586 TRACTORS WITH SERIAL NO. 1500 AND BELOW (12) - FRAME

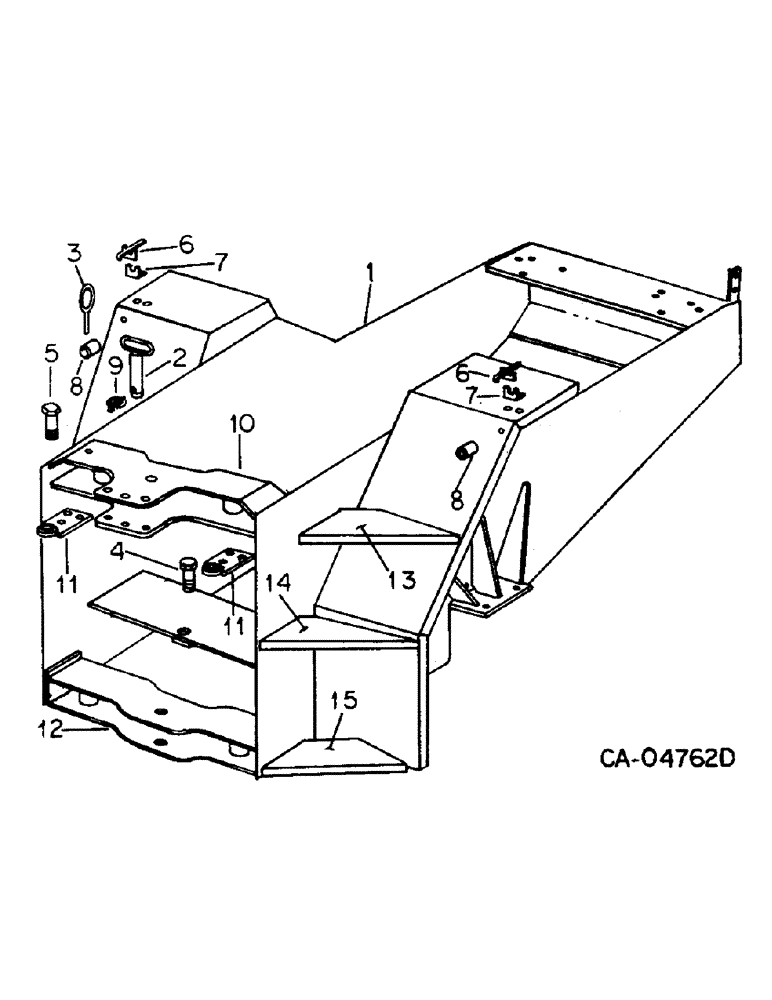

Схема запчастей Case IH 4568 - (09-01) - FRAME, FRONT FRAME, 4568 TRACTORS, 4586 TRACTORS WITH SERIAL NO. 1500 AND BELOW (12) - FRAME
2
7
13
8
6
3
7
1
5
9
10
4
11
8
12
14
15
6
11

Артикул

Название

Примечание

Количество

1

104903C2

FRAME ASSY, front, 4568 tractor, Consists of

1шт.

68565C2

PLATE ASSY.

PLATE

2шт.

20670R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

3/4 x 3 pln type 8

6шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

12шт.

359793C1

NUT,3/4"-10, GC

3/4 cad p/t lock type 8

6шт.

1

129163C93

FRAME ASSY, front, 4586 tractors, Consists of ref. no. 10, Serial Range: -1500

1шт.

2

104962C1

PIN

ASSY, frame lock

1шт.

3

104959C1

RING

ASSY, rear hose, 4568 tractor

1шт.

4

463154R2

BOLT

BOLT, lower transfer case mount

1шт.

5

70188C1

BOLT (SPREADER),1"-14 x 5.62"

BOLT, top transfer case mount

1шт.

272338

NUT

1-14 znd slt thick hex.

2шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1-1/16 x 2 x .108 znd

2шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

6

70402C1

HOLDER

door w/handle, 4568 tractor, Also furnish hardware

2шт.

133634

LINK ASSY.

10-32 x 1/2 zn slt-f-hd

8шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

8шт.

7

70969C1

ANCHOR

BRACKET, holder, 4568 tractor

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 znd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

8

114262C1

INSERT

STOP, rubber door, 4568 tractor

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 znd

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16

2шт.

9

392181R91

PIN

ASSY

1шт.

10

129049C1

LARGE PLATE

PLATE ASSY, top hinge, 4586 tractor

1шт.

11

68565C2

PLATE ASSY.

PLATE ASSY, steering

2шт.

20670R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

3/4 x 3 pln type 8

6шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

6шт.

9413983

NUT

3/4 phc p/t lock type 8

12шт.

359793C1

NUT,3/4"-10, GC

3/4 cad p/t lock type 8

6шт.

12

129050C1

POWER ARM

LINK ASSY, lower hinge

1шт.

13

129057C1

STEP

top LH

1шт.

13

127609C1

STEP

top RH, 4568 tractor

1шт.

13

129288C1

STEP

top LH

1шт.

13

129310C1

STEP

top RH, 4586 tractor

1шт.

14

129056C1

STEP

middle LH

1шт.

14

127610C1

STEP

middle RH, 4568 tractor

1шт.

14

129287C1

STEP

middle LH

1шт.

14

129309C1

STEP

middle RH, 4586 tractor

1шт.

15

127611C1

STEP

bottom LH

1шт.

15

129055C1

STEP

bottom RH, 4568 tractor

1шт.

15

129286C1

STEP

bottom LH

1шт.

15

129308C1

STEP

bottom RH, 4586 tractor

1шт.

Выбрано товаров: 45
