Запчасти Case IH 4568 (10-29) - HYDRAULICS, VALVE BANK AND CONNECTIONS, FOR TWO VALVE BANK ASSEMBLY (07) - HYDRAULICS

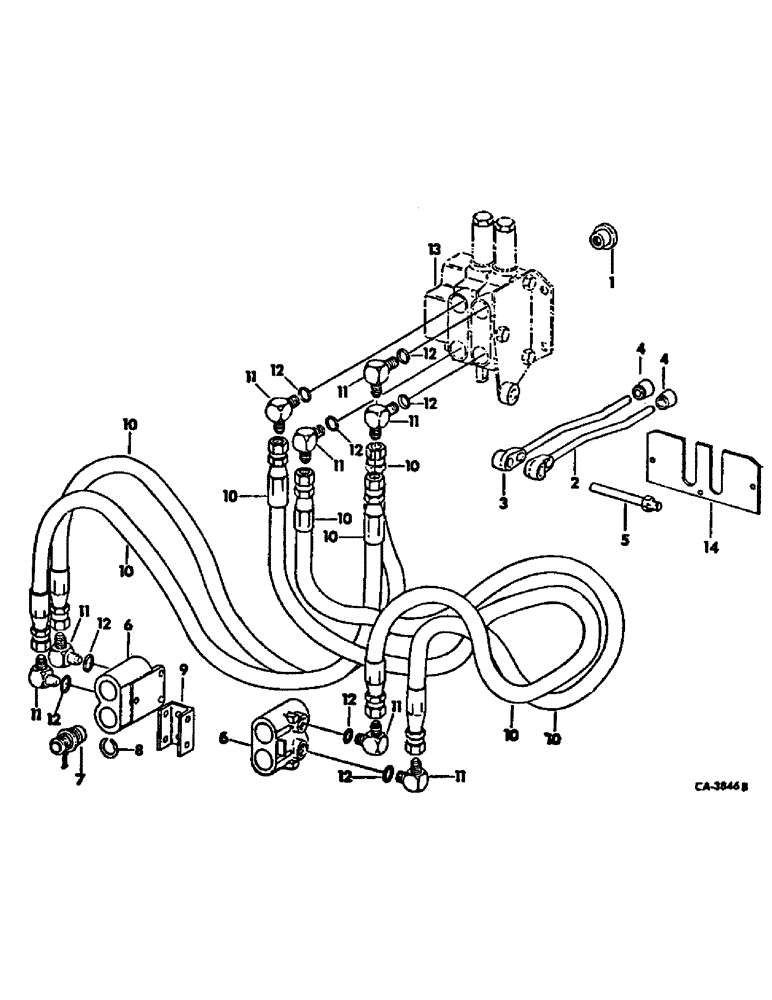

Схема запчастей Case IH 4568 - (10-29) - HYDRAULICS, VALVE BANK AND CONNECTIONS, FOR TWO VALVE BANK ASSEMBLY (07) - HYDRAULICS
11
7
10
11
10
4
12
11
70
12
11
2
12
13
11
12
11
6
4
1
8
1
10
10
6
12
11
12
10
10
10
12
5
3
11
14
9
12

Артикул

Название

Примечание

Количество

1

70174C1

BUSHING

INSULATOR, rubber

4шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

22770R1

WASHER

1/2 flat

8шт.

120390

WASHER,1/2"

.562 x 1.375 x .086

8шт.

391553R1

SPACER,1/2" Pipe x 7/8"

.875 lg x .840 OD x .622 ID std pipe

4шт.

2

68610C1

LEVER ASSY.

LEVER ASSY, valve actuating center, 4568 tractors, Serial Range: -8523

1шт.

2

124531C3

LEVER

ASSY, valve actuating center, 4568 tractors, Start Serial: 8524

1шт.

2

124531C3

LEVER

ASSY, valve actuating center, 4586 tractor

1шт.

3

68612C1

LEVER ASSY.

LEVER ASSY, valve actuating outer, 4568 tractors, Serial Range: -8523

1шт.

3

124532C3

LEVER

ASSY, valve actuating outer, 4568 tractors, Start Serial: 8524

1шт.

3

124532C3

LEVER

ASSY, valve actuating outer, 4586 tractor

1шт.

4

387885R1

KNOB

actuating lever

2шт.

5

378045R1

STUD

SHAFT, lever pivot, 4586 tractors, Serial Range: -1500

1шт.

5

378045R1

STUD

SHAFT, lever pivot, all 4568 tractors

1шт.

98724H

AXLE PIN,1/2" x 1.688"

PIN, 1/2 x 1-11/16 rod end

2шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

6

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY, female, For component details refer to female coupler listing this group

2шт.

7

64757C1

PLUG

ASSY, coupler dust, Replaces 537589R91

2шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

2шт.

8

124708C1

CAP

valve weather

2шт.

9

69555C1

BRACKET

coupler

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074 znd

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

10

69556C1

HOSE

ASSY, Serial Range: valve-coupler

4шт.

11

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd

8шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

8шт.

13

VALVE BANK ASSY, two

1шт.

14

71126C1

COVER

two valve bank, 4568 tractor

1шт.

14

129478C2

COVER

two valve bank, 4586 tractors, Serial Range: -1500

1шт.

14

129478C2

COVER

two valve bank, all 4568 tractors

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1 zn hex-washer-hd tap

3шт.

Выбрано товаров: 36
