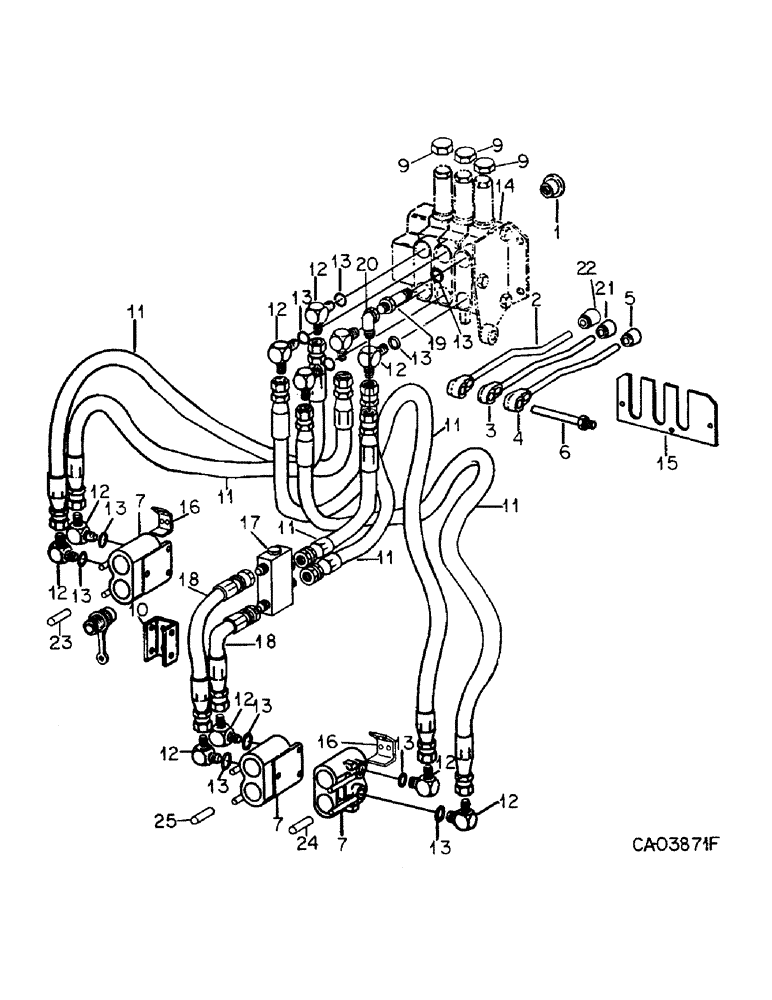

Запчасти Case IH 4568 (10-27) - HYDRAULICS, VALVE BANK AND CONNECTIONS, FOR THREE VALVE BANK ASSEMBLY (07) - HYDRAULICS

1

70174C1

BUSHING

INSULATOR, rubber

4шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120390

WASHER,1/2"

.562 x 1.375 x .086

8шт.

391553R1

SPACER,1/2" Pipe x 7/8"

.875 lg x .840 OD x .622 ID std pipe

4шт.

2

68608C1

LEVER ASSY.

LEVER ASSY, valve actuating inner, 4568 tractors, Serial Range: -8523

1шт.

2

124530C3

LEVER

ASSY, valve actuating inner, 4568 tractors, Serial Range: 8524-2098

1шт.

2

132637C1

LEVER

ASSY, actuating short, For 4568 tractors, Start Serial: 2099

1шт.

3

68610C1

LEVER ASSY.

LEVER ASSY, valve actuating center, 4568 tractors, Serial Range: -8523

1шт.

3

124531C3

LEVER

ASSY, valve actuating center, 4568 tractors, Serial Range: 8524-2098

1шт.

3

132635C1

LEVER

ASSY, actuating center, for 4586 tractors, Start Serial: 2099

1шт.

4

68612C1

LEVER ASSY.

LEVER ASSY, valve actuating outer, 4568 tractors, Serial Range: -8523

1шт.

4

124532C3

LEVER

ASSY, valve actuating outer, 4568 tractors, Serial Range: 8524-2098

1шт.

4

132635C1

LEVER

ASSY, actuating outer, For 4586 tractors, Start Serial: 2099

1шт.

5

387885R1

KNOB

actuating lever, black, 4586 tractors, Serial Range: -2500

1шт.

5

387885R1

KNOB

actuating lever, black, all 4568 tractors

1шт.

5

147094C1

KNOB, actuating lever, blue, 4586 tractors, Start Serial: 2501

1шт.

6

67981C1

SHAFT

lever pivot

1шт.

98724H

AXLE PIN,1/2" x 1.688"

PIN, 1/2 x 1-11/16 rod end

3шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

3шт.

7

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY, female, For component details refer to female coupler listing this group

3шт.

8

64757C1

PLUG

ASSY, coupler dust

6шт.

9

124708C1

CAP

valve weather

3шт.

10

69555C1

BRACKET

coupler

3шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

120396

WASHER

17/32 x 1-1/16 x .074 znd

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

11

69556C1

HOSE

ASSY, valve to coupler, 4586 tractors, Serial Range: -2159

1шт.

11

69556C1

HOSE

ASSY, valve to coupler, all 4568 tractors

1шт.

11

69556C1

HOSE

ASSY, valve to coupler, w/three bank valve assy

6шт.

11

69556C1

HOSE

ASSY, valve to coupler, w/alternating check valve assy

4шт.

11

141963C1

HOSE

ASSY, valve to coupler, 4586 tractors, Start Serial: 2160

1шт.

11

141963C1

HOSE

ASSY, valve to coupler, w/three valve bank assy

6шт.

11

141963C1

HOSE

ASSY, valve to coupler, w/alternating check valve assy

4шт.

306132C1

CABLE TIE,14.5" L

STRAP, hose

3шт.

11

141965C1

HOSE ASSY.

HOSE ASSY, aux valve to check valve, Replaces 58766C1, Used w/alternating check valve valve assy

2шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube 90 deg, Serial Range: -2159

12шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube 90 deg, all 4568 tractors

12шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube 90 deg, without three point category IV hitch, Start Serial: 2160

11шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube 90 deg, with three point category IV hitch, Serial Range: 2160-2500

9шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube 90 deg, with three point category IV hitch, Start Serial: 2501

5шт.

12

9411106

ELBOW

7/8-14 C-Z 37 deg hyd flared tube adj str thd 45 deg, 4 used on tractors w/serial no. 2501 and above w/three point category IV hitch

1шт.

12

9411106

ELBOW

7/8-14 C-Z 37 deg hyd flared tube adj str thd 45 deg, w/three point category IV hitch, Start Serial: 2501

4шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

12шт.

14

VALVE BANK ASSY, three, See detail list

1шт.

15

70393C1

COVER, three valve bank, 4568 tractor

1шт.

15

129477C2

COVER

three valve bank, 4586 tractor

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1 zn hex-washer-hd tap

3шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

142864C95

VALVE

ASSY, alternating check

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18

114366C1

HOSE ASSY.

HOSE ASSY, check valve to coupler, Used w/alternating check valve assy

2шт.

19

9410230

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, Pipe

CONNECTOR, 7/8-14 C-Z 37 deg hyd flrd tube long, 4586 tractors, Start Serial: 2160

1шт.

20

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 C-Z 37 deg tube 90 deg swivel, 4586 tractors, Start Serial: 2160

1шт.

21

387885R1

KNOB

actuating lever, black, 4586 tractors, Serial Range: -2500

1шт.

21

387885R1

KNOB

actuating lever, black, all 4568 tractors

1шт.

21

147093C1

KNOB, actuating lever, yellow, 4586 tractors, Start Serial: 2501

1шт.

22

387885R1

KNOB

actuating lever, black, 4586 tractors, Serial Range: -2500

1шт.

22

387885R1

KNOB

actuating lever, black, all 4568 tractors

1шт.

22

397931R2

GRIP

KNOB, actuating lever, black, 4586 tractors, Start Serial: 2501

1шт.

22

397931R2GV

SPRING

Value, Knob

1шт.

23

139346C1

SLEEVE

coupling lever, black

2шт.

24

139347C1

SLEEVE

coupling lever, yellow

2шт.

25

139348C1

SLEEVE

coupling lever, blue

2шт.
