Запчасти Case IH 4494 (6-156) - INCHING PEDAL AND LINKAGE (06) - POWER TRAIN

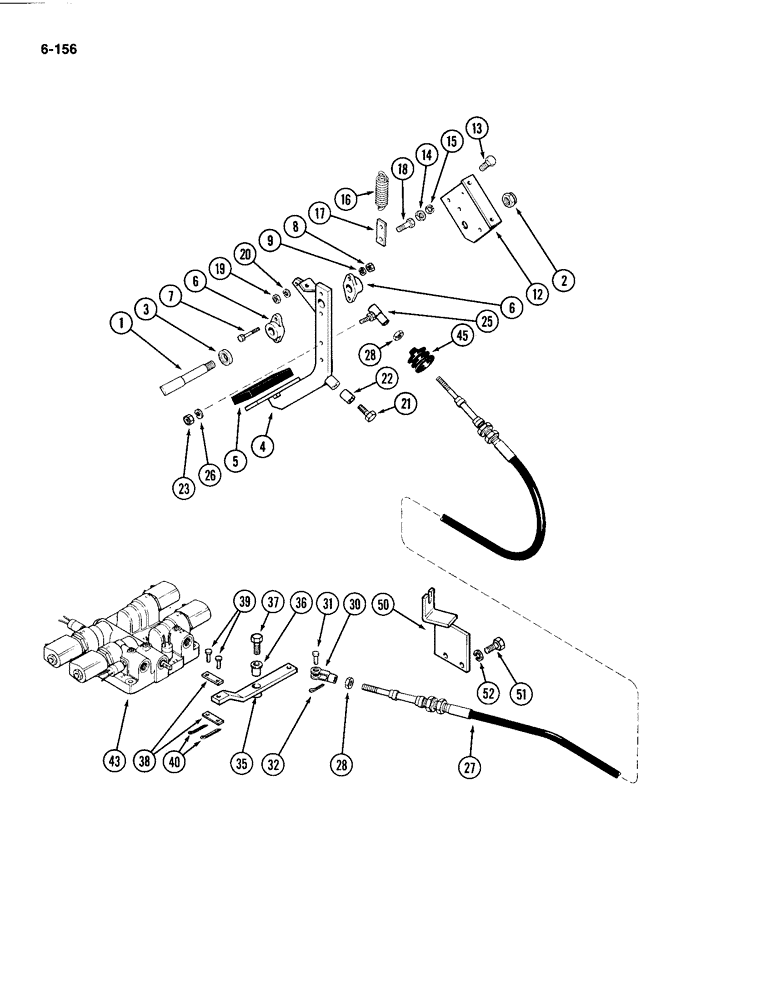

Схема запчастей Case IH 4494 - (6-156) - INCHING PEDAL AND LINKAGE (06) - POWER TRAIN
45
36
22
3
17
38
32
13
43
30
28
28
23
4
52
2
25
37
40
39
19
26
5
21
16
15
8
7
9
12
27
14
1
6
31
6
35
20
51
50
18

Артикул

Название

Примечание

Количество

1

A75359

SHAFT

- pivot, inching pedal

1шт.

2

131-64

LOCK NUT,5/8"-11, GC

NUT - hex lock, 5/8 inch NC

1шт.

3

A138831

BUSHING

SPACER - pedal

1шт.

4

A166485

PEDAL

- foot, inching

1шт.

5

F9197

PAD

- rubber, pedal

1шт.

6

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pedal

2шт.

7

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

A176396

SUPPORT ASSY.

BRACKET - pedal shaft

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

A60302

SPRING

- return, inching pedal

1шт.

17

A169032

BRACKET

- return spring

1шт.

18

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-3/4 inch (Pedal stop)

1шт.

22

A140442

BUSHING

SPACER - stop bolt (Replaces 129-143 nut)

1шт.

23

131-1133

NUT,3/8"-24, GC

NUT - hex lock, 3/8 inch NF

1шт.

25

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT - ball, Serial Range: cable-pedal

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

A145342

CABLE

- control, Serial Range: pedal-valve

1шт.

28

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam, 3/8 inch NF hex

2шт.

30

213-41

ADJUSTABLE CLEVIS,3/8"-24

- cable to lever 3/8"-24

1шт.

31

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

32

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

35

A166522

LEVER

- valve spool

1шт.

36

A59772

BUSHING

- lever

1шт.

37

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

38

D56173

DRAG LINK

LINK -, Serial Range: lever-spool

2шт.

39

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN - clevis, clutch linkage

2шт.

40

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

43

REF

INSTRUCTION

VALVE ASSEMBLY - control, power shift (See Figure 6-148)

1шт.

45

A145931

BELLOWS

SEAL -, Serial Range: cable-firewall

1шт.

50

A166520

CABLE

BULKHEAD - control cable

1шт.

51

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

52

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Выбрано товаров: 39
