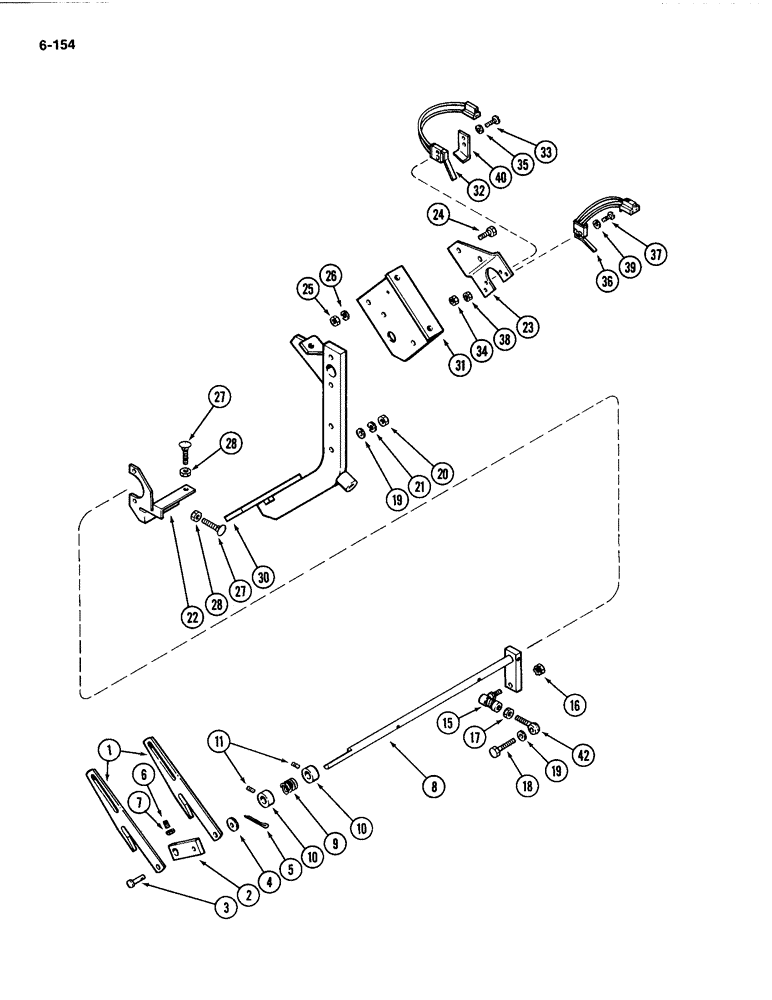

Запчасти Case IH 4494 (6-154) - CLUTCH CROSS SHAFT AND MICRO SWITCHES (06) - POWER TRAIN

1

REF

INSTRUCTION

LEVER - lockout

2шт.

2

A176737

LINK

- clutch (Replaces A167035)

2шт.

3

A8823

PIN,6.29mm OD x 26.99mm L

- clevis, 1/4 x 1-1/8 inch

1шт.

4

A167037

WASHER

- nylon, 1/4 inch

2шт.

5

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

6

178-18

SET SCREW,Hex Soc, #10-24 x 5/8"

SCREW - set, hex socket No. 10-24 x 5/8 inch

2шт.

7

129-17

NUT,Hex, #10 - 24

NUT - hex lock, No. 10

2шт.

8

A176992

LEVER

SHAFT - clutch cross (Replaces A176078)

1шт.

9

A39507

SHAFT

SPRING - cross shaft

1шт.

10

D37570

COLLAR

- cross shaft

2шт.

11

178-26

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, hex socket, 1/4 NC x 3/8 inch

2шт.

13

178-18

SET SCREW,Hex Soc, #10-24 x 5/8"

SCREW - set, hex socket No. 10 x 5/8 inch

2шт.

14

129-17

NUT,Hex, #10 - 24

NUT - hex lock, No. 10

2шт.

15

H169920

BALL JOINT

JOINT -ball (Female), pedal to cross shaft

1шт.

16

193-1001

NUT,Keps, w/LW, 1/4"-28

- keps, 1/4 inch NF

1шт.

17

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

18

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

19

195-2013

WASHER,5/16" x 3/4" x .049"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

22

A181037

BRACKET

- clutch switch actuator (Replaces A169838)

1шт.

23

A176392

SUPPORT ASSY.

BRACKET - clutch micro switch

1шт.

24

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

27

A181036

SQUARE BOLT

- bracket, micro switch (Replaces A176066)

2шт.

28

129-141

JAM NUT,Jam, 1/4"-20, G5

2шт.

30

A166485

PEDAL

- inching (See Figure 6-156)

1шт.

31

REF

INSTRUCTION

BRACKET - clutch (See Figure 6-156)

1шт.

32

A167041

SWITCH

- micro (2 wire)

1шт.

33

182-590

SCREW,Slotted Pan Hd, #6-32 x 3/4"

- pan head, No. 6 x 3/4 inch

2шт.

34

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA

2шт.

35

195-507

WASHER,#6

- flat, 5/32 x 3/8 x 1/16 inch (4 x 10 x 2 mm)

4шт.

36

A166333

SWITCH

- micro (3 wire)

1шт.

37

182-590

SCREW,Slotted Pan Hd, #6-32 x 3/4"

- pan head, No. 6 x 3/4 inch

2шт.

37

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

- pan head, No. 6 x 1-1/4 inch

2шт.

38

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA

2шт.

39

195-507

WASHER,#6

- flat, 5/32 x 3/8 x 1/16 inch (4 x 10 x 2 mm)

4шт.

40

A176437

GUARD

- rear micro switch

1шт.

42

H404889

BALL JOINT

JOINT - ball, 1/4 inch

1шт.
