Запчасти Case IH 4494 (6-144) - POWER SHIFT SOLENOID ASSEMBLY (06) - POWER TRAIN

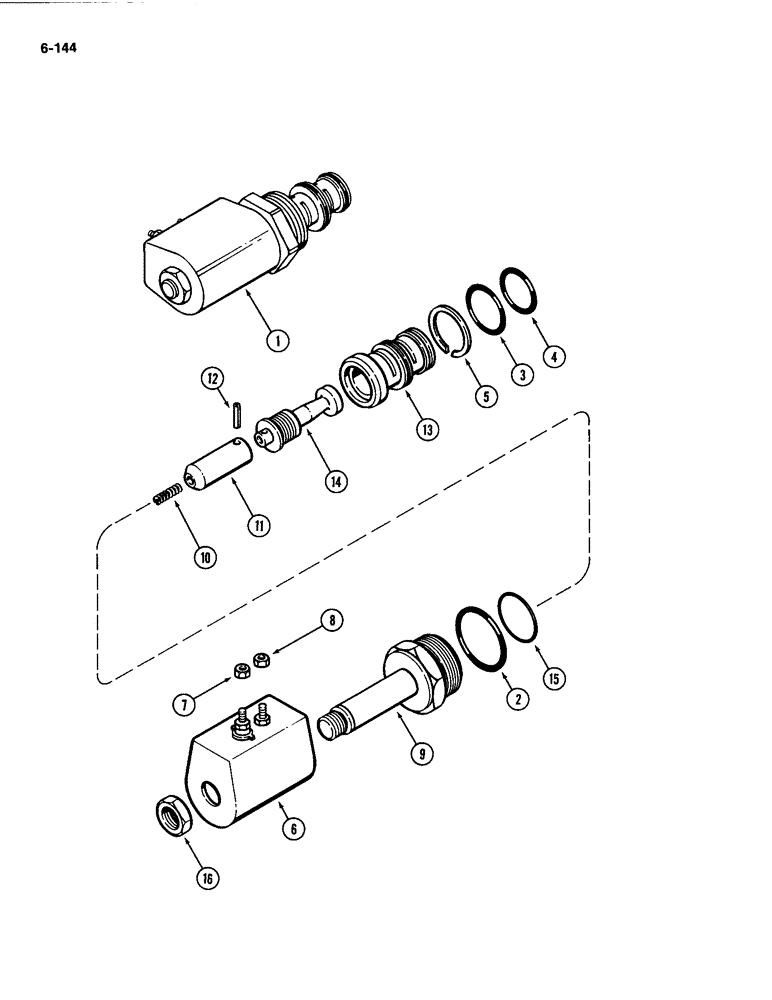

Схема запчастей Case IH 4494 - (6-144) - POWER SHIFT SOLENOID ASSEMBLY (06) - POWER TRAIN
4
15
12
8
6
9
13
10
16
5
7
11
2
14
3

Артикул

Название

Примечание

Количество

1

A160899

VALVE

SOLENOID ASSEMBLY - power shift, Inc. 1 - 16

4шт.

1

A49488

SWITCH

CARTRIDGE ASSEMBLY - solenoid, Inc. 2-5, 9-15

1шт.

A49489

SEAL

KIT - solenoid, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - rubber, 2-1/16 inch ID (52 mm) ID

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - rubber, 1-9/16 inch (40 mm) ID

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - rubber, 1-5/16 inch (33 mm) ID

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, 1-9/16 inch (40 mm) ID

1шт.

6

A49486

SWITCH

SOIL ASSEMBLY - solenoid, Includes: Ref. 6 and 7

1шт.

7

129-16

NUT,#8-32

2шт.

8

129-17

NUT,Hex, #10 - 24

NUT - hex, 10-32 inch NC

2шт.

9

NSS

NOT SOLD SEPARAT

TUBE - solenoid valve

1шт.

10

A49487

SPRING

- coil

1шт.

11

NSS

NOT SOLD SEPARAT

PLUNGER - solenoid

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - roll, spool retaining

1шт.

13

NSS

NOT SOLD SEPARAT

CAGE - solenoid

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - solenoid pressure

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - cage sealing, 1-11/16 inch ID

1шт.

16

131-60

LOCK NUT,5/8"-18

NUT - hex lock, 5-8/18 inch NC

1шт.

Выбрано товаров: 18
