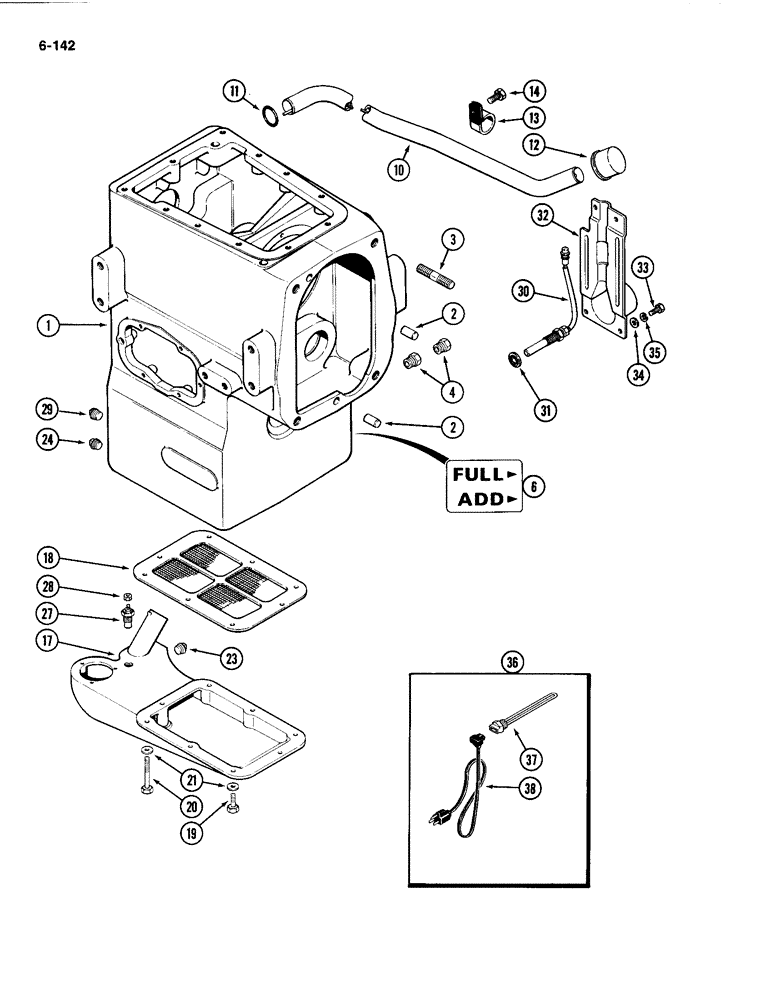

Запчасти Case IH 4494 (6-142) - TRANSMISSION HOUSING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A157247
HOUSING
- transmission
1шт.
Prior to Transmission Serial No. 16258468
1шт.
1
A179576
TRANSMISSION
HOUSING - transmission
1шт.
Transmission Serial No. 16258468 and after
1шт.
2
A28269
PIN
- dowel, 3/4 x 1-1/4 inch (19 x 32 mm)
2шт.
3
A151866
STUD
- clutch housing, 7/8 NF x 4 inch
4шт.
4
A156111
GAUGE
- sight, oil level
2шт.
6
321-2470
DECAL
- oil level
1шт.
10
A157267
TUBE
- filler, transmission oil
1шт.
11
T13224
O-RING,1.484" ID x 1.762" OD x 0.139"
- filler tube
1шт.
12
A27973
CAP
- breather
1шт.
13
49773
CLAMP
- tube
1шт.
14
113-424
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
1шт.
17
A153931
COVER
- bottom, transmission housing
1шт.
18
A140228
FILTER SCREEN
SCREEN - bottom
1шт.
19
26620
KNIFE
BOLT - hex, 3/8 NC x 1-1/4 inch
1шт.
20
26-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 8
- hex, 3/8 NC x 3-1/4 inch
1шт.
21
A140282
WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk
- hardened
8шт.
23
221-844
PLUG,Hex Soc, 1/2"-14
- square head, drain, 1/2 inch PT
1шт.
24
221-846
PLUG,Hex Soc, 1"-11 1/2
- hex socket, 1 inch PT (With no PTO)
1шт.
27
A154283
SWITCH
- sender, transmission oil temperature
1шт.
28
193-1000
NUT,Keps, w/LW,#10-32
- hex, wire, no. 10-32 keps
1шт.
29
221-844
PLUG,Hex Soc, 1/2"-14
- square head, 1/2 inch PT
1шт.
30
A156902
SENSOR
- transmission speed
1шт.
31
A75995
SEAL
- thread, transmission speed sensor
1шт.
32
A164789
COVER ASSY
COVER - transmission speed sensor
1шт.
33
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
34
195-525
WASHER,3/8", SAE
- flat, 13/32 x 13/16 x 1/32 inch (16 x 21 x 2 mm)
4шт.
35
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
36
A164503
HEATER ASSY.
HEATER KIT - tranmission oil
1шт.
37
NSS
NOT SOLD SEPARAT
ELEMENT - heater, transmission oil
1шт.
38
A48171
HARNESS
CORD - heater element, 60 inch (1524 mm), transmission oil
1шт.
REF 38 ALL OTHER BOOKS SHOW THAT THIS IN IN THE HEATER KIT.
1шт.
Выбрано товаров: 33
