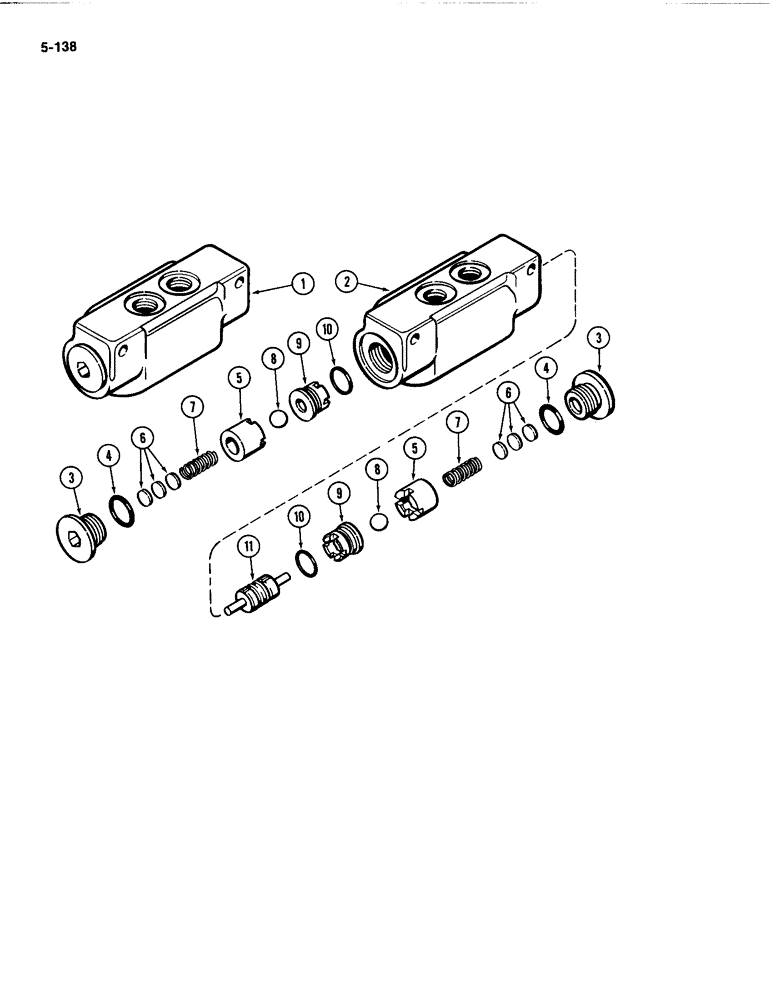

Запчасти Case IH 4494 (5-138) - REAR STEERING CHECK VALVE (05) - STEERING

1

A161709

VALVE

ASSEMBLY - check, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order P/N A161709)

1шт.

3

A47714

PLUG

- valve end, Includes: Ref. 4

2шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 ID x 0.764 inch width (23 x ID x 19 mm width)

2шт.

Part of Valve Repair Kit, P/N A47715

1шт.

5

A47711

SLEEVE

- valve, Includes: Ref. 6 - 10

2шт.

6

NSS

NOT SOLD SEPARAT

SHIM - valve

1шт.

Part of Valve Repair Kit, P/N A47715

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - sleeve

1шт.

Part of Valve Repair Kit, P/N A47715

1шт.

8

211212

BALL - sleeve spring, 0.437 inch (11 mm) diameter

2шт.

Part of Valve Repair Kit, P/N A47715

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - valve

2шт.

Part of Valve Repair Kit, P/N A47715

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- seat

2шт.

Part of Valve Repair Kit, P/N A47715

1шт.

11

A47709

VALVE

SHUTTLE - valve

1шт.

A47715

SEAL

KIT - valve repair, Includes: Ref. nos. 4, 6, 7, 8, 9 and 10

1шт.
