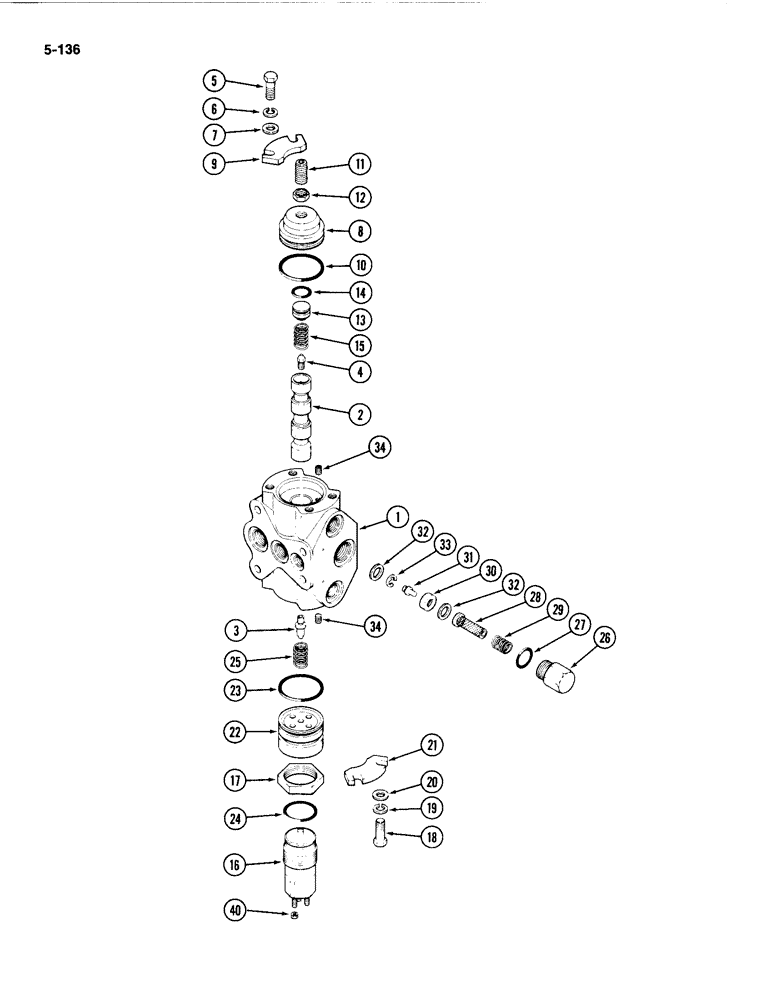

Запчасти Case IH 4494 (5-136) - REAR STEERING CONTROL VALVE (05) - STEERING

A185417

VALVE

ASSEMBLY - rear steering, Includes Ref. 1 - 34, (replaces A187035)

1шт.

A185417

VALVE

ASSEMBLY - rear steering (replaces A145924), Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - assembly - valve (Order assembly), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order assembly)

1шт.

3

NSS

NOT SOLD SEPARAT

NOZZLE - valve spool (Order assembly)

1шт.

4

NSS

NOT SOLD SEPARAT

ORIFICE - valve spool (Order assembly)

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

8

A47511

GLAND

- valve, spool orifice

1шт.

9

A47510

RETAINER

- gland

2шт.

10

R20570

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

- gland

1шт.

11

178-1385

SET SCREW,Hex Soc, 1/2"-20 x 1 1/4"

SCREW - hex socket set, 1/2 NF x 1-1/2 inch

1шт.

12

129-168

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 1/2 inch NF

1шт.

13

A47503

GUIDE

- spring, orifice

1шт.

14

AF10894

O-RING - spring guide

1шт.

15

A47517

SPRING

- orifice

1шт.

16

A47512

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - force control

1шт.

17

A47515

LOCK NUT

- hex, force motor

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

21

A47510

RETAINER

- gland

2шт.

22

A47507

GLAND

ASSEMBLY - nozzle, valve spool

1шт.

23

R20570

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

- outer, nozzle gland

1шт.

24

A59066

O-RING,1.239" ID x 1.379" OD

- inner, nozzle gland

1шт.

25

A47517

SPRING

- nozzle

1шт.

26

A47508

CAP

PLUG - filter

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (19 ID x 2 mm width)

1шт.

28

A187037

FILTER

- valve, green color code

1шт.

28

A47504

FILTER

- valve

1шт.

29

A47514

SPRING

- filter

1шт.

30

A47506

PLATE

- filter

1шт.

31

A47505

PIN

- filter plate

1шт.

32

A47550

SEAL,11.48mm ID x 15.85mm OD x 1.35mm Thk

GASKTER - filter plate

2шт.

33

A31196

CIRCLIP,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

1шт.

34

A47509

ORIFICE

- orifice, filter passage

2шт.

40

129-16

NUT,#8-32

3шт.

A187082

KIT

- valve position centering (Used with A145924 valve)

1шт.

A187029

GLAND - steering valve

1шт.
